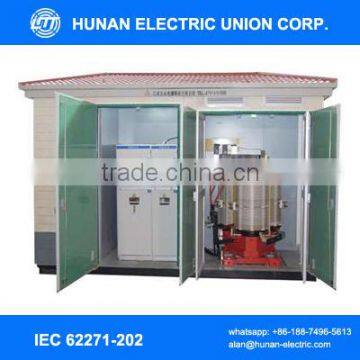

Compact Substation
- Shanghai
- T/T Credit Card
You May Like
Product Description
Service condition | |
Normal Condition
Ambient temperature Indoor -5°C to +40°C Outdoor -10°C to +40°C Humidity 90% Altitude ≤1000m Pollution Level I-Light Level II-Medium Earthquake UBC Zone 3
| Special Condition
Ambient temperature Indoor -15°C to +40°C, -25°C to +40°C Outdoor -10°C to +50°C, -25°C to +40°C -40°C to +40°C Humidity 95%, 98% Altitude ≤2000m, ≤3000m, ≤4000m Pollution Level III-Heavy Level IV-Very Heavy Earthquake UBC Zone 4
K-factor 3, 5, 7, 9, 11, 13, 15, 17
|
Standard code IEC 62271-202 High-voltage/ low-voltage prefabricated substation | |
Ratings | |
IEC
Rated Frequency 50Hz, 60Hz Rated Voltage 3.6 kV – 7.2 kV – 12 kV – 17.5 kV – 24 kV – 36 kV Rated Insulation Level 20kV – 40kV – 60kV – 75kV – 95kV – 125kV – 145kV – 170kV Rated KVA 30kVA – 50kVA – 80kVA – 100kVA – 125kVA – 160kVA – 200kVA – 250kVA – 315kVA – 400kVA – 500kVA – 630kVA – 800kVA – 1000kVA – 1250kVA – 1600kVA – 2000kVA – 2500kVA – 3150kVA
| |
