ce certified metal lathe ck6432 small metal lathes for sale
Item |
Project name |
Technical paramaters |
CK6432A | ||
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ360 |
Max.swiming over pallet(mm) |
Φ150 |
|
Max.the workpiece length(mm) |
450 |
|
|
Main transmission |
Main transmission form |
Independent spindle, stepless frequency conversion timing |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
100~2500 |
|
Spindle centering axial taper |
MT6 |
|
Spindle bore(mm) |
60mm |
|
Chuck size(mm) |
200mm |
|
Main motor power(kw) |
4kw |
|
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
|
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
100 |
|
Taper of tailstock quill |
MT4 |
|
|
Tool post |
Standard accessories |
4 electric tool post |
Opinional accessories |
gang-type tool carrier or 6 tool post |
|
|
Repeat positioning accuracy(mm) |
0.008 |
Section of turning tool(mm) |
20*20 |
|
|
Size and weight |
The size of the machine (length*width*height)(mm) |
1815*1165*1800 |
Net weight of the machine(kg) |
1450 |
Economic configuration
manual 3 jaw chuck; 4 station tool post;
auto micro computer controlled lubrication; water cooling;lighten system

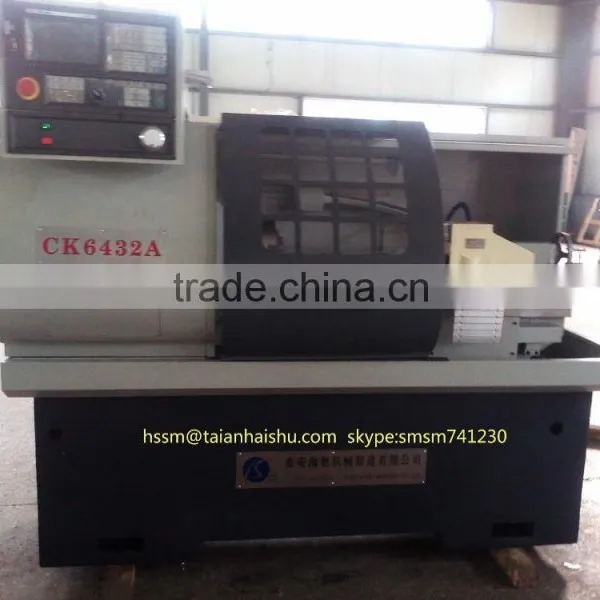

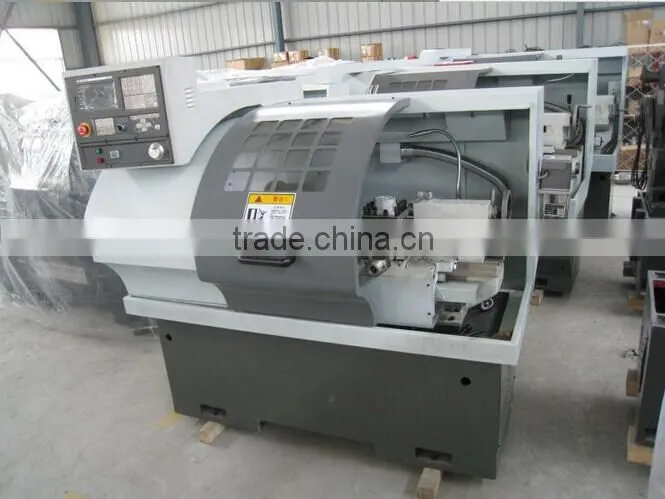

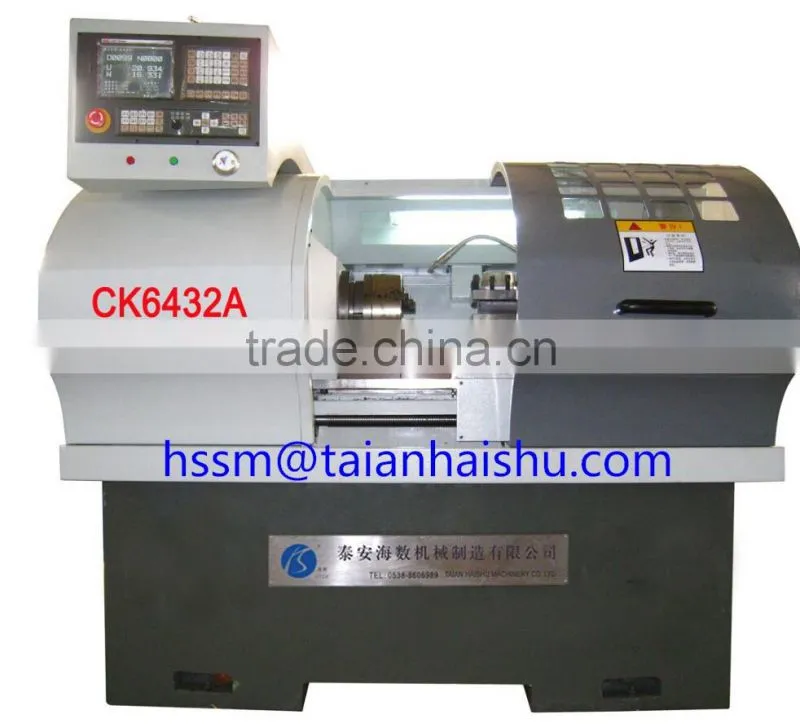

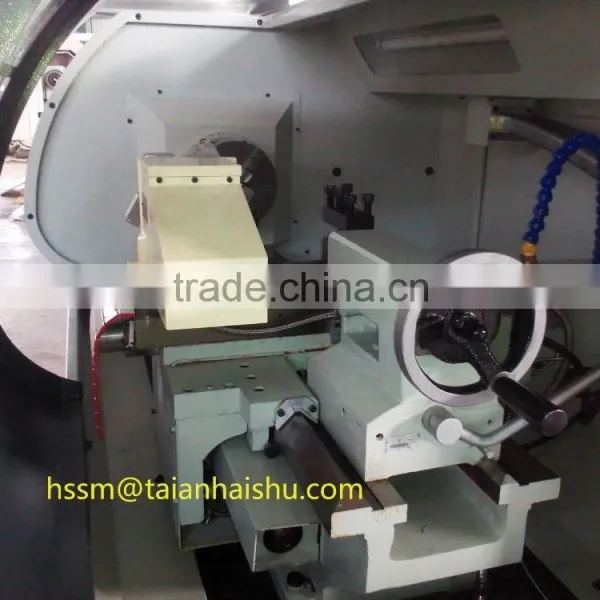

Low price ck6432 cheap cnc machine picture
cnc lathe machine

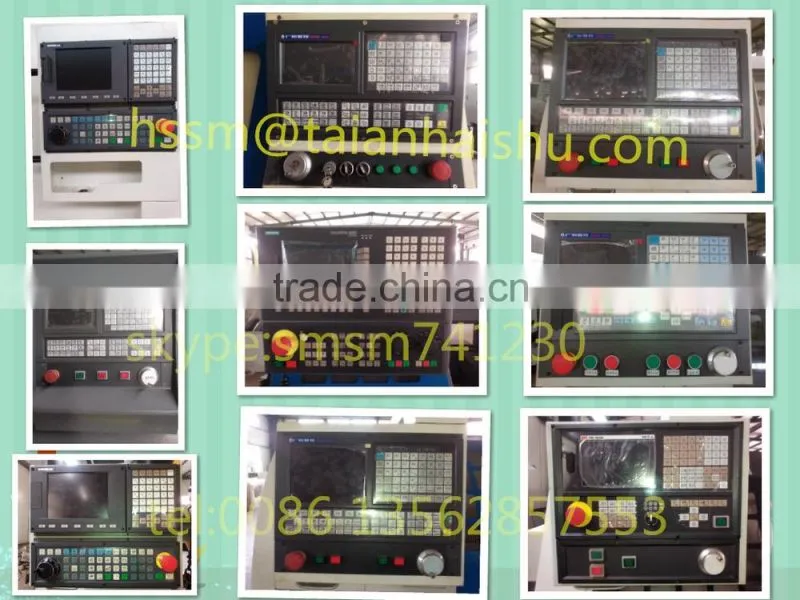

1.System:GSK928TD-L, servo motor and drive

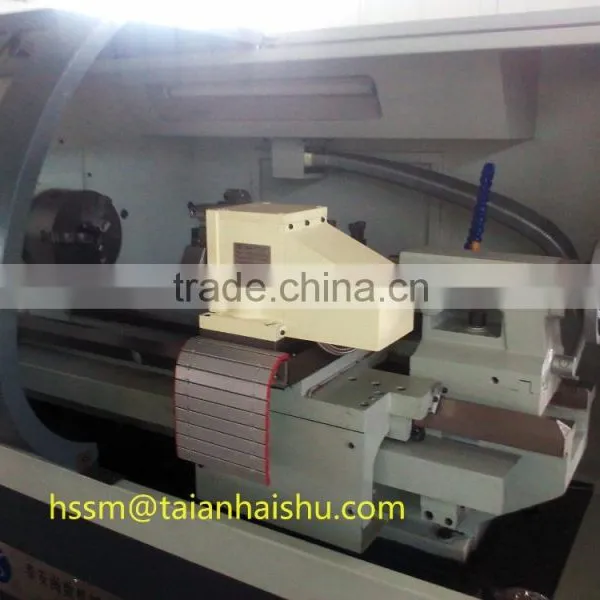

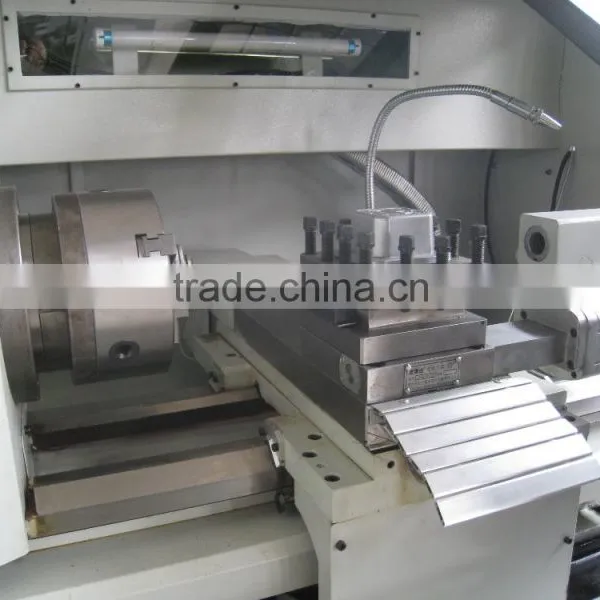

2.Manual 3-jaw chuck, 4-station electric tool post.
3.Manual tailstock, Semi-Rugged

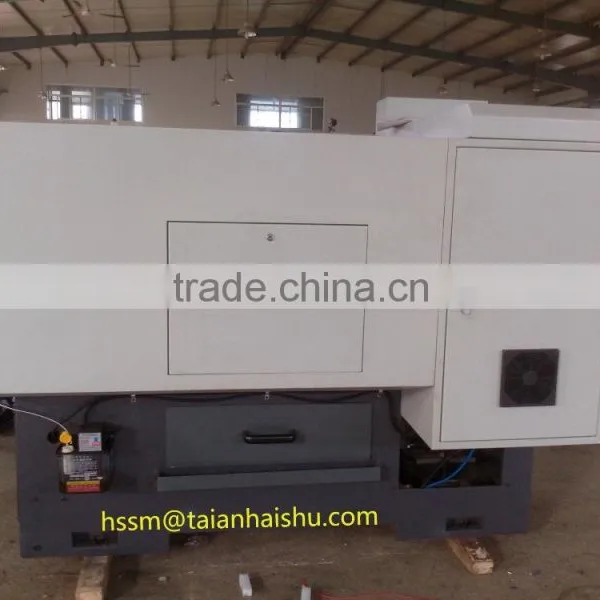

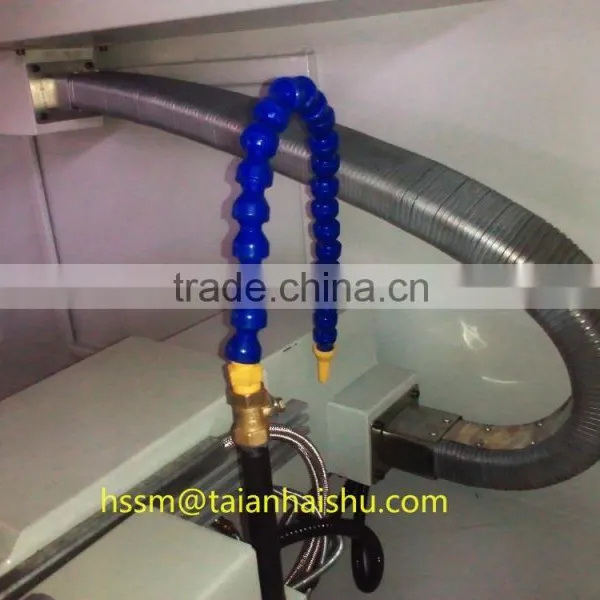

4.Cooling system,; metal plate cover and double protective door
5.Lighten system standard T8 fluorescent lamp ;
6.Automatic lubrication system;
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine.
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in ce certified metal lathe ck6432 small metal lathes for sale, welcome to leave a message or send the inquiry to understand the details of machine.
