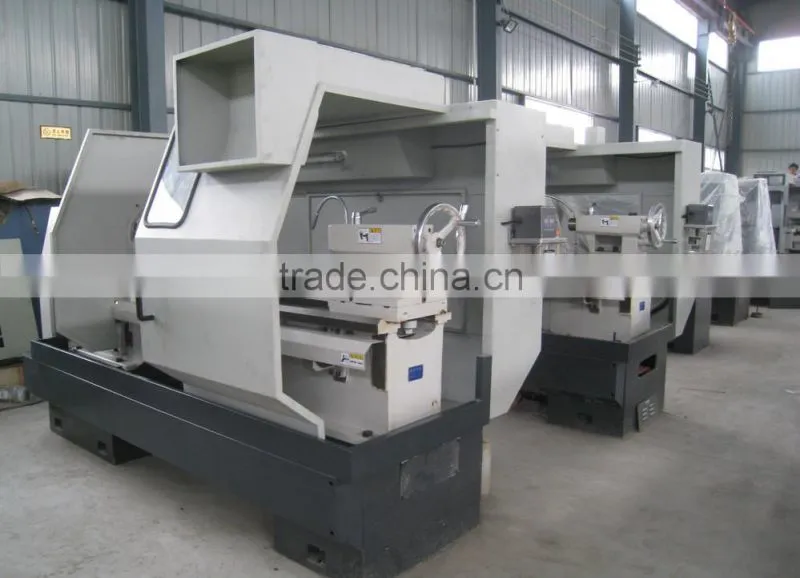

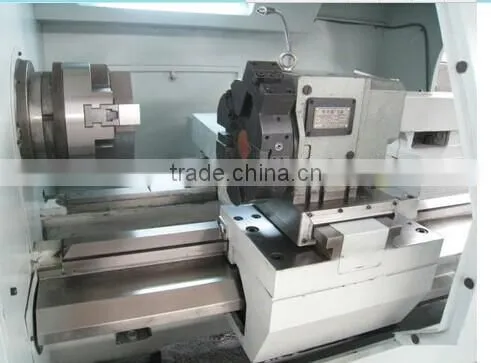

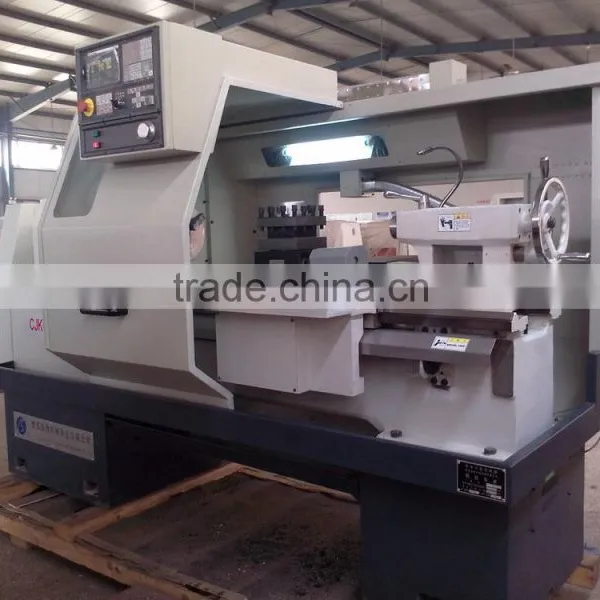

small metal lathes for sale CJK6150 ce certified metal lathe
Main features
1. Spindle brake way by electric brake
2.Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor
3.Rotary various workpiece surface automatically turning,precision maching
4.The carriage adopts plastic paste processing.wear small,high precision,long life.
5.Electronic hand wheel equipped,easy operation.
6.High efficiency,high precision
Standard configuration:

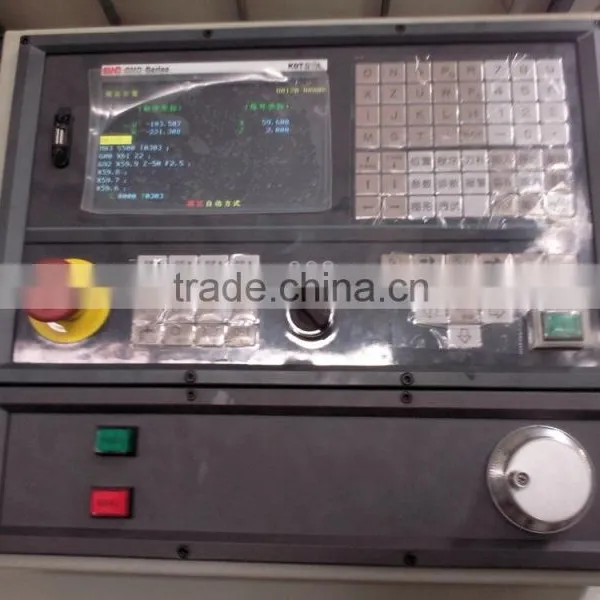

1.CNC system:GSK928

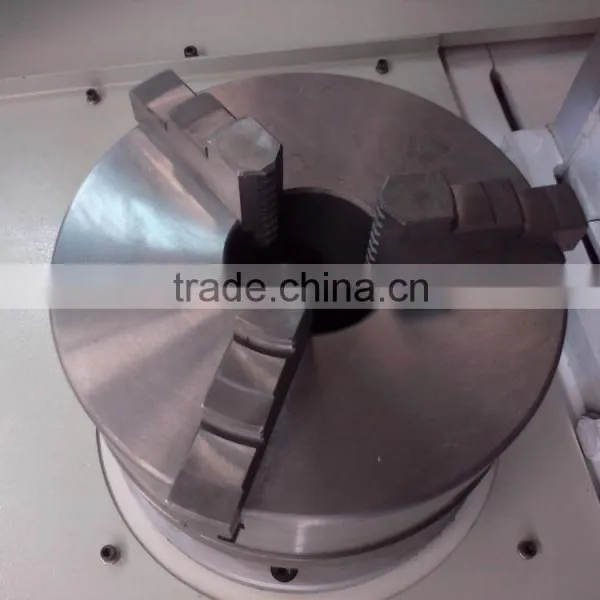

2.Manual chuck(250mm)

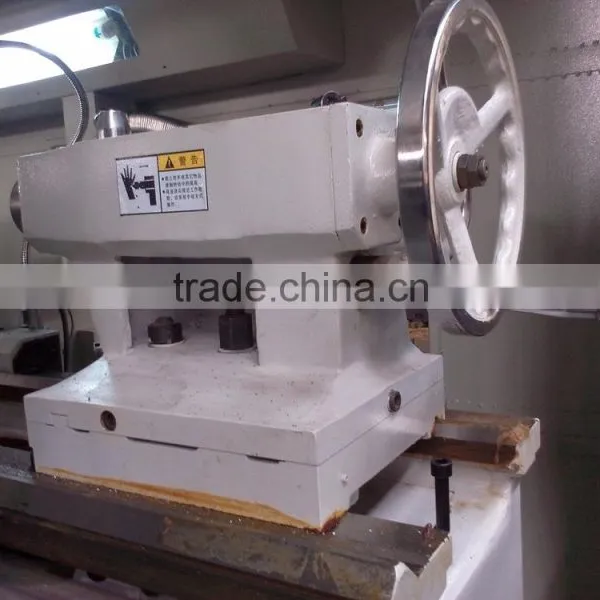

3.Manual tailstock

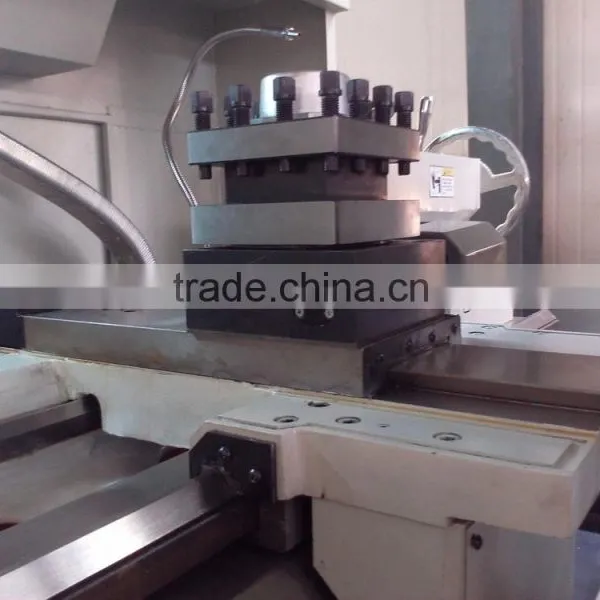

4.Vertical four-station electric turret
5.Automatic lubrication system
6.Turning the cooling system
Select configure:
1.CNC system:GSK 980,KND,Siemens,Fanuc,etc
2.Manual chuck(320mm)Hydraulic chuck(solid and hollow),pneumatic chuck

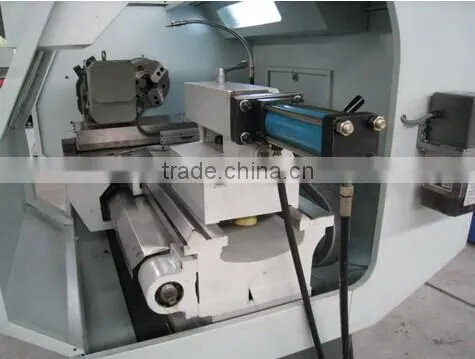

3.Hydraulic tailstock,pneumatic tailstock
4.Automatic feeder
5.Horizontal six-station turret,eight-station turret,tool row
Specifications
Max swiming over the bed 500mm
Max swiming over pallet 300/290mm
Max the workpiece length 750/1000mm
Bed foot structure Overall bed foot/Separate bed foot
Lathe bed width 400/360mm
Main transmission form Independent spindle,Three gears
Speed mode Frequency stepless speed
Range of spindle speed 150-2000/36-1600r/min
The form of the spindle head 8-D/8-A2
Hole diameter of spindle 82/70mm
Spindle centering axial taper 1:4
Spindle taper 1:20
Chuck diameter 250(320)/250mm
Main motor power 7.5kw
Turret maximum stroke X:320/300mm Z:760/1020mm
Fast-moving feed X:6000mm/min Z:8000mm/min
Repeat posetioning accuracy X:0.01mm Z:0.015
Workpiece accuracy IT6-IT7
Workpiece surface roughness Ra1.6
Diameter of tailstock quill 75/70mm
Tailstock quill stroke 180/120mm
Taper of tailstock quill MT5
Repeat positioning accuracy 0.008mm
Section of turning tool 25mmx25mm
The size of the machine 2650/3200x1600x1700/2300/2600x1500x1600(LxWxH)
Net weight of the machine 3200/3500
If you are interested in ce certified metal lathe CJK6150 small metal lathes for sale and cheap new lathe, welcome to leave a message or send the inquiry to understand the details of machine.
