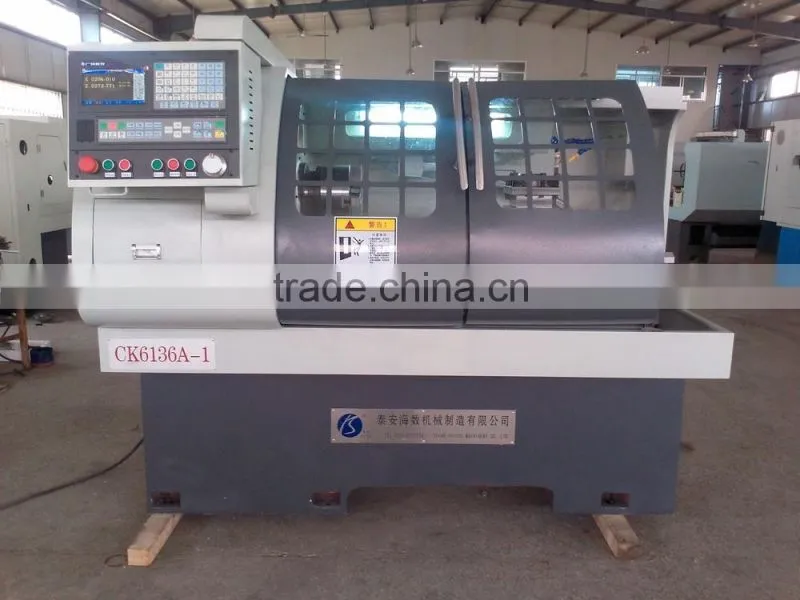

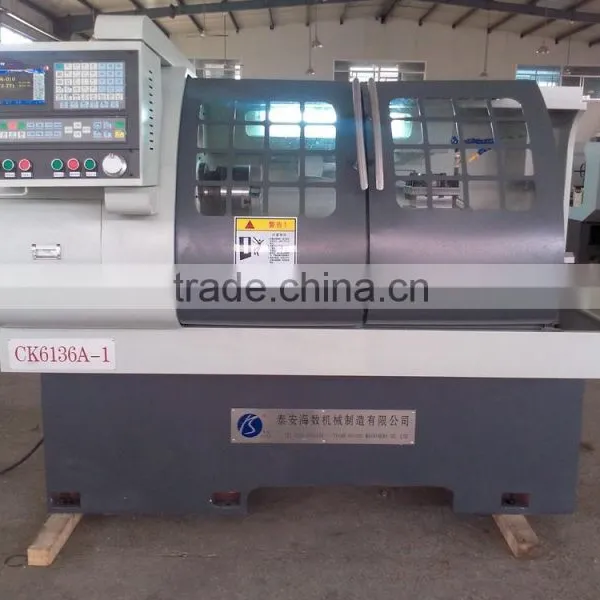

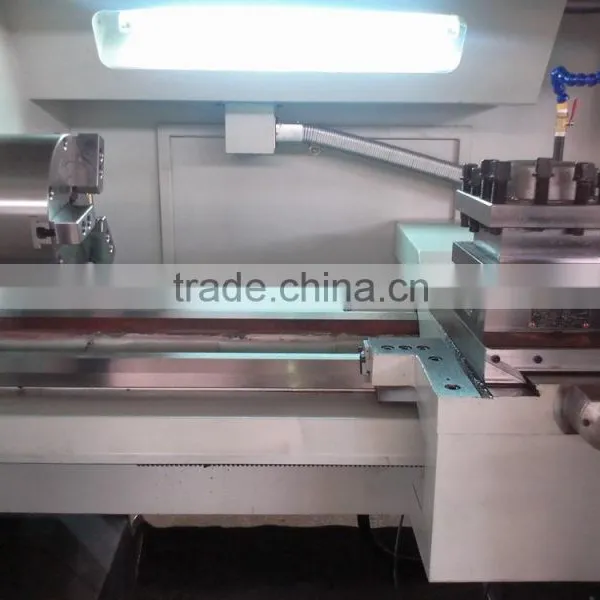

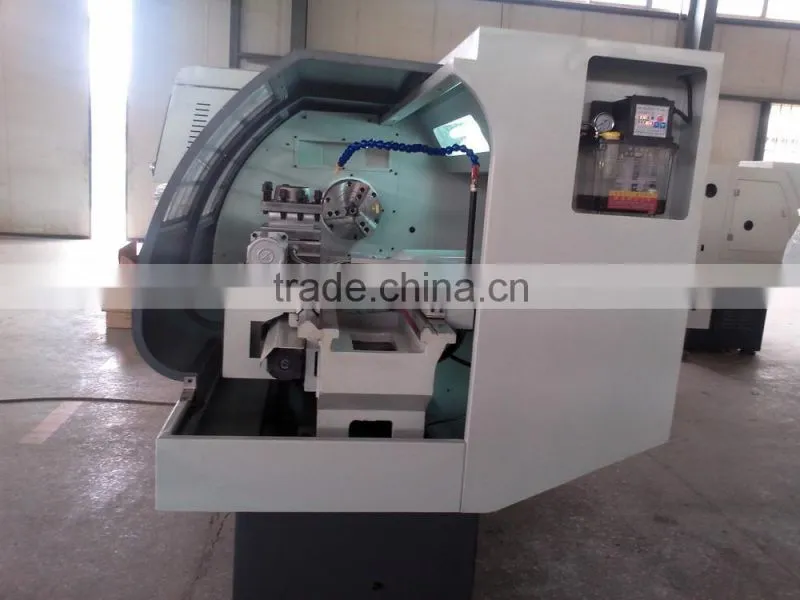

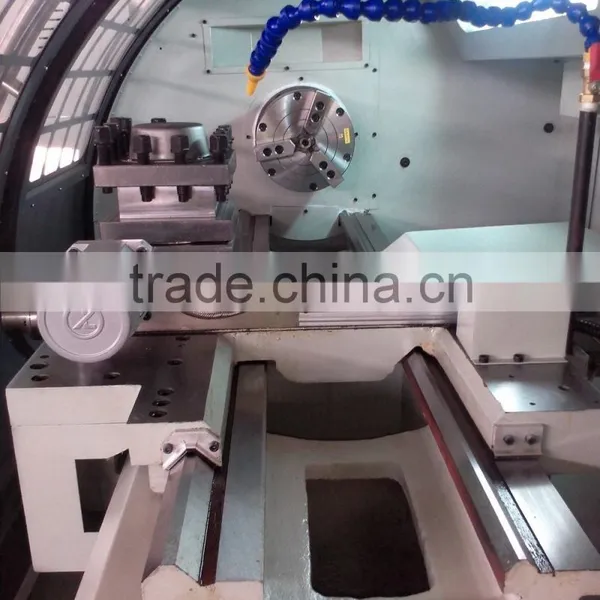

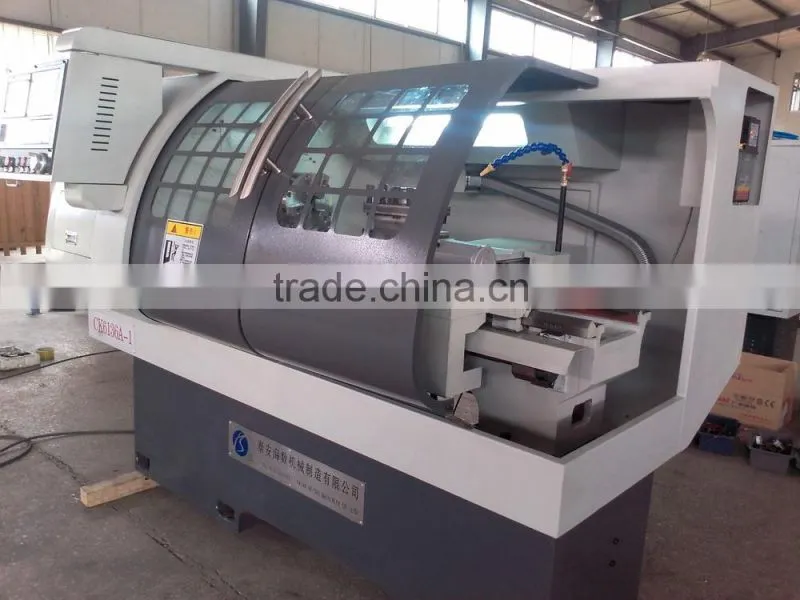

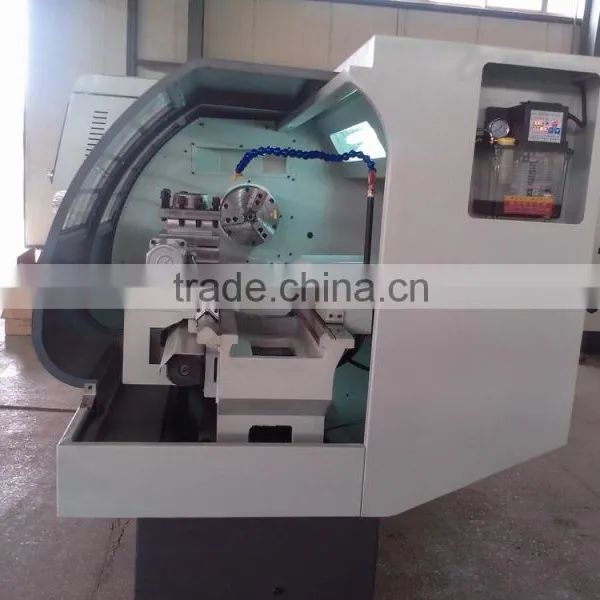

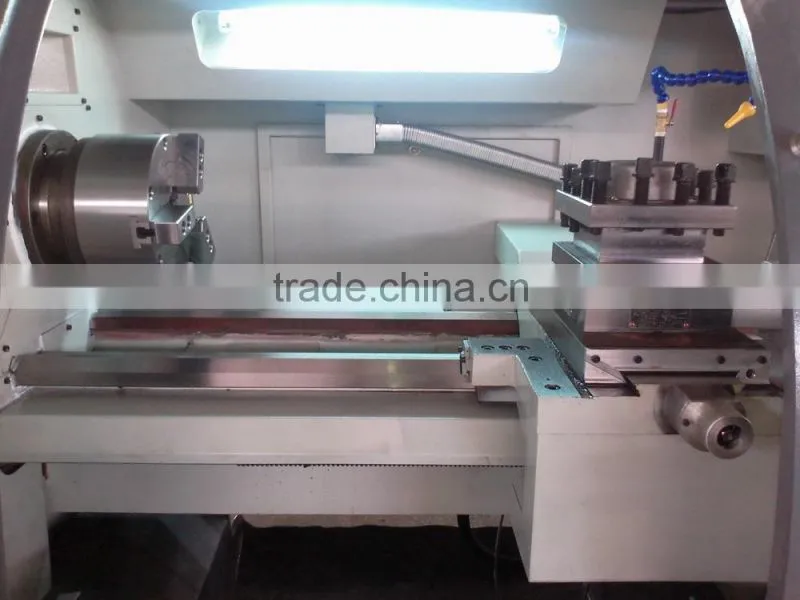

ce certified metal lathe CK6136A-1
1,Technical parameters
Items |
Technical parameters |
Max. turning diameter over bed |
Φ360mm |
Max. turning diameter over slide |
Φ210mm |
Max.turning length |
650mm |
Spindle speed range |
150-2000rpm |
Diameter of spindle bore |
Φ60mm |
Taper of spindle bore |
MT6 |
Number of turret station |
4/6/8/ Or row of knife |
Motor minimum setting unit |
(Z) Longitudinal 0.001mm, (X) Transverse 0.001mm |
Arbor fast forward speed |
(Z) Longitudinal 8 m/min, (X) Transverse 6 m/min |
Taper of tailstock sleeve |
MT4 |
Quill travel |
120mm |
Power of main motor |
4KW |
Overall dimensions (L × W × H) |
2050 mm×1400 mm×1650mm |
Net weight |
1700kg |
2,configuration
Economic Configuration:
1. Singlespindle
2. Frequency conversion stepless speed regulation

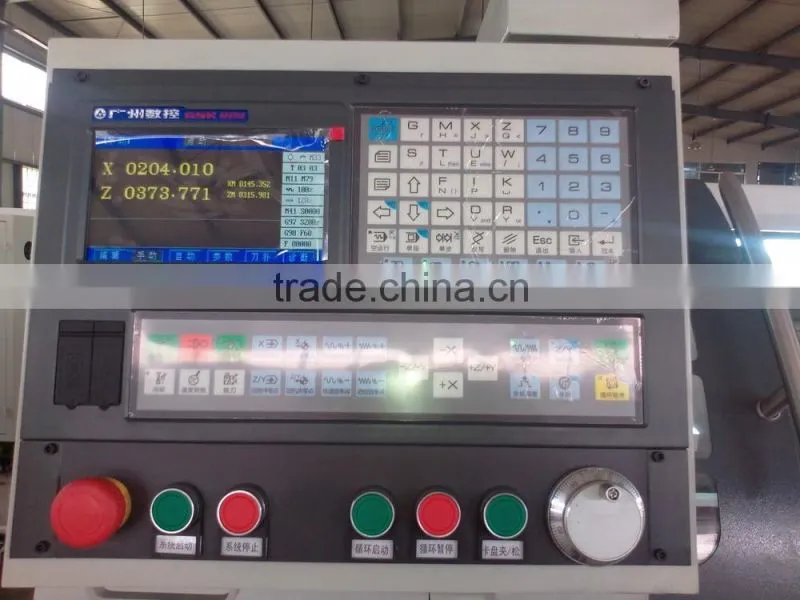

3. CNC system: GSK928, Servo motor for X Z, Servo driven

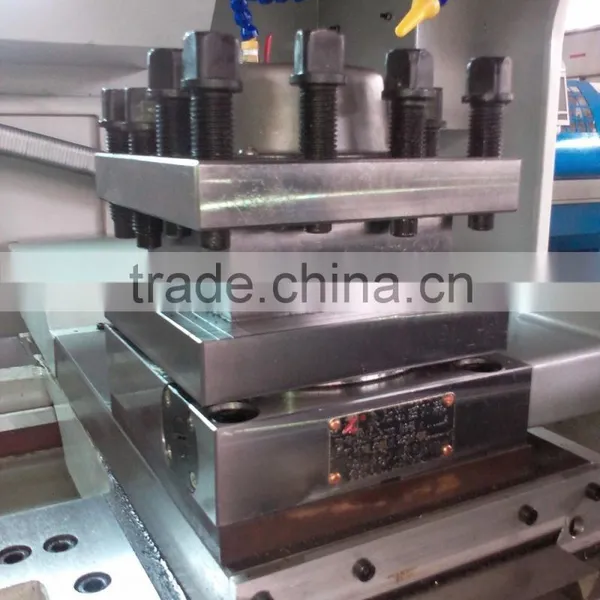

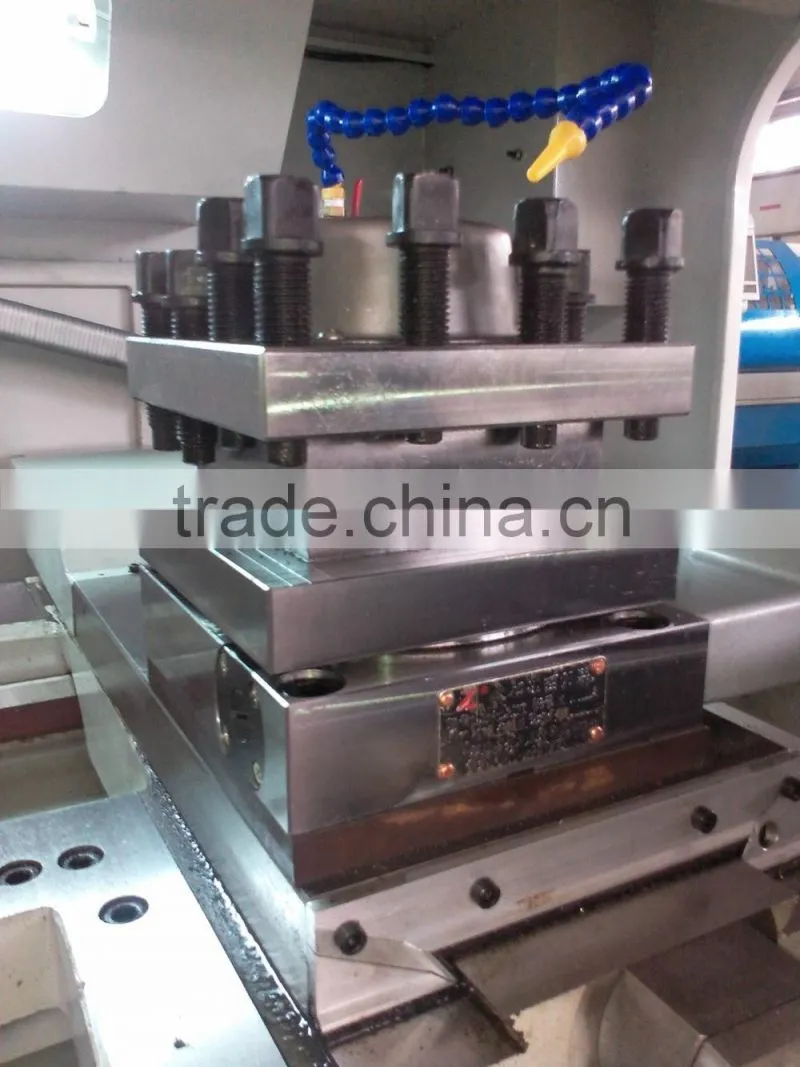

4. 4-position electrical tool carrier

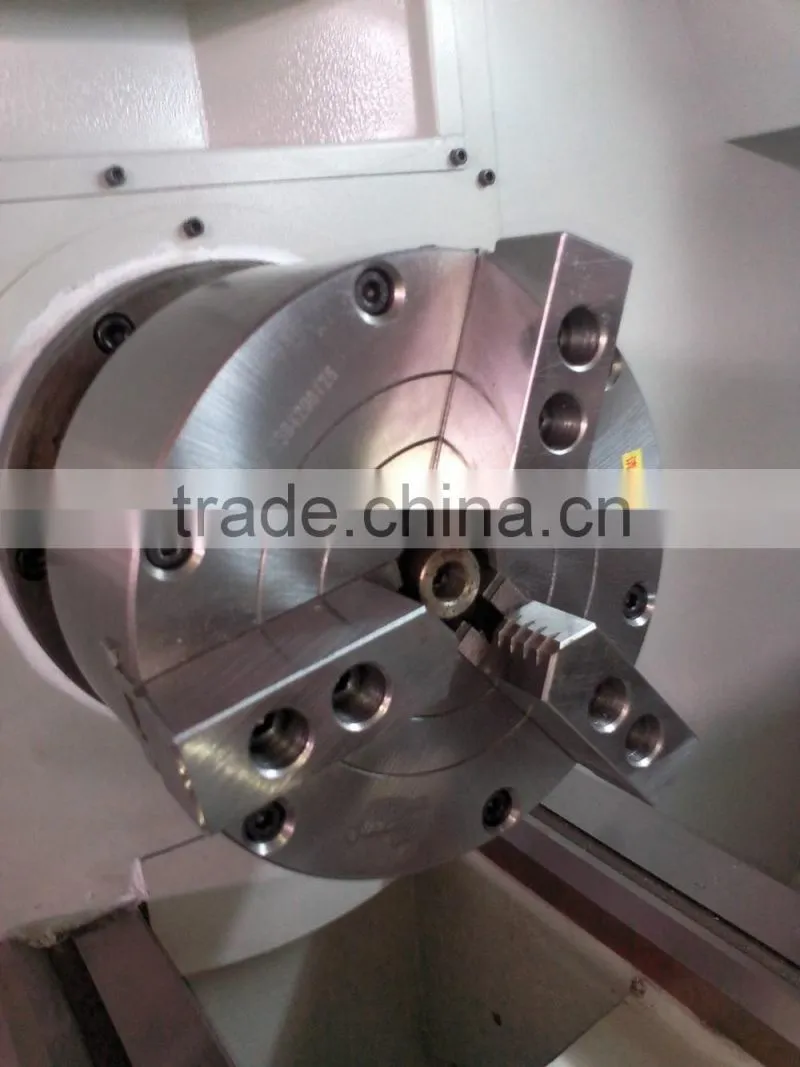

5. Manual 3-jaw chuck,manual tailstock
6. Automatic electronic pump lubrication, Lighting system, Cooling system

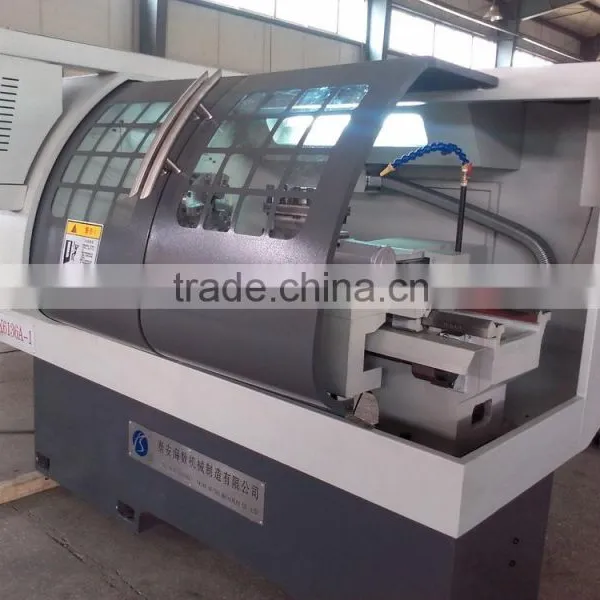

7. Fully enclosed protection
Optional configuration:
GSK, Siemens, Fanuc and KND cnc controller
Hydraulic chuck or pneumatic chuck, 4 Jaw chuck, Softy Jaw chuck
6/8-station turret
Automatic Bar feeding
Automatic chip conveyor
Semi-closed protection
3Usage Suitable for the precision machining of steel, cast iron, nonferrous metals and other materials.
If you are interested in ce certified metal lathe CK6136A-1, welcome to leave a message or send the inquiry to understand the details of machine.
