Home > Transportation > Forklifts & Parts > Forklift > 1200kg 2 Stage Electric Pallet Stacker CDD12-030

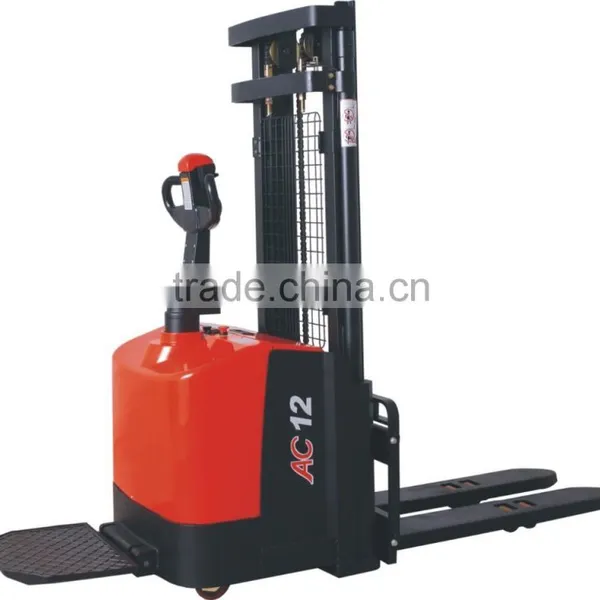

1200kg 2 Stage Electric Pallet Stacker CDD12-030
US$ 1,000 - 10,000
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Yi-Lift
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3000mm 1200kg 2 Stage Electric Pallet Stacker CDD12-030US$ 1,000 - 10,000MOQ: 2 Pieces -
1400-3300mm Electric Stacker CDD14-930US$ 1,000 - 10,000MOQ: 1 Piece
-
AC Driving System 3300mm 1400kg Full Free 2-Stage Electric Pallet Stacker CDD14-980US$ 1,000 - 10,000MOQ: 2 Pieces
-
Full Electric Reach StackerNegotiableMOQ: 1 Piece
-
Full Electric StackerNegotiableMOQ: 4 Pieces
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Yi-Lift
Model Number
CDD12-030 series
Type
Powered Pallet Truck
Power Souce
DC Motor
Rated Loading Capacity
1200kg
Max. Lifting Height
1400mm-3300mm
Min. Lifting Height
85mm
Fork Length
1150mm
Fork Width
1150/185/55mm
Overall Dimensions
1993*812*1980mm
Certification
ISO9001
After-sales Service Provided
No overseas service provided
1200kg 2 stage Electric Pallet Stacker CDD12-030
Feature |
|||
| 1 | Model | CDD12 | |
| 2 | Configuration No. | 030 | |
| 3 | Type | Narrow legs | |
| 4 | Mast type | 2-Stage STD | |
| 5 | Load capacity | kg | 1200 |
| 6 | Load center | mm | 600 |
| 7 | Wheel base | mm | 1270 |
| 8 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 9 | Wheels type | PU | |
| 10 | Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 | |
| Dimension | |||
| 11 |
Standard lift height |
mm | 3000 |
| 12 |
Lowered fork height |
mm | 85 |
| 13 | Fork size(length/width/thickness) | mm | 1150/185/55 |
| 14 |
Overall length |
mm | 1993/2413 |
| 15 | Overall width | mm | 812 |
| 16 | Max extend height | mm | 3500 |
| 17 | Mast lowered height | mm | 1980 |
| 18 | Min.Turning radius | mm | 1525/1935 |
| 19 | 800×1200,1200) Min.Aisle width for pallets 800×1200 |
mm | 2130/2520 |
| 20 | (1000×1200,1200) Min.Aisle width for pallets 1000×1200 |
mm | 2160/2540 |
| 21 | Min.ground clearance | mm | 30 |
| Performance | |||
| 22 |
Travel speed,laden/unladen |
km/h | 5/5 |
| 23 |
Lift speed,laden/unladen |
mm/s | 130/230 |
| 24 |
Lowering speed,laden/unladen |
mm/s | 130/230 |
| 25 |
Gradeability,laden/unladen |
% | 5/7 |
| Electrical configuration | |||
| 26 |
Drive motor / Lift motor /Steering motor |
KW | AC1.5/DC3/DC0.15 |
| 27 | Battery voltage | V | 24 |
| 28 | Battery capacity | Ah | 210 |
| 29 | Brake | Electromagnetic / Regenerative |
|
| 30 | Controller | CURTIS 1230 | |
| Weight | |||
| 31 | Battery weight | kg | 190 |
| 32 | Service weight with battery | kg | 1110 |
