Home > Transportation > Forklifts & Parts > Forklift > AC Driving System 3300mm 1400kg Full Free 2-Stage Electric Pallet Stacker CDD14-980

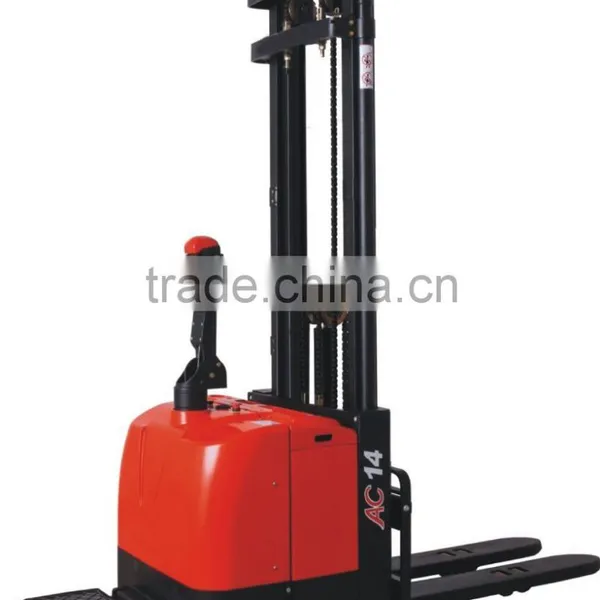

AC Driving System 3300mm 1400kg Full Free 2-Stage Electric Pallet Stacker CDD14-980

Name: AC Driving System 3300mm 1400kg Full Free 2-Stage Electric Pallet Stacker CDD14-980
Brand: Yi-Lift
SKU: 128431293

US$ 1,000 - 10,000 MOQ: 2 Pieces

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Yi-Lift

Changzhou Yi-Lift Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghi

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Yi-Lift

Model Number CDD14-980 series

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1400kg

Max. Lifting Height 3500mm

Min. Lifting Height 85mm

Fork Length 1150mm

Fork Width 1150/185/55mm

Overall Dimensions 2050**856*2080mm

Certification ISO9001

After-sales Service Provided No overseas service provided

3300mm 1400kg Full free 2-Stage Electric Pallet Stacker CDD14-980

	Feature
1	Model		CDD14
2	Configuration No.		980
3	Type		Narrow legs
4	Mast type		Full free 2-Stage
5	Load capacity	kg	1400
6	Load center	mm	600
7	Wheel base	mm	1325
8	Operating type		Walkie / Stand On
	Wheels
9	Wheels type		PU
10	Wheel quantity Driving wheel/Balance wheel/Bearing wheel		1/2/4
	Dimension
11	Standard lift height	mm	3000
12	Lowered fork height	mm	85
13	Fork size(length/width/thickness)	mm	1150/185/55
14	Overall length	mm	2050/2470
15	Overall width	mm	856
16	Max extend height	mm	3500
17	Mast lowered height	mm	2080
18	Min.Turning radius	mm	1580/1990
19	(800×1200,1200) Min.Aisle width for pallets 800×1200	mm	2180/2580
20	(1000×1200,1200) Min.Aisle width for pallets 1000×1200	mm	2210/2600
21	Min.ground clearance	mm	30
	Performance
22	Travel speed,laden/unladen	km/h	5/5
23	Lift speed,laden/unladen	mm/s	130/230
24	Lowering speed,laden/unladen	mm/s	130/230
25	Gradeability,laden/unladen	%	5/7
	Electrical configuration
26	Drive motor / Lift motor /Steering motor	KW	AC1.5/DC3/DC0.15
27	Battery voltage	V	24
28	Battery capacity	Ah	280
29	Brake		Electromagnetic / Regenerative
30	Controller		CURTIS 1230
	Weight
31	Battery weight	kg	235
32	Service weight with battery	kg	1330
