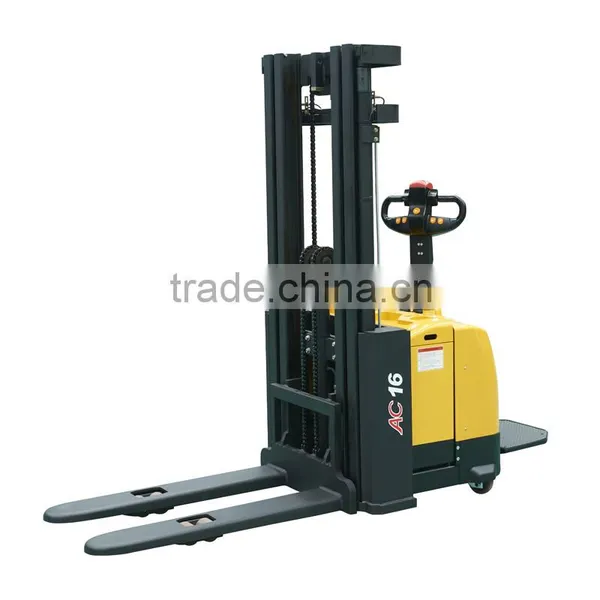

Full Electric Stacker With EPS CDY-16/20

Full Electric Stacker With EPS CDY-16/20 thumbnail-1
Full Electric Stacker With EPS CDY-16/20 photo-1
US$ 1,000 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
yi-lift
Model Number:
CDY-16/20
Contact Supplier Request Quote Chat Now
Changzhou Yi-Lift Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name yi-lift
Model Number CDY-16/20
After-sales Service Provided No overseas service provided
Condition New

Full Electric Stacker with EPS CDY-16/20


Capacity:1600/2000kg,Lifting Height:1400-5800mm
1.Electronic power steering system
2.Two-way magnetic valve,three drop speed mode.
3.Drive unit floating bodies with patent design.
4.AC driving system,no carbon brush,maintenance free.
5.USA CURTIS driving controller.
6.Automatic lifting limit,proximity switch.
7.Cuve automatic deceleration devices,more safer.
8.Goods high position,vehicle automatic deceleration.
9.Stepless speed control system,safe and quiet.



Full Electric Stacker with EPS CDY-16/20

Model   CDY16 CDY16-F CDY16-FH CDY20
Mast type    Double-Stage Full free 3-stage Full free 3-stage Double-Stage
Load capacity kg 1600 1600 1600 2000
Load center mm 600 600 600 600
Wheel base mm 1325 1375 1375 1325
Operating type    Walkie  /  Stand On   Walkie  /  Stand On   Walkie  /  Stand On   Walkie  /  Stand On
Wheels type   PU PU PU PU
Standard lift height mm 2500/3000/3300/3600

3700/3900/4200/

4500/4700/5000

 5300/5500/5800

2000/2500/3000/

3300/3600/4000
Lowered fork height mm 90 90 90 90
Fork size(length/width/thickness) mm 1150(1220)/185/55 1150(1220)/185/55 1150(1220)/185/55 1150(1220)/185/55
Overall length mm 2050/2470 2105/2525 2105/2525 2050/2470
Overall width mm 856 957 957 856
Mast lowered height mm 1765/1980/2135/2335

1800/1900/1985/

2085/2135/2235

 2520/2590/2690 1185/1535
Min.Turning radius mm 1580/1990 1630/2040 1630/2040 1580/1990
Min.Aisle width for pallets 800×1200 mm 2180/2580 2230/2625 2230/2625 2180/2580
Min.ground clearance mm 30 30 30 30
Travel speed,laden/unladen km/h 5/5 5/5 5/5 4/4.5
Lift speed,laden/unladen mm/s 130/230 130/230 130/230 90/170
Lowering speed,laden/unladen mm/s 130/230 130/230 130/230 80/170
Gradeability,laden/unladen % 5/7 5/7 5/7 5/7
Drive motor / Lift motor /Steering motor  KW AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15 AC1.5/DC3/DC0.15
Battery voltage V 24 24 24 24
Battery capacity Ah 280 280 280 280
Brake   Electromagnetic / Regenerative Electromagnetic / Regenerative Electromagnetic / Regenerative Electromagnetic / Regenerative
Battery weight kg 235 235 235 235
Service weight with battery kg 1240 1578 1610 1240







Full Electric Stacker with EPS CDY-16/20Full Electric Stacker with EPS CDY-16/20Full Electric Stacker with EPS CDY-16/20
