Reach Stacker CDYR12/15

Reach Stacker CDYR12/15 thumbnail-1
Reach Stacker CDYR12/15 thumbnail-2
Reach Stacker CDYR12/15 photo-1

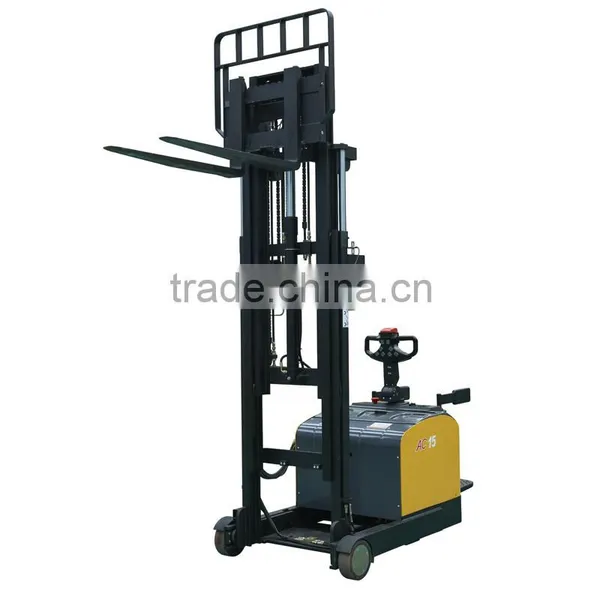

Reach Stacker CDYR12/15 photo-2
US$ 1,000 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
yi-lift
Model Number:
CDYR12/15
Contact Supplier Request Quote Chat Now
Changzhou Yi-Lift Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name yi-lift
Model Number CDYR12/15
After-sales Service Provided No overseas service provided
Condition New

Reach Stacker CDYR12/15


Capacity:1200/1500kg,Lifting Height:1400-4500mm
1.Fork tilt,double oil cylinder more smoothly.
2.Electro-hydraulic integrated control,multi-function handle.
3.Electronic power steering system,light and low noise.
4.Two-way magnetic valve,three drop speed mode.
5.AC Driving system,no carbon brush,maintenance free.
6.Electromagenetic,regenerative braking system.
7.Automatic lifting limit,proximity switch,long lift.

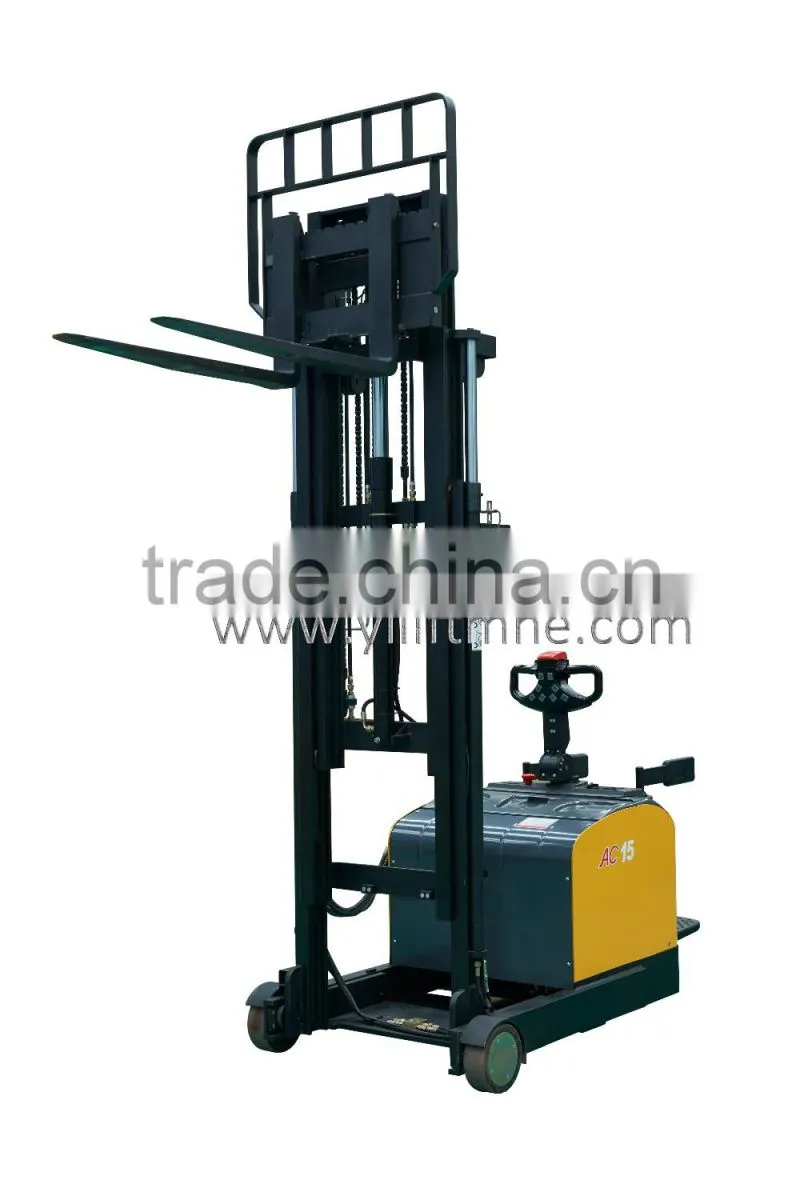

Reach Stacker CDYR12/15

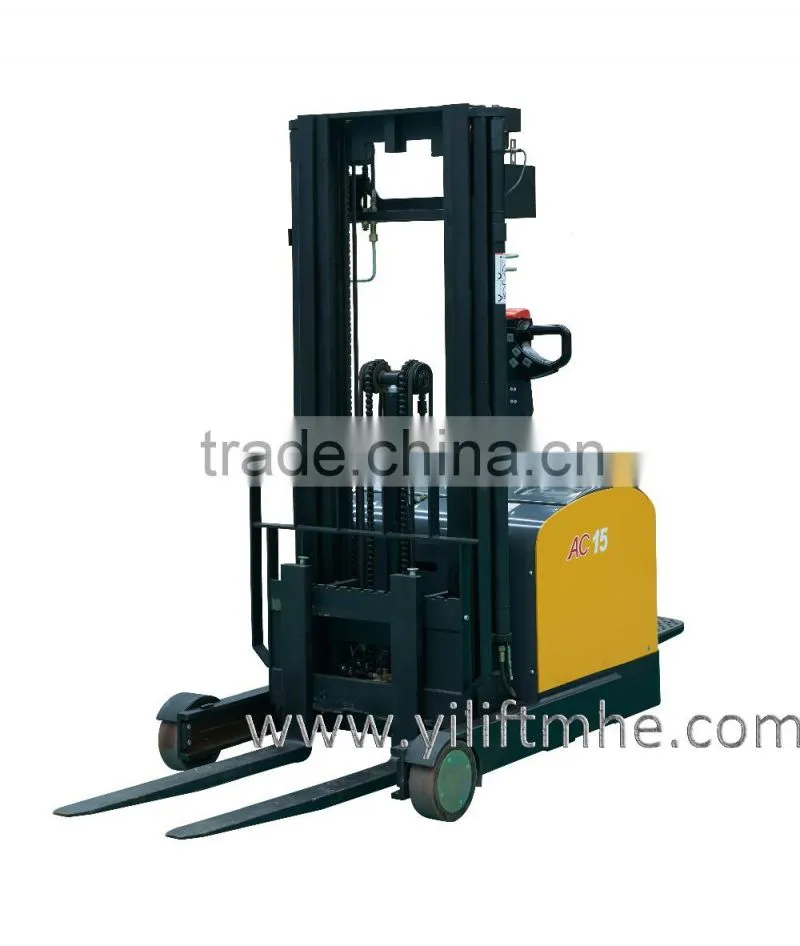

Reach Stacker CDYR12/15

Model   CDYR12/15 CDYR12/15
Type   Reach Reach
Mast type    2-Stage STD Full free 3-Stage
Load capacity kg 1200/1500 1200/1500
Load center mm 500 500
Wheel base mm 1332 1332
Wheels
Wheels type   PU PU
Wheel quantity
Driving wheel/Balance wheel/Bearing wheel 		  1/0/2 1/0/2
Dimension
Reach distance mm 0-425 0-425
Standard lift height mm 1400/2000/2500/3000/
3300/3600/4000		 3700/3900/4200/4500
Max extend height mm 2235/2835/3335/3835/
4135/4435/4835		 4580/4780/5080/5380
Mast lowered height mm 1490/1790/2040/2290/
2440/2590/2790		 1832/1898/1998/2098
Lowered fork height mm 55 55
Fork size(length/width/thickness) mm 1070/100/40 1070/100/40
Overall length mm 2440/2896 2440/2896
Overall width mm 1083 1083
Outside width between forks mm 200-755 200-755
Tilt of fork(F/B) Grad 3/5 3/5
Min.Turning radius mm 1596/2040 1596/2040
Min.Aisle width for pallets 800×1200 mm 3023/3456 3023/3456
Min.Aisle width for pallets 1000×1200 mm 3044/3472 3044/3472
Min.ground clearance mm 60 60
Performance
Travel speed,laden/unladen km/h 5/5.5 5/5.5
Lift speed,laden/unladen mm/s 130/230 130/230
Lowering speed,laden/unladen mm/s 130/230 130/230
Gradeability,laden/unladen % 3/5 3/5
Electrical configuration
Drive motor / Lift motor /Steering motor  KW AC1.5/DC3.0/DC0.15 AC1.5/DC3.0/DC0.15
Battery voltage V 24 24
Battery capacity Ah 280 280
Brake   Electromagnetic / Regenerative Electromagnetic / Regenerative
Controller   CURTIS CURTIS
Weight
Battery weight kg 235 235
Service weight with battery kg 2100 2200





Reach Stacker CDYR12/15Reach Stacker CDYR12/15Reach Stacker CDYR12/15
