Scissor Fork Electric Stacker CDYR12/15

Scissor Fork Electric Stacker CDYR12/15 thumbnail-1
Scissor Fork Electric Stacker CDYR12/15 photo-1
US$ 1,000 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
yi-lift
Model Number:
CDYR12/15
Contact Supplier Request Quote Chat Now
Changzhou Yi-Lift Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name yi-lift
Model Number CDYR12/15
After-sales Service Provided No overseas service provided
Condition New

Scissor Fork Electric Stacker CDYR12/15


Capacity:1300/1400kg,Lifting Height:3800-5500mm
1.Scissor type fork.
2.Electronic power steering system,light and low noise.
3.Two-way magnetic valve,three drop speed mode.
4.AC Driving system,no carbon brush,maintenance free.
5.Electromagenetic,regenerative braking system.
6.Lifting,reach,tilt automatic electric limit,delay motor and battery lift.
7.Equipped with double oil cylinder,fork titl more smoothly.
8.Moon Walk is STD,handle at any angle,the vehicle goes straight.

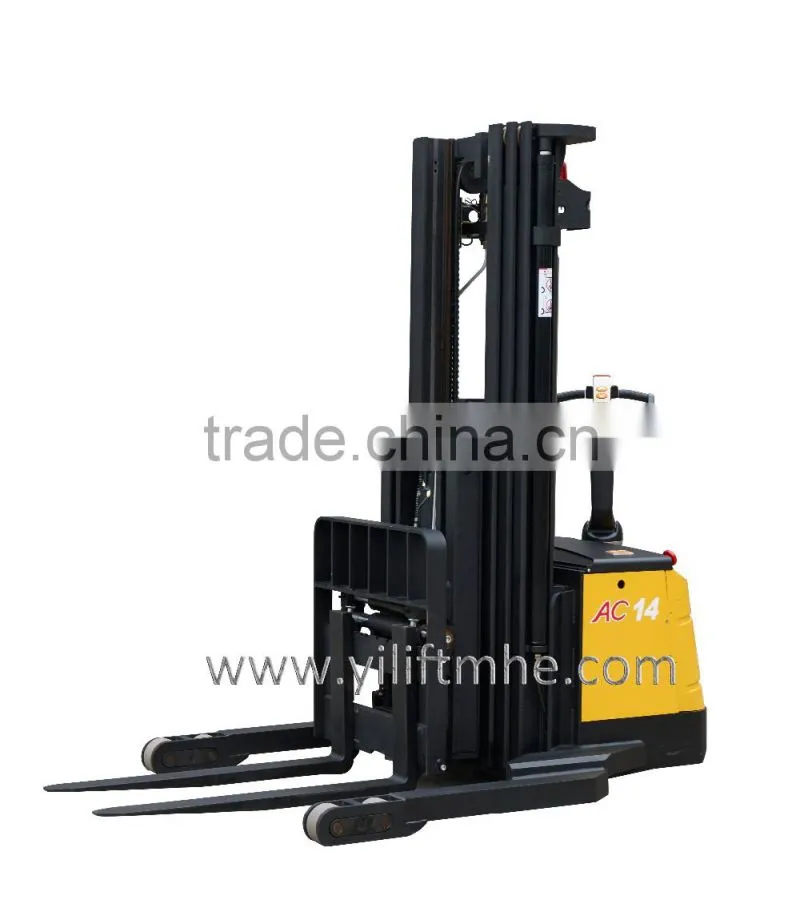

Scissor Fork Electric Stacker CDYR12/15Scissor Fork Electric Stacker CDYR12/15





 Model   CQDY13 CQDY14
Type   Reach
(Tilt,Side shifter) 		Reach
(Tilt)
Mast type    3-Stage STD 3-Stage STD
Load capacity kg 1300 1400
Load center mm 500 500
Wheel base mm 1478 1478
Operating type   Walkie Walkie
Wheels
Wheels type   PU PU
Wheel quantity
Driving wheel/Balance wheel/Bearing wheel 		  1/4 1/4
Dimension
Reach distance mm 0-550 0-550
Standard lift height mm 3800/4000/4500/5000/5500 3800/4000/4500/5000/5500
Max extend height mm 4991/5191/5691/6191/6691 4991/5191/5691/6191/6691
Mast lowered height mm 1914/2081/2248/2415/2582 1914/2081/2248/2415/2582
Lowered fork height mm 55 55
Fork size(length/width/thickness) mm 1070/100/40 1070/100/40
Overall length mm 2225 2225
Overall width mm 1430 1430
Outside width between legs mm 1270/1420/1470 1270/1420/1470
Inside width between legs mm 1070/1220/1270 1070/1220/1270
Outside width between forks mm 200-755 200-755
Distance shift fork side mm 150 -
Tilt of fork(F/B) Grad 4/3 4/3
Min.Turning radius mm 1566 1566
Min.Aisle width for pallets 800×1200 mm 2135 2135
Min.Aisle width for pallets 1000×1200 mm 2315 2315
Min.ground clearance mm 50 50
Performance
Travel speed,laden/unladen km/h 3.5/4 3.5/4
Lift speed,laden/unladen mm/s 130/230 130/230
Lowering speed,laden/unladen mm/s 130/230 130/230
Gradeability,laden/unladen % 3/5 3/5
Electrical configuration
Drive motor / Lift motor /Steering motor  KW AC1.5/DC3.0/DC0.15 AC1.5/DC3.0/DC0.15
Battery voltage V 24 24
Battery capacity Ah 345 345
Brake   Electromagnetic / Regenerative Electromagnetic / Regenerative
Controller   CURTIS CURTIS
Weight
Battery weight kg 300 300
Service weight with battery kg 2420 2400

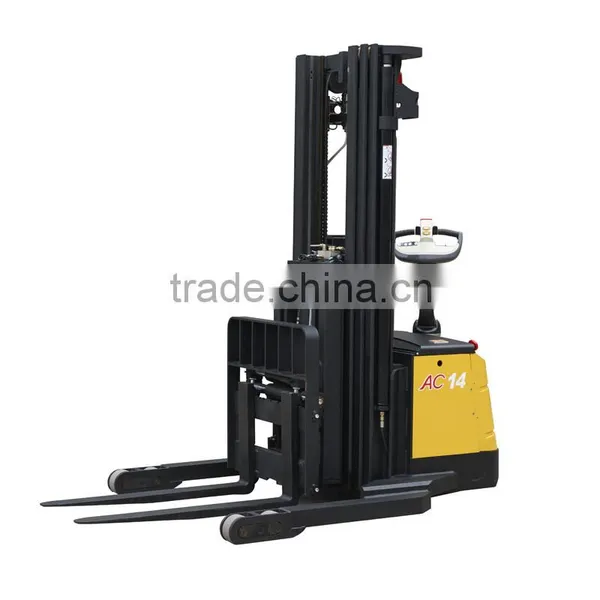

Scissor Fork Electric Stacker CDYR12/15Scissor Fork Electric Stacker CDYR12/15Scissor Fork Electric Stacker CDYR12/15
