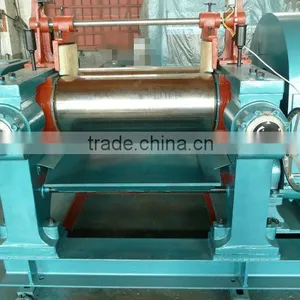

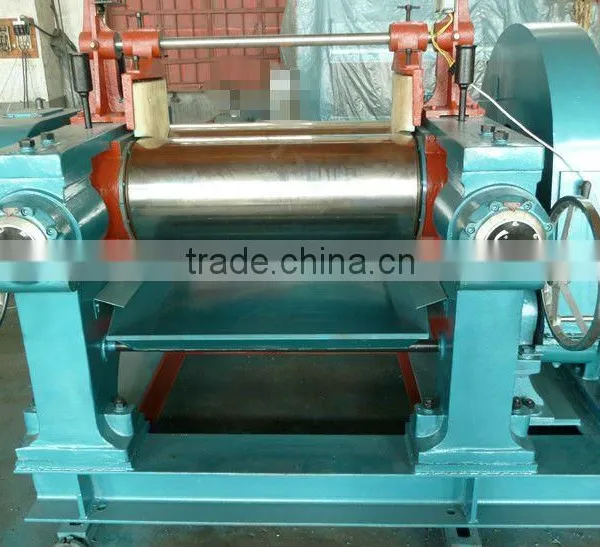

Help CenterOpen Roll Rubber Mill Machine/Rubber Refiner With Stock Blender
Related Products
-
Rubber Mixing Mill for Reclaimed Rubber Machine Production LineUS$ 2,540 - 22,000MOQ: 1 Set -
Cast Iron Rubber Sheet Open Roll Mill/Rubber Refiner/Rubber Mixing MillUS$ 2,540 - 22,000MOQ: 1 Set
-
Rubber Refining Machine/Two Roll Rubber Mixing MillUS$ 2,540 - 22,000MOQ: 1 Set
-
Advanced Lab Rubber Mixing Mill/Rubber Refining Mill/Open MixerUS$ 4,500 - 22,000MOQ: 1 Set
-
Best Popular Two Rolls Mixer/Open Rubber Mixing Mill With Stock BenderUS$ 4,500 - 22,000MOQ: 1 Set
Specifications
cast iron rubber open roll mill1.used for rubber sheet making machine
2.gearbox and bush
3.long life
Wear resitant Cast Iron Rubber Open Mixing Mill
1. General advantage
1.1. Automatic temperature and time control system
1.2. High Mixing Performance
1.3. Uncompromising quality
1.4. Easy installation
2. Application:
The mill is used for rubber plasticating, mixing, warming and sheeting.
3. General design:
3.1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.
3.2. The main electric motor arrives the front and rear rolls to rotate oppositely through reducer, driving gears and friction gears.
4. Features:
4.1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and wearresistant. The working temperature of the bored roll is controllable by steam, cooling water or oil that pass through them thus, to meet the requirements of milling process.
4.2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and sensitivity.
5.Version and its Technique Parameters:
| Technique Parameters | XK-160 | XK-250 | XK-400A | XK-450A | Xk-450 | XK-560A | XK-550B | XK-660 | XKY-660 |
| Roll diameter(mm) | 160 | 250 | 400 | 450 | 450 | 560/510 | 550 | 660 | 660 |
| Roll length(mm) | 320 | 620 | 1000 | 1200 | 1200 | 1530 | 1500 | 2130 | 2130 |
| Front roll surface speed(m/min) | 8.95 | 15.3 | 18.65 | 18.65 | 23.47 | 27.87 | 28.32 | 28.6 | 32.53 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max.nip | 4.5 | 8 | 10 | 15 | 15 | 15 | 15 | 15 | 15 |
| Feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 | 25-50 | 35-50 | 50-60 | 165 | 165 |
| Power | 5.5 | 18.5 | 37 | 55 | 55 | 90 | 110 | 160/245 | 160/245 |
| Size(lenght*width*height)(mm) | 1226*830*1295 | 3400*1600*1500 | 4350*1850*1780 | 5200*2380*1940 | 5670*2390*1670 | 6180*2280*1970 | 5870*2470*2040 | 7460*3660*2080 | 7465*3660*2080 |
| Weight(Kg) | 1280 | 3300 | 7860 | 12600 | 11940 | 22500 | 27000 | 49940 |
49000
|
Picture one : XK-160 lab rubber mixing mill . Mainly used for lab use
picture two : XK-250 rubber mixing mill . production capacity is about 150 kg/h
picture three : xk-360 rubber mixing mill .Production is about 250 kg/h
picture four : xk-400 rubber mixing duction is about 350 kg/h . From this model , we begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.
picture five:XK-450 rubber mixing mill . two configuration , stock blender is choosed . 500 kg/h
picture six : XK-560 . two configuration , stock blender . production is 500 KG/H
