Rubber Shoe Sole Making Machine/Rubber Slipper Vulcanizing and Moulding Machinery
- Qingdao
- Money Gram
You May Like
-
HYDRAULIC PRESS RUBBER MACHINE,RUBBER PRODUCTS MOULDING MACHINE
-
Full Automatic Hydraulic Press For Tyre Vulcanizer
-
ISO9001 Rubber Mat Press Machine
-
5 Layer Rubber Mould Vulcanizing Machine/Mould Press Machine/Rubber Curing Press/Platen Electric Heating Vulcanizing Machine
-
Advanced Effective Rubber Mould Vulcanizing Machine/Auto Control Rubber Slipper Making and Shaping Machine/Rubber Curing Press
-
Rubber Machine(Frame Type Rubber Vulcanizer)/Rubber Plate Vulcanizing Press Machine/Rubber Tile Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Yahua | Model Number | XLB | |
| Voltage | 380v | Power(W) | according to the product | |
| Dimension(L*W*H) | according to the product | Weight | according to the product | |
| Certification | ISO9001 | Warranty | One year |
Product Description
Specifications
Rubber Shoe Sole Making machine1.High working presssure.
2.High producing efficency.
3.Top sales service.
4.One year warran

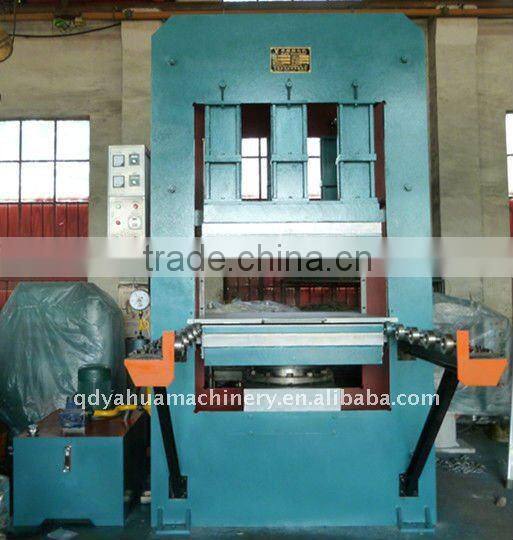

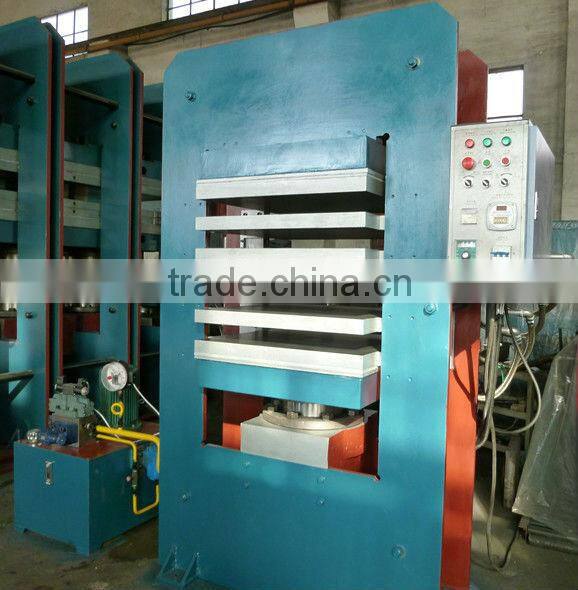

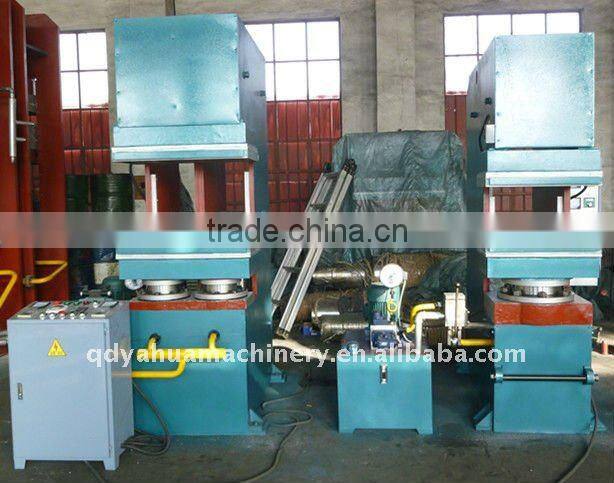

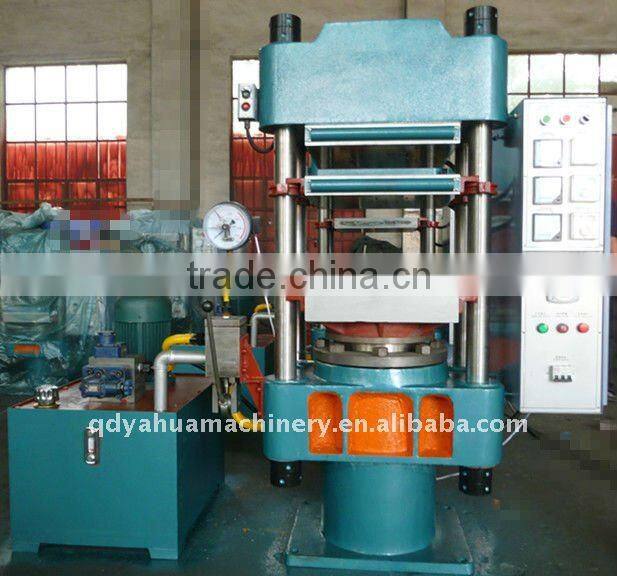

Rubber Shoe Sole Making Machine
Rubber Plate Vulcanizing press is the machinery which produce all kind of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on.
This Machinery has three types: frame type, pillar type and jaw type. It is economical advantage of compact structure, high working pressure, and high producing efficency.
Features
1- Material of steel :
Hight quality carbon steel,more thick than other supplier,after shot blasting ,smooth and strong enough,we usually use more thickness material than other supplier.
2- Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3- Heating way&precision temperature control:
Steam ,oil or Electric
Plate temperature tolerance: ±0.5°C
4- There are more advanced technical information as our core patents,and not showed in the description,please email us.
Model and its Parameter as follows:
Model | XLB-D400*400*2 | XLB-D500*500*1 |
Nominalmoundingpower(MN)
| 0.50 | 0.5 |
Plate Size(mm) | 400*400 | 500*500 |
Plate pressure(Mpa) | 3.1 | 2.0 |
Piston stRoke(mm) | 250 | 250 |
Distance between hot plate(mm) | 125 | 250 |
Working layer Number | 2 | 1 |
Pressure of working fluid(Mpa) | 16.9 | 16.0 |
Total heat power(KW) | 9 | 6.0 |
Heat type | Electricity |
Electricity
|
Maximum working temperature(Degree) | 200 |
200
|
Configuration type | 4 pillar |
4 pillar
|
Motor power | 2.2KW,1430R/Min |
2.2KW,1430R/Min
|

Meanwhile, we can also produce according to your requirements. We feel confident that you will find our product with high quality and reasonable price.Looking forward our long friendly cooperation with people from all of the world.
If you have any question, pls don't feel any hesitate to ask me anytime.
Contact Person: Bella Xue
Office phone: 0532-83132191/83137817
Office Fax: 0532-83137817/83132191
