Specifications
NBR foam making machine80t 500*500*4
4 layers or customized
quick rise and fall

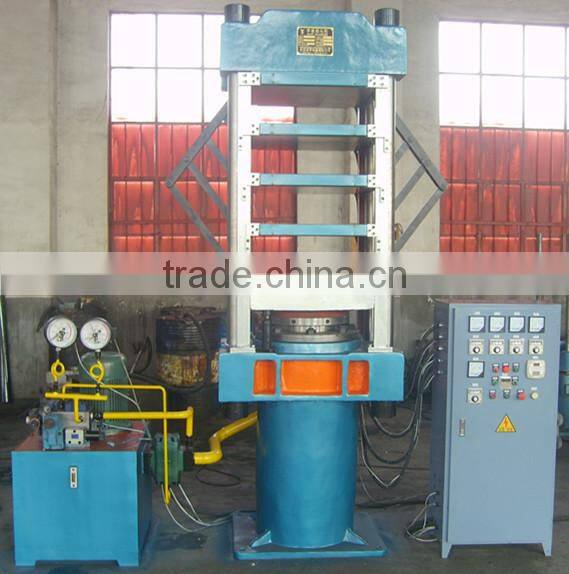

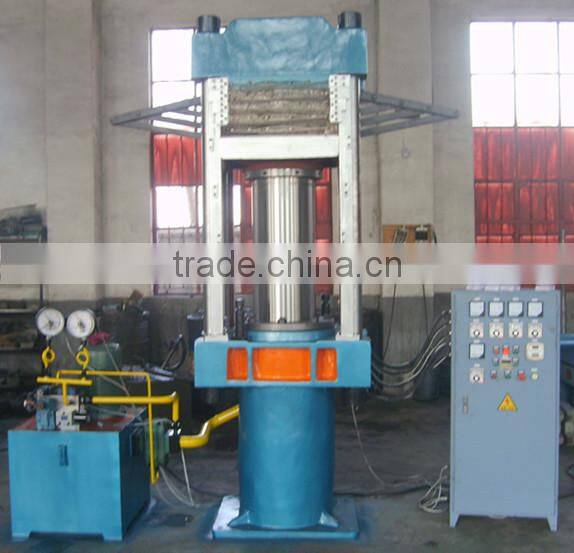

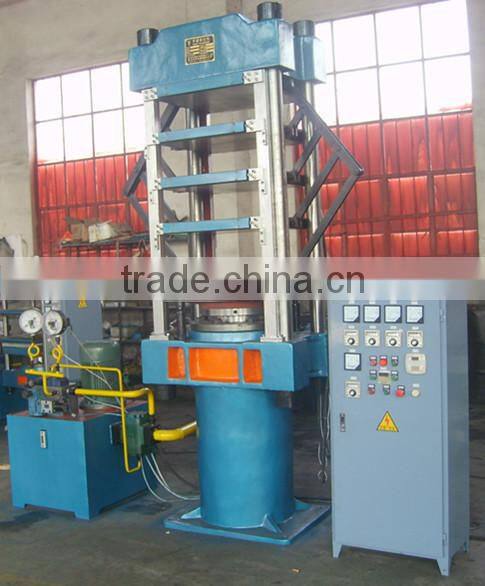

NBR foam making machine
Plate vulcanizing press is the machinery which produce all of kinds of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on. This kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency.Operation is safe and reliable.
Also we can provide other sizes, types, and operation ways according to the customer's request.
Type | XLB-DQ1200X1200X4 | XLB-DQ1400X1500X6 | XLB-DQ1500x1500x6 |
Total Pressure(MN) | 5.00 | 8.00 | 10.00 |
Plate Size(mm) | 1200x1200 | 1400x1500 | 1500x1500 |
Plate Clearance(mm) | 150 | 150 | 150 |
Working Stroke | 500 | 800 | 800 |
Plate Pressure(Mpa) | 3.5 | 3.8 | 4.5 |
Motor Power(kw) | 18.5 | 26 | 33 |
Overall Size(mm) | 2400x2100x3200 | 2650x2400x3600 | 2750x2400x3600 |
Weight(kgs) | 22,000 | 38,000 | 48,000 |
Type | XLB-DQ900X900X4 | XLB-DQ750X850X4 |
Total Pressure(MN) | 2.5 | 3.15 |
Plate Size(mm) | 900x900 | 750x850 |
Plate Clearance(mm) | 150 | 125 |
Working Stroke | 600 | 500 |
Plate Pressure(Mpa) | 3.1 | 5.0 |
Motor Power(kw) | 7.5 | 26 |
Overall Size(mm) | 2200x1000x2100 | 1900x1060x2028 |
