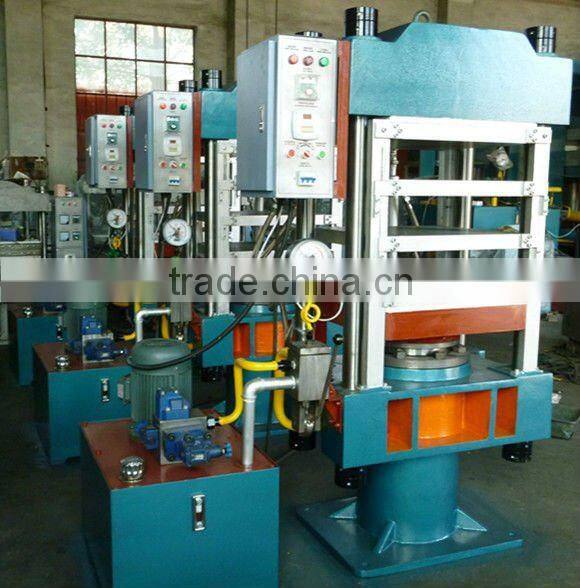

PLC Auto Rubber Sealing Washer Vulcanizing Machine With ISO/Rubber Mat Making Machine

Specifications

1.used widely, good sales
2.high working pressure
modious space and easy operation
4.saving energy, reliable action



  PLC Auto Rubber Sealing Washer Vulcanizing Machine/Rubber Mat Making Machine



We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine,  rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

If you interested in our products mentioned above. Kindly let us know by return email.





Main technical parameters




Model XLB-D	400*400*1	400*400*2	XLE-D450*450*1	500*500*1	500*500*2
Nominal Mold Force(MN)	0.80	0.80	0.80	0.80	0.80
Plate Specification(mm)	400*400	400*400	450*450	500*500	500*500
Working Layer Number	1	2	1	1	2
Plunger Stroke(mm)	250	250	300	250	300
Plate Unit Pressure(Mpa)	5.0	5.0	4.0	3.2	3.2
Plate Distance(mm)	250	125	300	250	150
Plunger Diameter(mm)	250	250	250	250	250
Working Fluid Pressure( Mpa)	16	16.2	16.3	16.2	16.2
Total Heating Power	6	9	6	7.2	9
Heating Type	Electricity	Electricity	Electricity	Electricity	Electricity
Highest Temperature	200°C	200°C	200°C	200°C	200°C
Structure Form	Pillar	Pillar	Crocodile	Pillar	Pillar
Motor Power	1.5KW,940r/min	1.5KW,940r/min	2.2KW,960r/min	1.5KW,940r/min	1.5KW,940r/min
Dimension(length*width*height)	1300×1400×650	1300×650×1400	1300×1400×650	1300×1400×650	1300×1400×650





Advantages





1. This  series of products have high press in unit area , so that we can ensure the quality .



2.Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements .Hand control ,electrical control and PLC control is optional.



3.The working layer number can be designed as the request.



4. valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate  rubber machine.

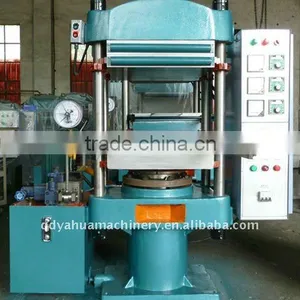

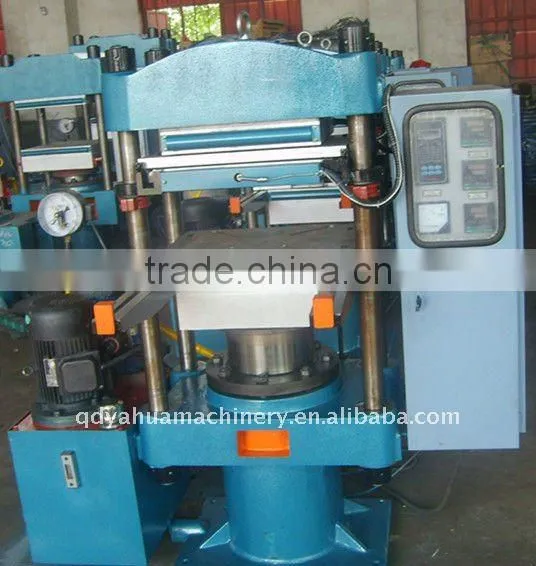

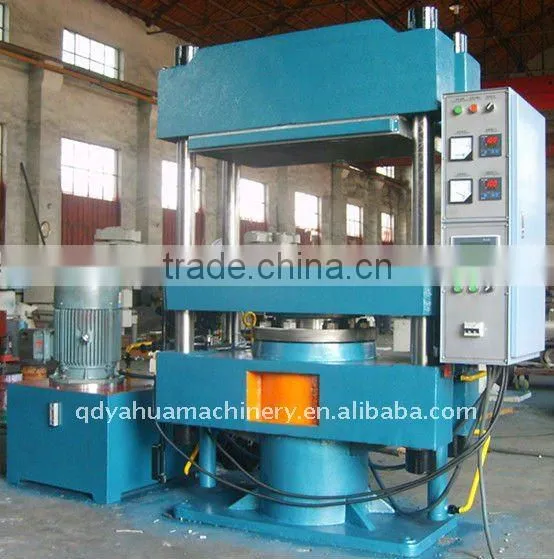

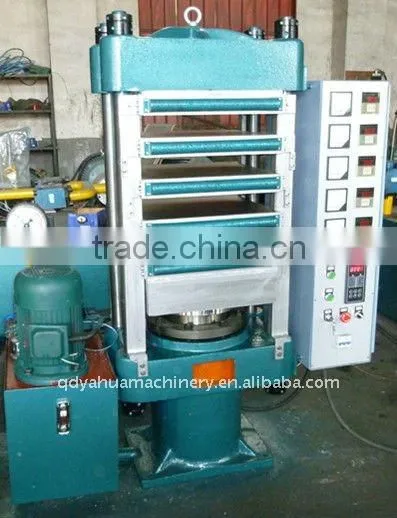

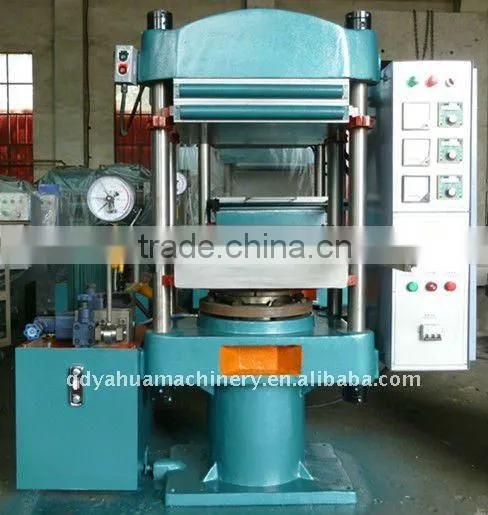

Here is Column Plate Press Vulcanizer Machine.

It is mainly used in the vulcanization of rubber products. It generally adopts the column configuration with compact structure, beautiful modeling and strong clamp force. The upper template of each working position can by heated up to 180°C (adjustable), the lower template can control the temperature in the room temperature, which forms the effective temperature difference. This machine has unique two-temperature working position structure and high pressure performance which are suitable for various reflective material products such as press forming of trademark light, etc.
