Specifications
hydraulic hot platen press1.Mainly used for the clampdown of all kinds of rubber ,
2.Without oil spilling,
3.Low noise

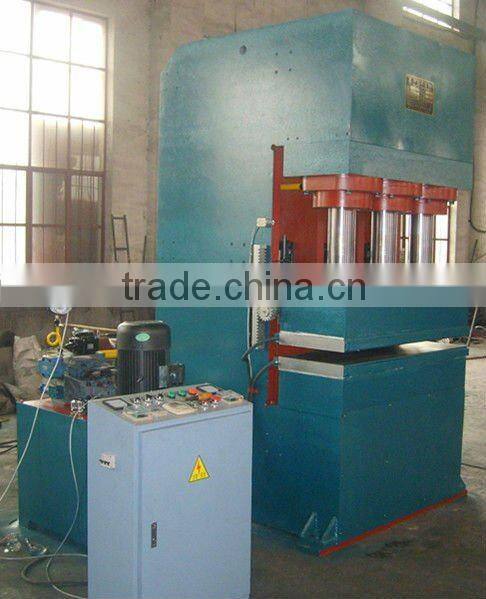

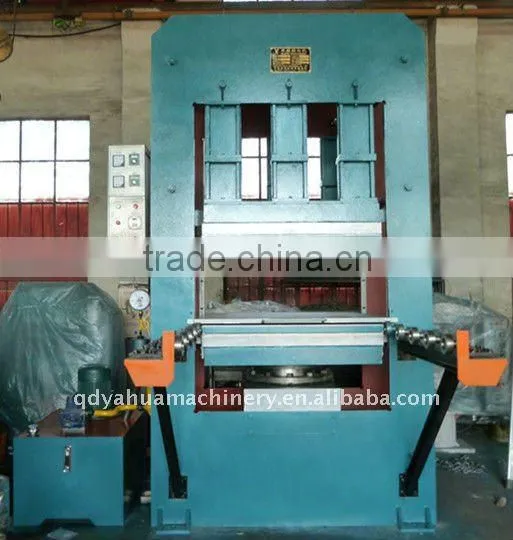

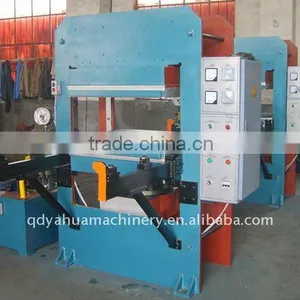

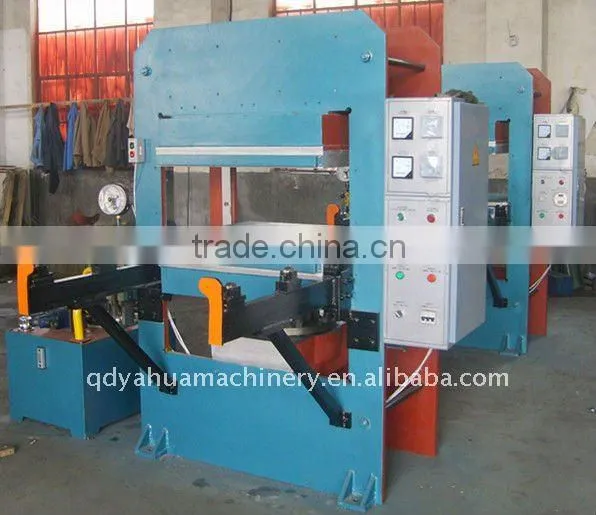

Rubber Plate Vulcanizing press is the machinery which produce all kind of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on.
This Machinery has three types: frame type, pillar type and jaw type. It is economical advantage of compact structure, high working pressure, and high producing efficency.
Rubber Parts for Car Electric Platens Molding Press
Model and its Parameter as follows:
Model | XLB-D800*800*1 | XLB-Q1500*4000 | XLB-D400*400*1 |
Nominalmoundingpower(MN)
| 160 | 24.00 | 0.8 |
Plate Size(mm) | 800*800 | 1500*4000 | 400*400 |
Plate pressure(Mpa) | 2.5 | 4.0 | 5.0 |
Piston stroke(mm) | 400 | 350 | 250 |
Distance between hot plate(mm) | 400 | 350 | 250 |
Working layer Number | 1 | 1 | 1 |
Pressure of working fluid(Mpa) | 15.7 | 15.3 | 16.0 |
Total heat power(KW) | 14.4 | 33 | 6.0 |
Heat type | Electricity | Steam Heating | Electricity |
Maximum working temperature(Degree) | 200 | 170 | 200 |
Configuration type | Frame | Frame | Frame |
Motor power | 3KW,960R/Min | 11kw | 2.2KW |
