Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Ghorit | Model Number: | CBB65 |
Type: | Aluminum Electrolytic Capacitor | Application: | Other, Apparatus, instrument, household appliances and other AC, DC circuit | Package Type: | Surface Mount |
Capacitance: | 5uf-80uf | Rated Voltage: | 250V~540VAC | Operating Temperature: | 40/8521 |
Product Description

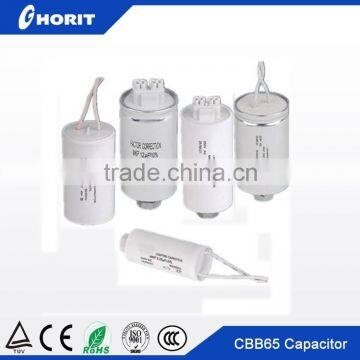

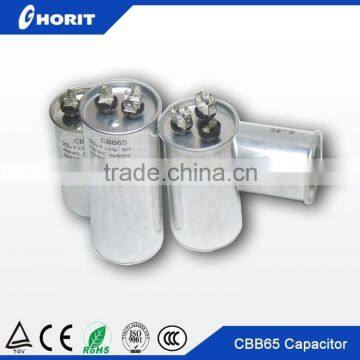

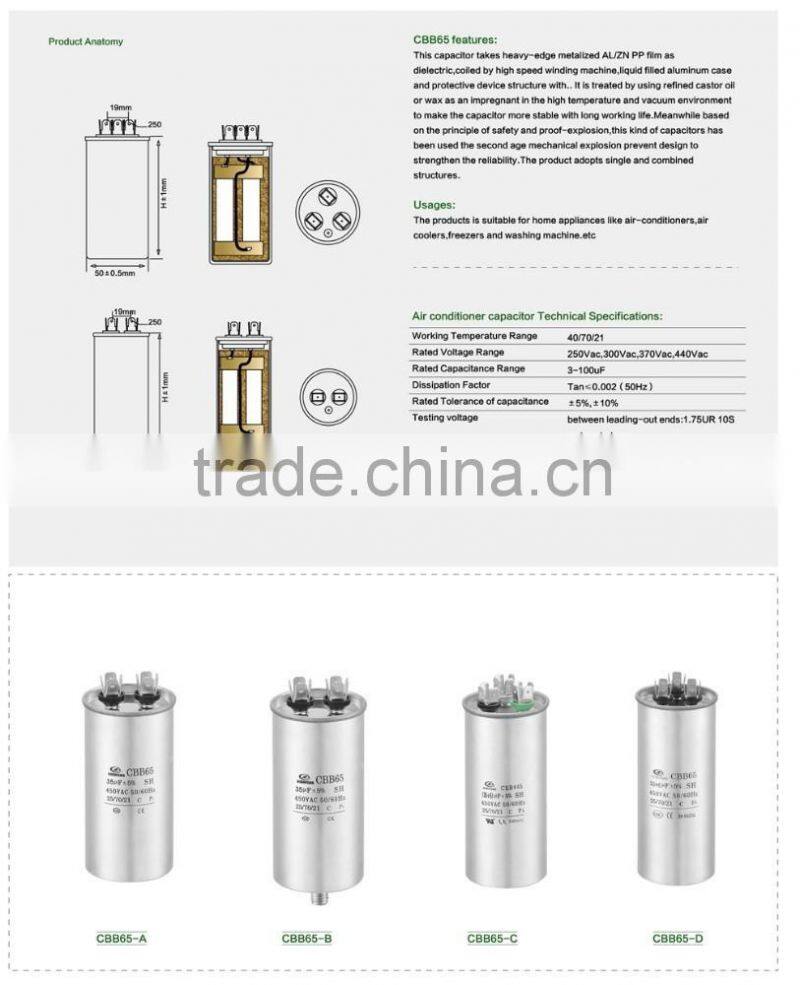

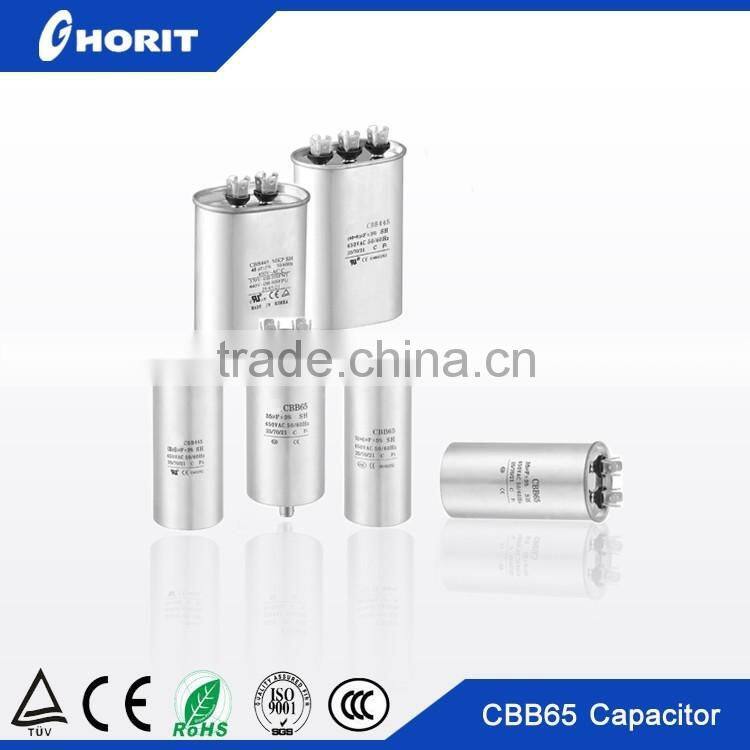

Castor oil capacitor cbb65 air conditioner polypropylence capacitor
Type:Capacitor
Specifications
Characteristics:
The capacitor uses thickened metallized polypropylene film as medium, with high-speed winding machine rollsd tightly, with special oil for refining capacitor impregnant in the high-temperature vacuum processing, making the capacitor more stadle performance and longer life.
Meanwhile, the capacitor takes the second-generation mechanical anti-riot design for higher reliability.
Applications:
Products widely used in air conditioners, refrigerators, refrigeration equipment and lighting fixtures.
cbb65 250vac 90uf sh starting capacitor
Feature:
1:Take heavy-edge metalized AL/ZN PP film as dielectric
2.Liquid filled aluminum case and protective device structure
3.Using refined castor oil or wax as an impregnant in the high temperature and vacuum enviroment to make the capacitor more stable with long working life
4.Meanwhile based on the principle of safety and proof-explosion prevent design to strengthen the reliability
5.The product adopts single and combined structures
We can produce according to your design and request
Techinnical Parameters:
Capacitance range | 5μf-80μf | |
Rated voltage | 250V-540VAC | |
Rated frequency | 50/60Hz | |
Capacitance tolerance | ±5% or upon customer’s demand | |
Loss Tangent | Tg ≤0.002(50Hz-100Hz) | |
Standard Temperature | 70°C,80°C,105°C | |
Climate class | 25/70/21,40/85/21 | |
Examine Voltage | Between derivation head | AC≥2.00Un 2S NO Breakdown |
Between derivation head and shell | AC≥2000V 2S NO Breakdown | |
Insulation Resistance | Between derivation head | Rj·C≥3000MΩ.μf |
Between derivation head and shell | Rj≥1000MΩ.μf | |
Dissipation factor(at 50Hz-Hz and 20°C) | ≤0.002(100Hz,20°C) | |
Test voltage between terminals | T-T:2.0`Un, 2S no breakdown | |
T-C:2500VAC, 10S no breakdown | ||
Loss tangent | tg≤0.001 (100Hz) | |
Security Level | P1,P2 | |
Executing Standard | GB/T3667.1-2005, IEC60252-1:2001, UL810, EN60252, |

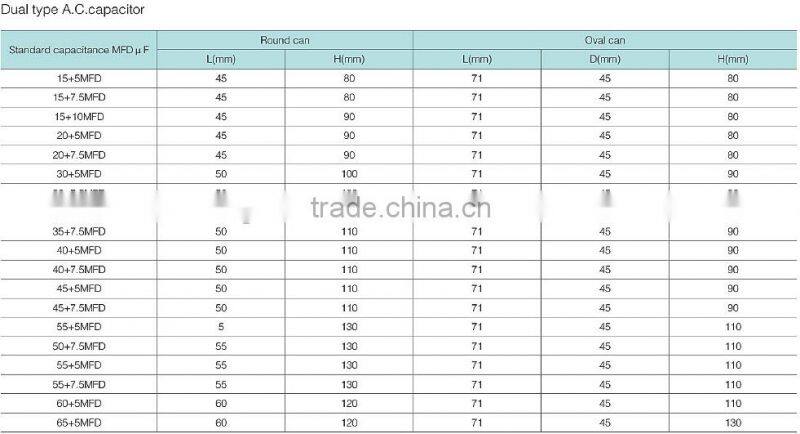

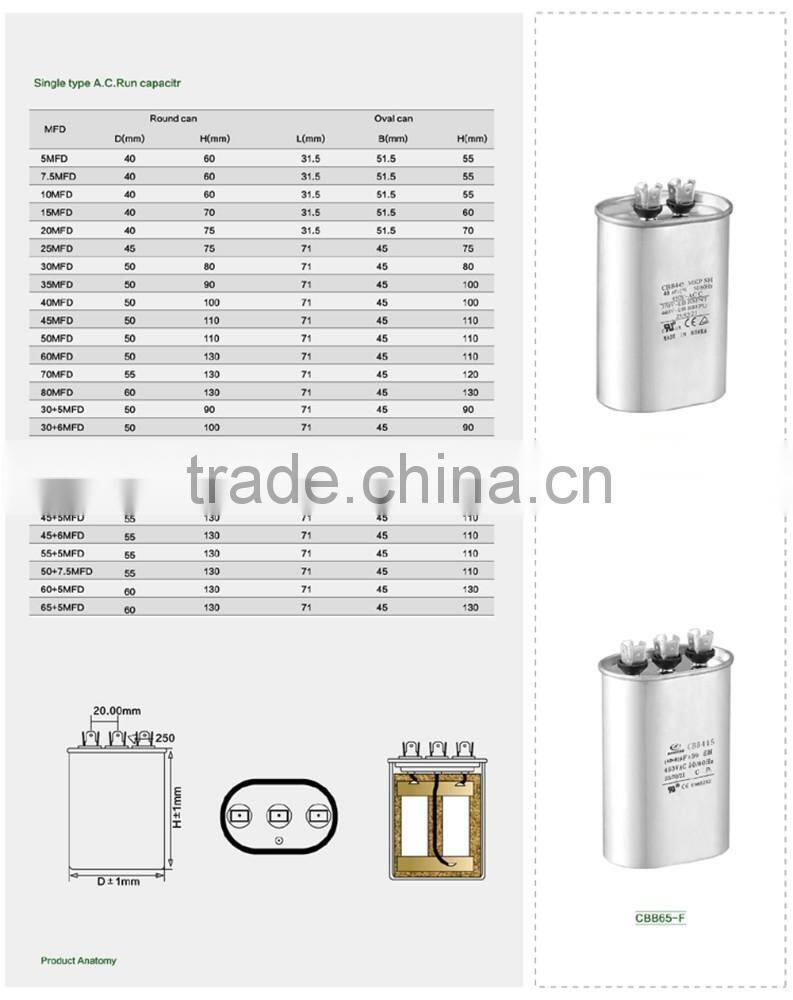

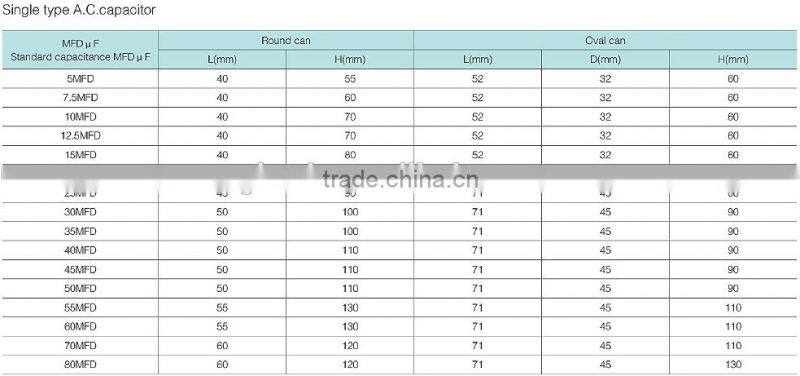

Capacitance and dimension(mm)

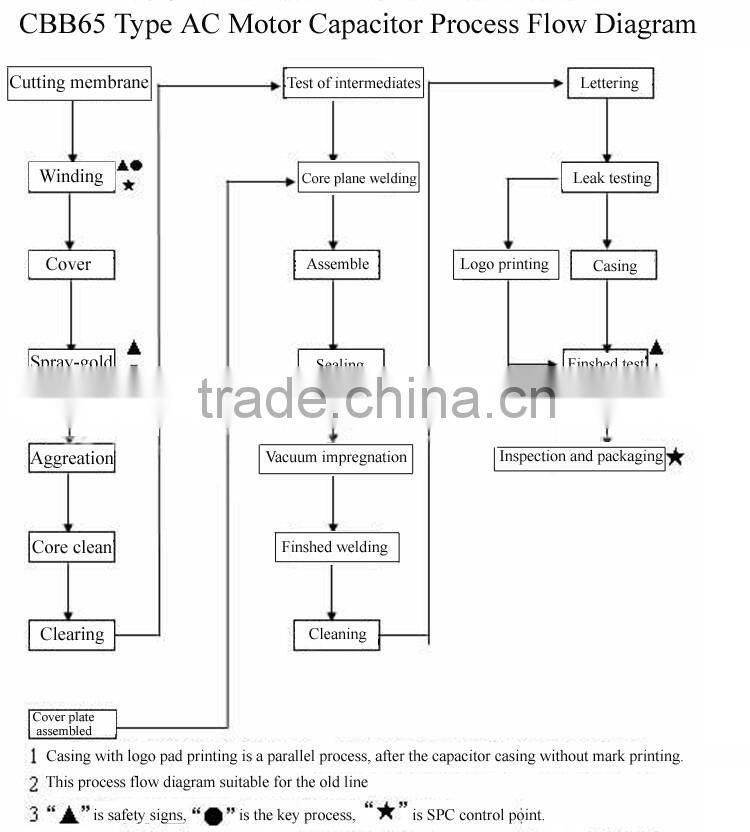

Process flow diagam

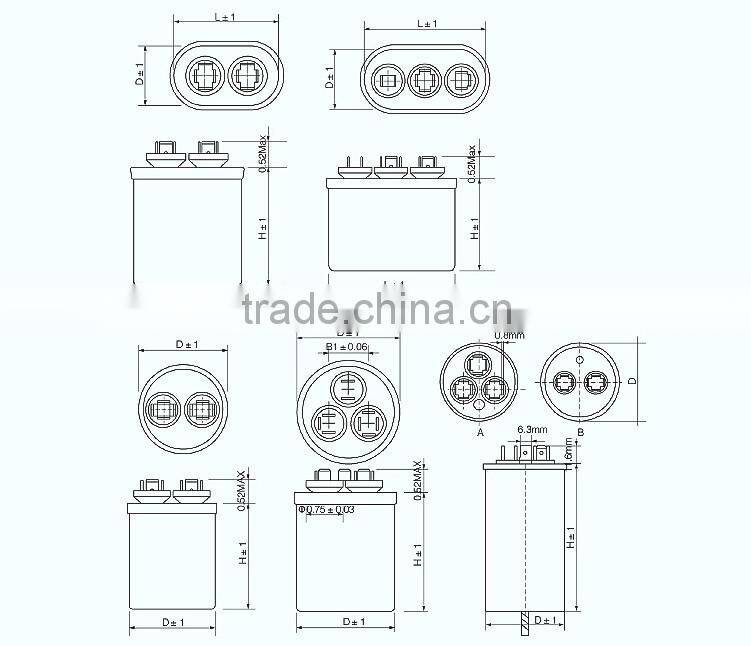

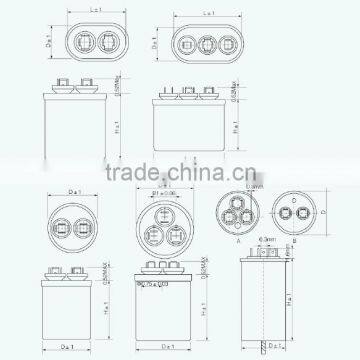

Drawing
Zhejiang Ghorit Electrical Equipment Co.,LTD established in 2000, is a large-scale high and new-tech enterprise specialized in researching, developing, producing, marketing and servicing. The leading products include vacuum circuit breaker, high voltage load disconnecting switches, permanent magnet, various of spring and other high & low voltage electrical component.
Q: If I'm interested in your products when I can get quotation and detail information after send the inquiry?
A:All enquiries will be replied in 24 hours.
Q:Your products seems perfect but what's the difference between you and other suppliers? Because I found some cheaper price!
A: The price is based on the quality all our products are in high quality. And most of the companies' products price are different. Thus, I think First compare the quality Second compare the price is the best way!
Q:I know your quality is perfect but in our market normal quality are more popular what can I do?
A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements in GHORIT.
Q:Can I get a sample before the order because I really don't how is your MCB quality?
A: Of course! We also think sample order is the best way to build trust. We offer free sample service! Do not hesitate to send inquiry to get the free sample!
Q:What's the delivery time? Because we really need them is urgently?
A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.
Q:What's the warranty period for your products?
A: One year warranty is no problem.
Q:How to send a inquiry for more information?
A: You can find a textbox at bottom of page then send inquiry through it, also can find our contact
