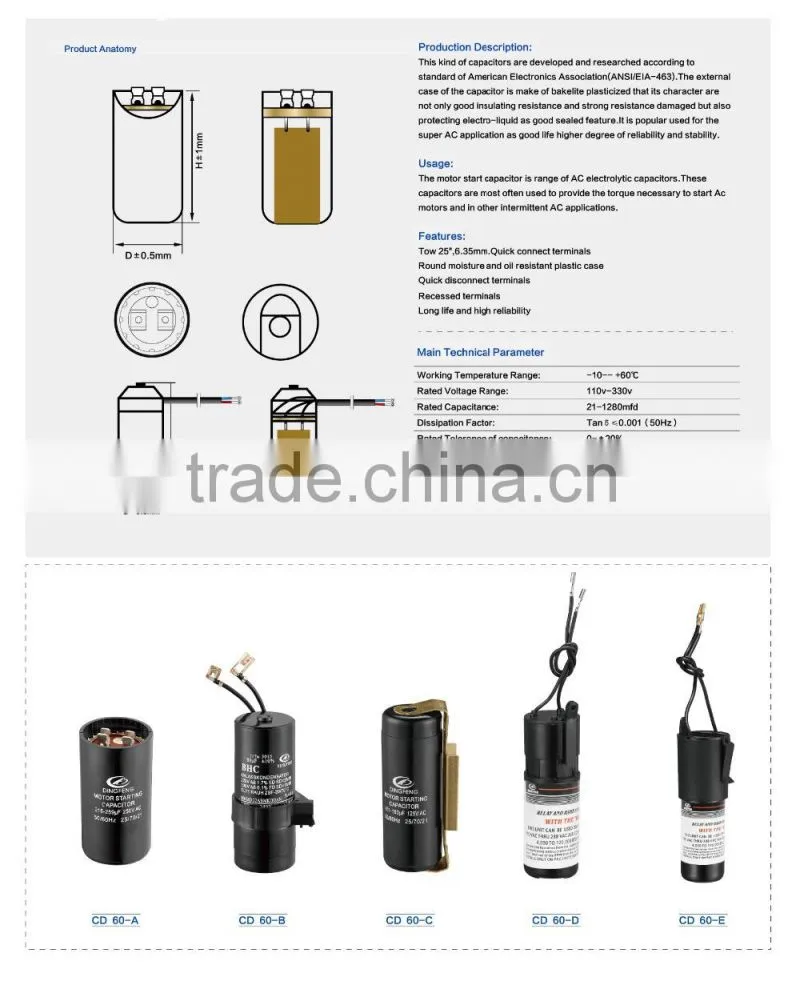

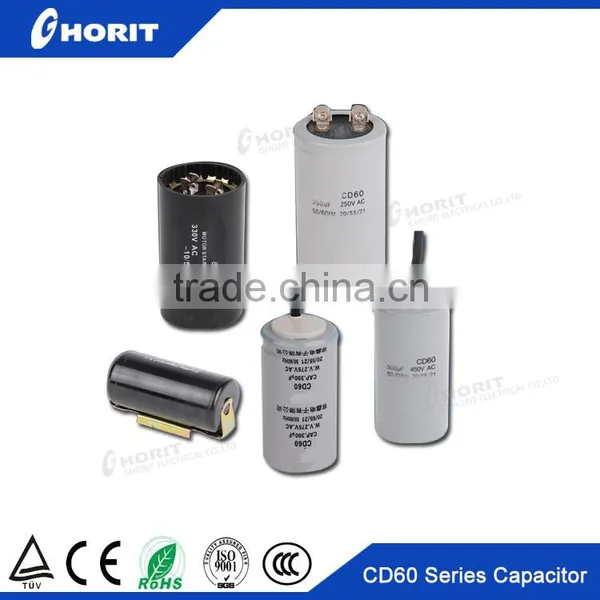

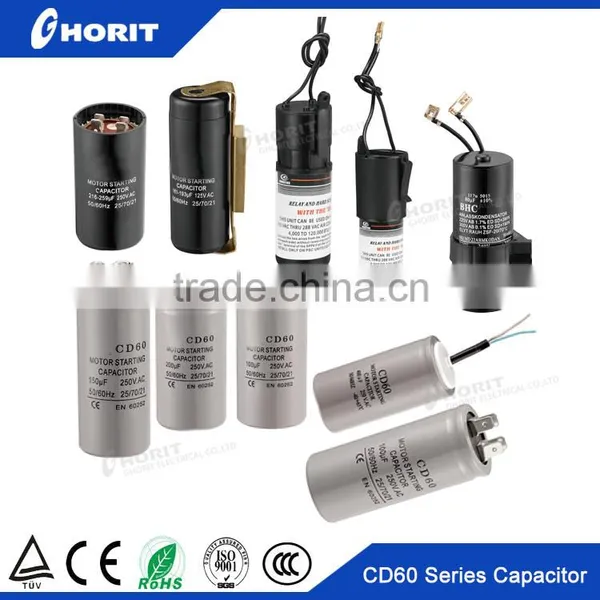

Product Name: cd60 ac fan motor start capacitor 1.5uf
Type: Capacitor
Detailed Info

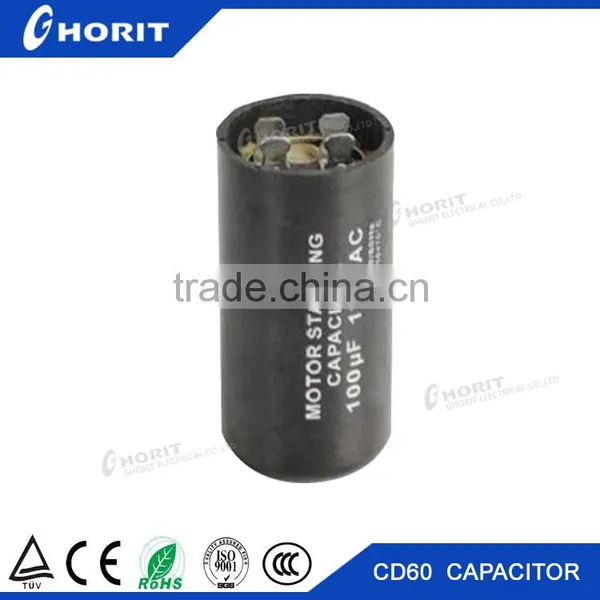

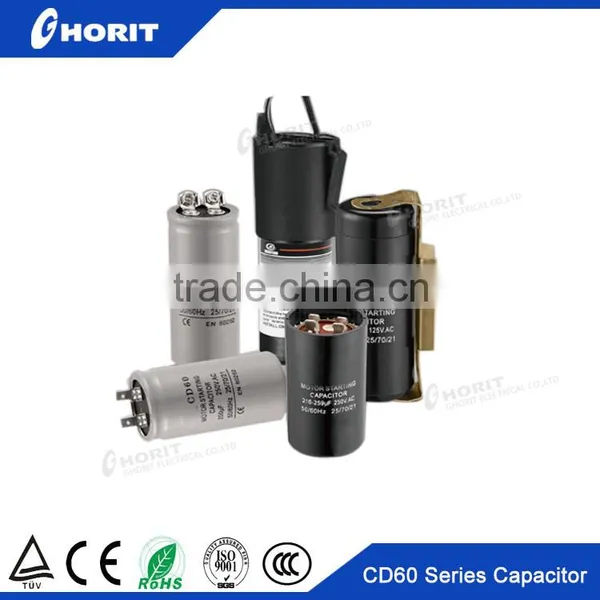

CD60 start capacitor is developed and researched according to standard of American Electronics Association (ANSI/EIA-463). The external case of the capacitor is made of bakelite plasticized which Character is not only good insulating resistance. Strong resistance damaged but also protecting electro liquid as good sealed feature.
Products characteristics:
This capacitor use aluminum foil as electrode, non-soild electrolyte, start the motor at a lower current, higher torque can be obtained, it is of good insulation. Strong strength, not easy to break, fiemterminal, no leakage and can withstand a greater force in all aspects, easy to install wiring.
Products applications:
It is popular used for the super AC application as good life, higher degree of reliability and stability.
Specifications
Capacitance range |
20μf-1536μf |
|
Rated voltage |
110V-330VAC |
|
Rated frequency |
50Hz;60Hz |
|
Capacitance tolerance |
0-±20% |
|
Loss Tangent |
Tg ≤0.15( 20°C, 100Hz) |
|
Standard Temperature |
-40°C~+65°C,-20°C~+65°C |
|
Climate class |
25/70/21,40/85/21 |
|
Examine Voltage |
Between derivation head |
AC≥1.2Un 2S NO Breakdown |
Between derivation head and shell |
AC≥2000V 2S NO Breakdown |
|
Durability |
R.voltage ≥160V,charge once per minute, last 1S, total 30000times |
|
R.voltage <160V,charge once per 30s, last 1S, total 75000times | ||
Without voltage between terminals |
Apply 1.25 times working voltage for 2S without break down or explosion |
|
Without voltage between terminals and case |
2000VAC for 10 seconds without break down or explosion |
|
Executing Standard |
EIA463, IEC60252-2:2003 |
|

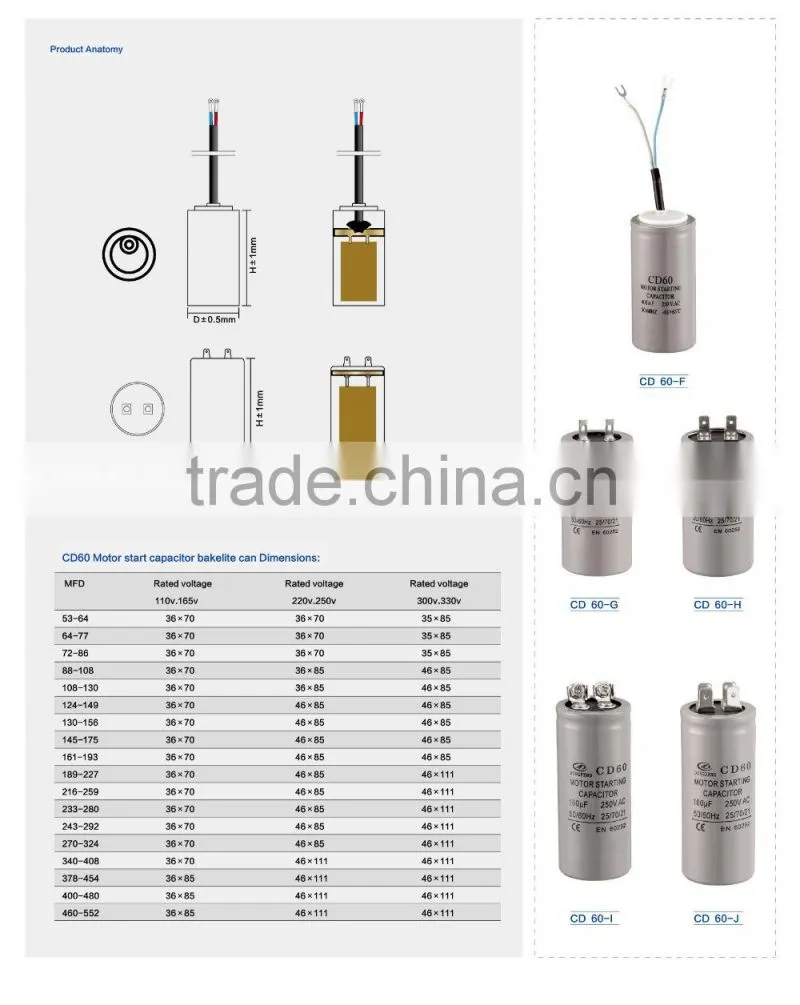

Capacitance and dimension(mm)
| D | 36.5 | 46.02 | 52.37 | 65.50 |
| H | 69.85-111.12 | 85.72-11.12 | 58.72-111.12 | 111.12 |
| F | 12.07 | 15.88 | 22.22 | 22.22 |
| Lamx | 1.05 | 1.05 | 1.05 | 1.05 |
|
UR(VAC) CASE(#) CE(μf) |
110VAC | 125VAC | 165VAC | 220VAC | 250VAC | 330VAC |
| 21-25 μf | 36.5x69.85 | 36.5x69.85 | 36.5x69.85 | 36.5x69.85 | 36.5x69.85 | 36.5x85.72 |
| 25-30 μf | ||||||
| 30-36 μf | 36.5x85.72 | 46.02x85.72 | ||||
| 36-43 μf | ||||||
| 43-52 μf | 36.5x85.72 | |||||
| 47-56 μf | ||||||
| 53-64 μf | 46.02x85.72 | 46.02x111.12 | ||||
| 64-77 μf | 46.02x85.72 | |||||
| 72-86 μf | ||||||
| 88-106 μf | 36.5x85.72 | 46.02x111.12 | 52.37x111.12 | |||
| 108-130 μf | 65.5x111.12 |
|||||
| 124-149 μf | 46.02x111.12 | |||||
| 130-156 μf | 46.02x85.72 | |||||
| 145-174 μf | 52.37x111.12 | 52.37x111.12 | ||||
| 161-193 μf | ||||||
| 189-227 μf | 36.5x85.72 | 65.5x111.12 | ||||
| 216-259 μf | 36.5x85.72 | 65.5x111.12 | ||||
| 233-280 μf | 46.02x111.12 | |||||
| 243-292 μf | 36.5x111.12 | |||||
| 270-324 μf | ||||||
| 324-389 μf | 36.5x111.12 | 46.02x85.72 | 52.37x111.12 | |||
| 340-408 μf | 46.02x85.72 | |||||
| 378-454 μf | ||||||
| 400-480 μf | ||||||
| 430-516μf | ||||||
| 460-552 μf | 65.5x111.12 | |||||
| 540-648 μf | 46.02x111.12 | 46.02x111.12 | ||||
| 590-708 μf | ||||||
| 645-774 μf | 52.37x111.12 | 52.37x111.12 | ||||
| 708-85 μf | ||||||
| 720-864 μf | ||||||
| 800-960 μf | ||||||
| 815-978 μf | 65.50x111.12 | |||||
| 829-995 μf | 65.5x111.12 | |||||
| 850-1020 μf | ||||||
| 1020-1224 μf | ||||||
| 1175-1410 μf | ||||||
| 1280-1536 μf |

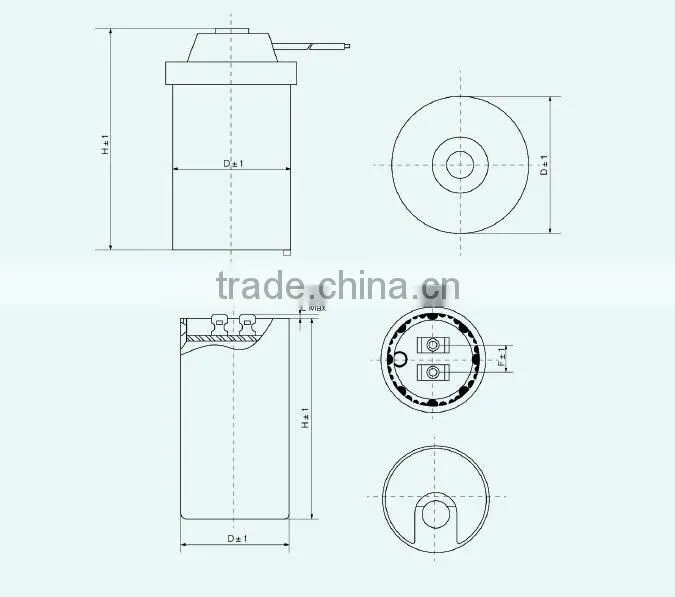

Drawing
Capacitor Process Flow Diagram
Zhejiang Ghorit Electrical Equipment Co.,LTD established in 2000, is a large-scale high and new-tech enterprise specialized in researching, developing, producing, marketing and servicing. The leading products include vacuum circuit breaker, high voltage load disconnecting switches, permanent magnet, various of spring and other high & low voltage electrical component.
All enquiries will be replied in 24 hours.
Q:Your products seems perfect but what's the difference between you and other suppliers? Because I found some cheaper price!
A: The price is based on the quality all our products are in high quality. And most of the companies' products price are different. Thus, I think First compare the quality Second compare the price is the best way!
Q:I know your quality is perfect but in our market normal quality are more popular what can I do?
A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements in GHORIT.
Q:Can I get a sample before the order because I really don't how is your MCB quality?
A: Of course! We also think sample order is the best way to build trust. We offer free sample service! Do not hesitate to send inquiry to get the free sample!
Q:What's the delivery time? Because we really need them is urgently?
A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.
Q:What's the warranty period for your products?
A: One year warranty is no problem.
Q:How to send a inquiry for more information?
A: You can find a textbox at bottom of page then send inquiry through it, also can find our contact
Trade terms: FOB, CIF,EXW
Payment terms: T/T, L/C, Western Union, Paypal
Payment condition: 30% as deposit paid in advance, the balance paid before shipping.
Delivery time: within 20 working days after receive deposit and confirm details
packing: neutral carton, wooden case or as required
Delivery: by sea, by train, by air, by express delivery
