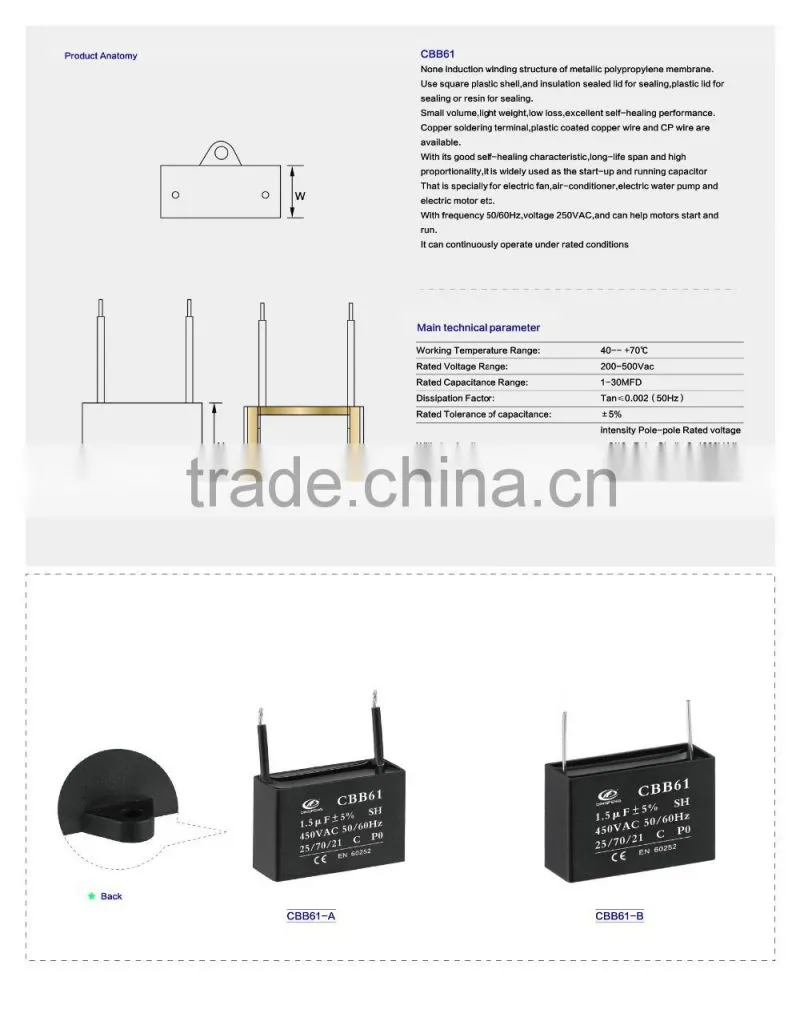

Product Name: ceiling fan wiring diagram capacitor lonch cbb61 1.75uf
Type: Capacitor
Detailed Info

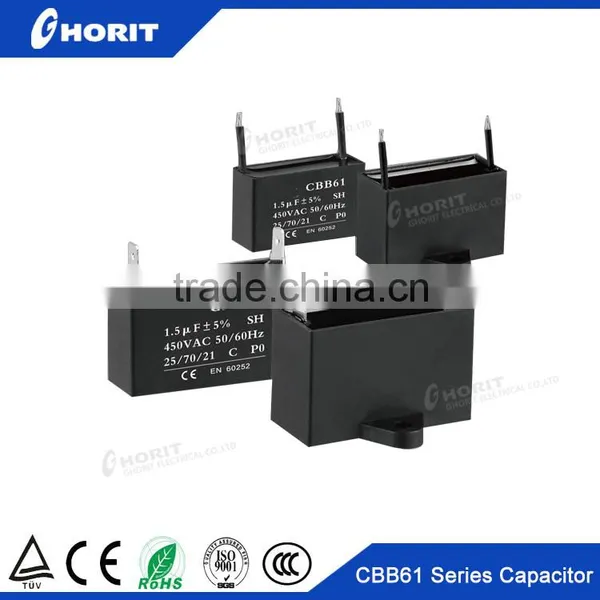

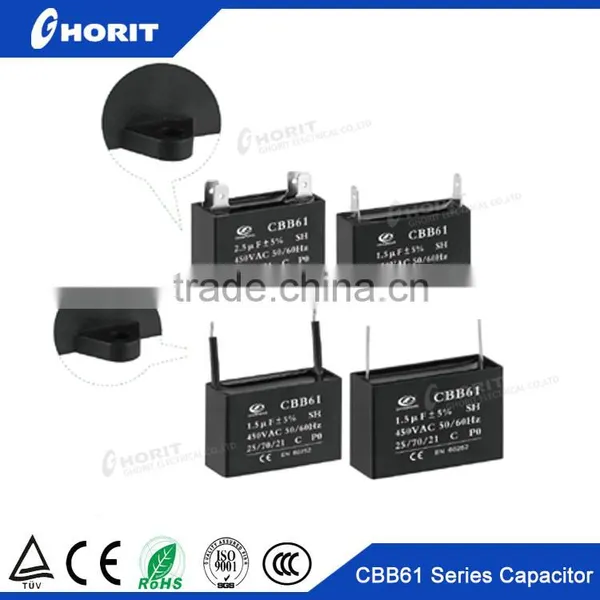

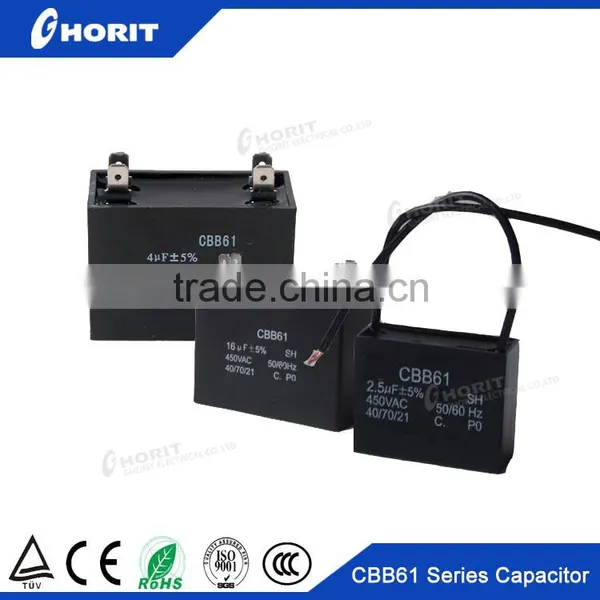

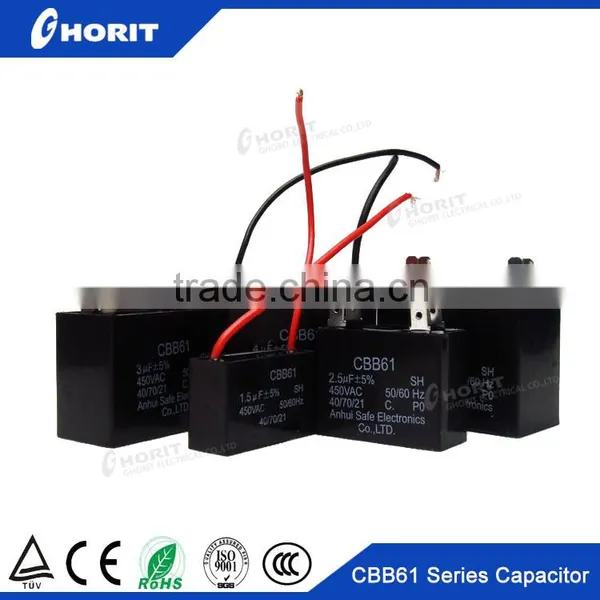

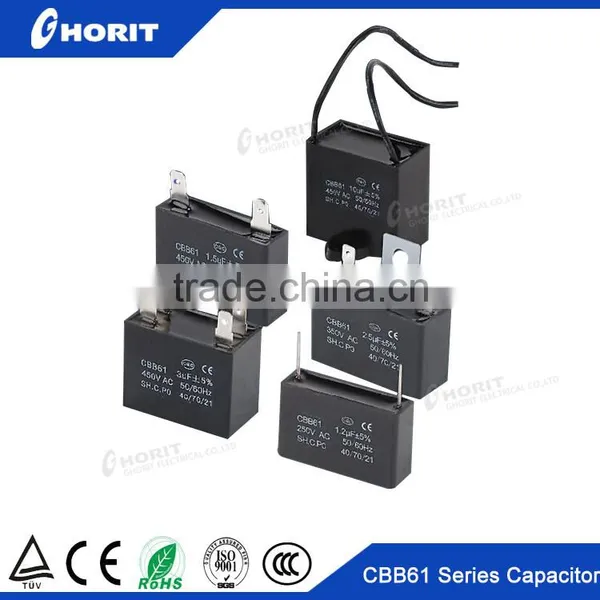

CBB61 capacitor suitable used in electric motor and general purpose AC applications.With its good self-healing characteristic and long life, CBB61 capacitor is widely used for electric fan, CBB61 series are common used in refrigerators, air conditioner, pumps , illuminating lamps, etc.
Products characteristics:
With polypropylence film as medium, epoxy resin as installation, it is of small size, film electrical performance, long life. Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
Products applications:
It is mainly used for mmicro-motors, air conditioners, fans, household appliances and so on.To start and run single phase motors in alternating current usage.
Specifications
Capacitance range |
1μf-30μf |
|
Rated voltage |
250V-500VAC |
|
Rated frequency |
50Hz;60Hz |
|
Capacitance tolerance |
±5% or upon customer’s demand |
|
Loss Tangent |
Tg ≤0.002(50Hz-100Hz) |
|
Standard Temperature |
-25°C~+70°C,-40°C~+85°C |
|
Climate class |
25/70/21,40/85/21 |
|
Examine Voltage |
Between derivation head |
AC≥2.00Un 2S NO Breakdown |
Between derivation head and shell |
AC≥2000V 2S NO Breakdown |
|
Insulation Resistance |
Between derivation head |
Rj·C≥3000MΩ.μf |
Between derivation head and shell |
Rj≥1000MΩ.μf |
|
Dissipation factor(at 50Hz-Hz and 20°C) |
≤0.002(100Hz,20°C) |
|
Test voltage between terminals |
2×Un for 3s |
|
Test voltage between terminals and case |
2×Un+1000VDC FOR 2s |
|
Security Level |
PO |
|
Executing Standard |
GB/T3667.1-2005, IEC60252-1:2001 |
|
Capacitance and dimension(mm)
Standard capacitance μf |
110VAC | 125VAC | 165VAC | 220VAC | 250VAC | 330VAC |
| 1 μf | 39 | 16 | 26 | |||
| 2 μf | 45 | 15 | 36 | |||
| 3 μf | 39 | 20 | 29 | 39 | 16 | 26 |
| 4 μf | 38 | 19 | 54 | 39 | 20 | 29 |
| 5 μf | 46 | 21 | 36 | 45 | 17 | 40 |
| 6 μf | 48 | 18 | 39 | 45 | 17 | 40 |
| 7 μf | 50 | 23 | 41 | 46 | 21 | 36 |
| 8 μf | 45 | 26 | 45 | 46 | 21 | 36 |
| 10 μf | 50 | 23 | 41 | 46 | 21 | 36 |
| 12 μf | 58 | 27 | 44 | 56 | 17 | 32 |
| 15 μf | 58 | 27 | 44 | 58 | 24 | 38 |
| 16 μf | 58 | 27 | 44 | 58 | 24 | 38 |
| 20 μf | 58 | 35 | 50 | 58 | 24 | 38 |
| 24 μf | 68 | 32 | 56 | 58 | 28 | 42 |
| 25 μf | 68 | 32 | 56 | 58 | 28 | 42 |
| 30 μf | 68 | 32 | 56 | 58 | 35 | 36 |

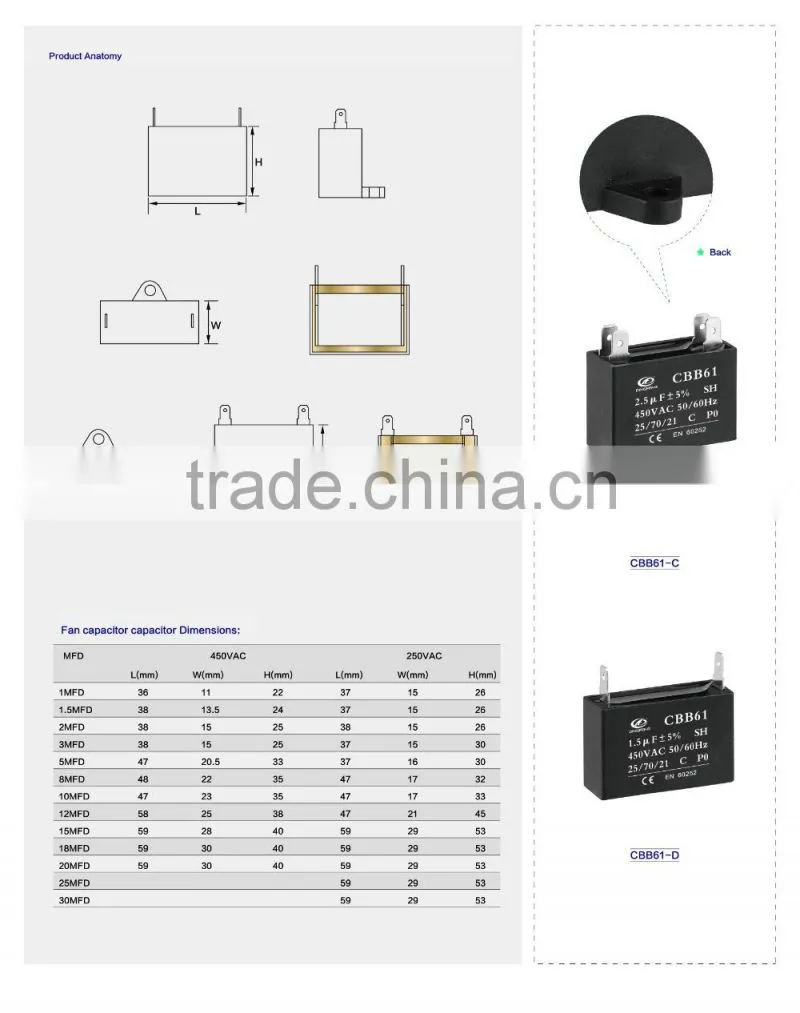

Drawing

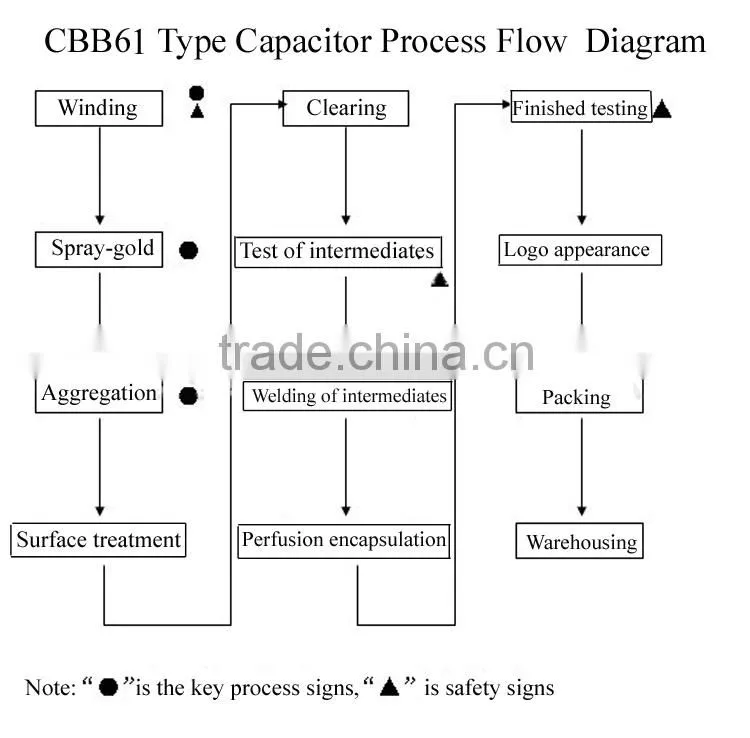

Capacitor Process Flow Diagram
