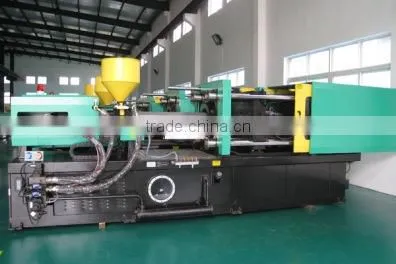

China PET Injection Molding Machine for PET Preform Mould
US$ 1 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China PET Preform Injection Molding Machine for PET Preform MouldUS$ 1 - 70,000MOQ: 1 Set -
Plastic Injection Molding Machine for Plastic Cap MouldUS$ 1 - 100,000MOQ: 1 Set
-
High Speed Performance Plastic Machine Supplier From ChinaUS$ 1 - 100,000MOQ: 1 Set
-
Find Plastic Injection Machines AgentUS$ 1 - 100,000MOQ: 1 Set
-
Plastic Injection Moulding MachineUS$ 1 - 100,000MOQ: 1 Set
Condition
New
Type
Other
Style
Horizontal
Brand Name
JETE
Model Number
JT/PET 230
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
500g
Clamping Force
2300KN
Opening Stroke
475mm
Power(W)
30KW
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Stable performance2. Good price
3. World famous brand machine component
4. One year warranty
PET dedicated injection machine transformed from standard injection machine, but equipped with big diameter screw design and L/D ratio and extended machine framework and also have specialized screw set for PET+FB or slice PET are on request as option. LS machinery is not only supply PET dedicated injection machine, but also offer PET injection molding service, like provide PET injection defects consulting and injection molding technologysupport. We insist on the saying, “we are not offering a machine but a fine solution.”
With the high technology development, we have the ability to handle over PET injection line for PET bottles blowing machine.PET preform moulds, cap moulds, PET dedicated injection machine and other auxiliary machines which serve for injection molding machine. Welcome to contact LS machinery for PET dedicated injection machine, and if you want to set up a factory for PET bottles making line, please don’t hesitate to contact us, we can offer all the devices for a new factory.
if you have any interesting with our plastic injection machine,welcome to contact with us to get more information about our PET injection molding machine.
With the high technology development, we have the ability to handle over PET injection line for PET bottles blowing machine.PET preform moulds, cap moulds, PET dedicated injection machine and other auxiliary machines which serve for injection molding machine. Welcome to contact LS machinery for PET dedicated injection machine, and if you want to set up a factory for PET bottles making line, please don’t hesitate to contact us, we can offer all the devices for a new factory.
if you have any interesting with our plastic injection machine,welcome to contact with us to get more information about our PET injection molding machine.
Skype:maggiexu00
Characteristics of the JT plastic PET injection molding machine
A1,Mould Clamping Unit of the plastic injection moulding machine
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke,efficient and reliable movement.multi-eject F unctions with pressure,speed,position and delay time adjustable are suitable for various molding device according to the requirement of the customer.
A2,Mold Adjusting Unit of the PET injection molding machine
1,Hydraulic driven gear adjusting
2,Stotage type automatic grease lubricating pump
A3,Injection Unit of the PET injection molding machine
Double-leaders supporting,balanced double cylinders injection.The injection screw is directly driven by a low speed high torque hydraulic motor.And it can be got stepless speed.The screw with optimum design enjoys features of wide application,good plasticating and high efficiency.Decompression device can prevent plastic material from dripping.
4,Hydraulic Unit of the PET injection molding machine
This unit composed of imported advanced hydraulic componets.System pressure is controlled by proportional valve.In addition,a quick mold clamping device and fast respond excellent control valves are also fitted on the unit.
5,Electric Unit of the PET injection molding machine
It is adopted special computer of the plastic injection molding machine and advanced CPU controller.which can raise the operating speed of the control system and warn of excess oil temperature to ensure the working accuracy of the injection moling machine
JT/PET series injection machine specification
- 200g PET injection moulding machine
- 400g PET injection moulding machine
- 500g PET injection moulding machine
- 800g PET injection moulding machine
- 1000g PET injection moulding machine
- 1500g PET injection moulding machine
- 2000g PET injection moulding machine
- 2500g PET injection moulding machine
