Plastic Injection Molding Machine for Plastic Cap Mould
US$ 1 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Performance Plastic Machine Supplier From ChinaUS$ 1 - 100,000MOQ: 1 Set -
Find Plastic Injection Machines AgentUS$ 1 - 100,000MOQ: 1 Set
-
Plastic Injection Moulding MachineUS$ 1 - 100,000MOQ: 1 Set
-
China Good Plastic Injection Machines ExporterUS$ 1 - 100,000MOQ: 1 Set
-
High Speed Plastic Thin Wall Container Injection Moulding MachineUS$ 1 - 100,000MOQ: 1 Set
Condition
New
Type
Other
Style
Horizontal
Brand Name
JETE
Model Number
JT50A
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
51
Clamping Force
500KN
Opening Stroke
240mm
Power(W)
8.95KW
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
high strength injection molding machine.uing lif time injection molding machine..
running fast and stability injection machin
Company Information
JETE Machinery Co.,Ltd. with modern and advanced processing equipment, sophisticated machinery manufacturing technology.According to the company development direction, the plastics industry to “ high efficiency, low cost, energy saving, environmental protection ” . Since the establishment of company unremitting pursuit machine structure and function perfectly, as customers processing production of convenient, efficient protection, research and development, the company has system design, training, manufacturing, sales and after sale service network, force pine has constructed the market at home and abroad, we sincerely hope to grow together with customers together, development, to the quality of products and services consumers
if you have any interesting with our plastic injection machine,welcome to contact with us to get more information about our plastic injection molding machine.
Skype:maggiexu00

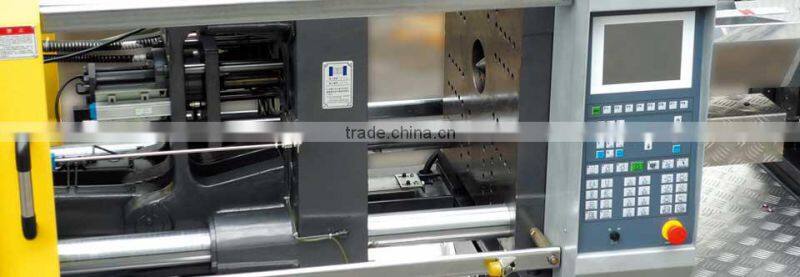

Characteristics of the JT plastic injection molding machine
A1,Mould Clamping Unit of the plastic injection moulding machine
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke,efficient and reliable movement.multi-eject F unctions with pressure,speed,position and delay time adjustable are suitable for various molding device according to the requirement of the customer.
A2,Mold Adjusting Unit of the plastic injection molding machine
1,Hydraulic driven gear adjusting
2,Stotage type automatic grease lubricating pump
A3,Injection Unit of the plastic injection molding machine
Double-leaders supporting,balanced double cylinders injection.The injection screw is directly driven by a low speed high torque hydraulic motor.And it can be got stepless speed.The screw with optimum design enjoys features of wide application,good plasticating and high efficiency.Decompression device can prevent plastic material from dripping.
4,Hydraulic Unit of the plastic injection molding machine
This unit composed of imported advanced hydraulic componets.System pressure is controlled by proportional valve.In addition,a quick mold clamping device and fast respond excellent control valves are also fitted on the unit.
5,Electric Unit of the plastic injection molding machine
It is adopted special computer of the plastic injection molding machine and advanced CPU controller.which can raise the operating speed of the control system and warn of excess oil temperature to ensure the working accuracy of the injection moling machine
JT injection machine specification

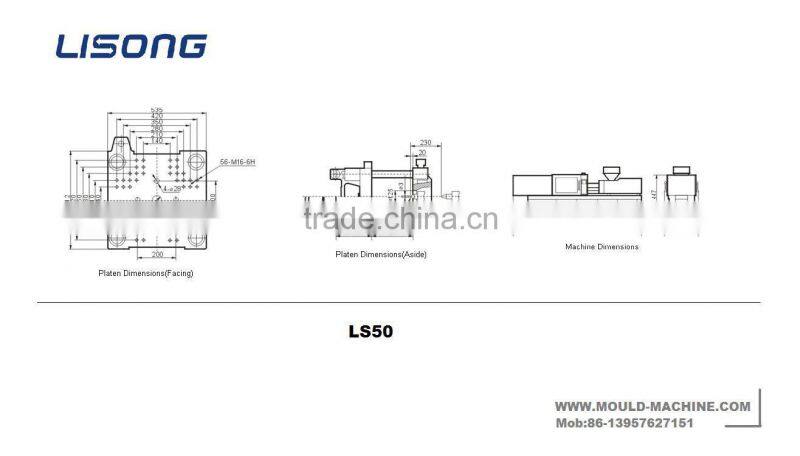

the fixiing drawings for the LS50 injection machine
