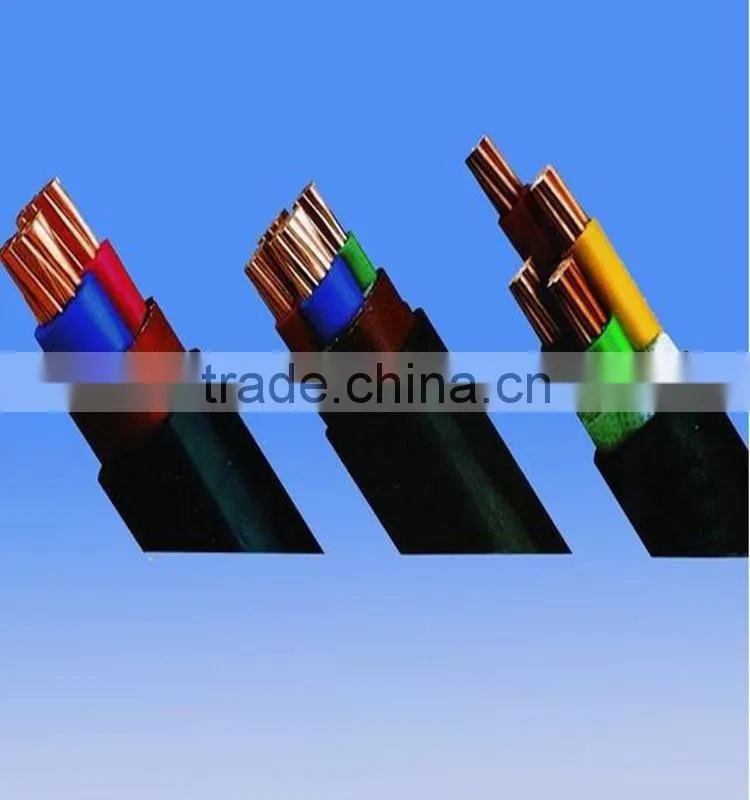

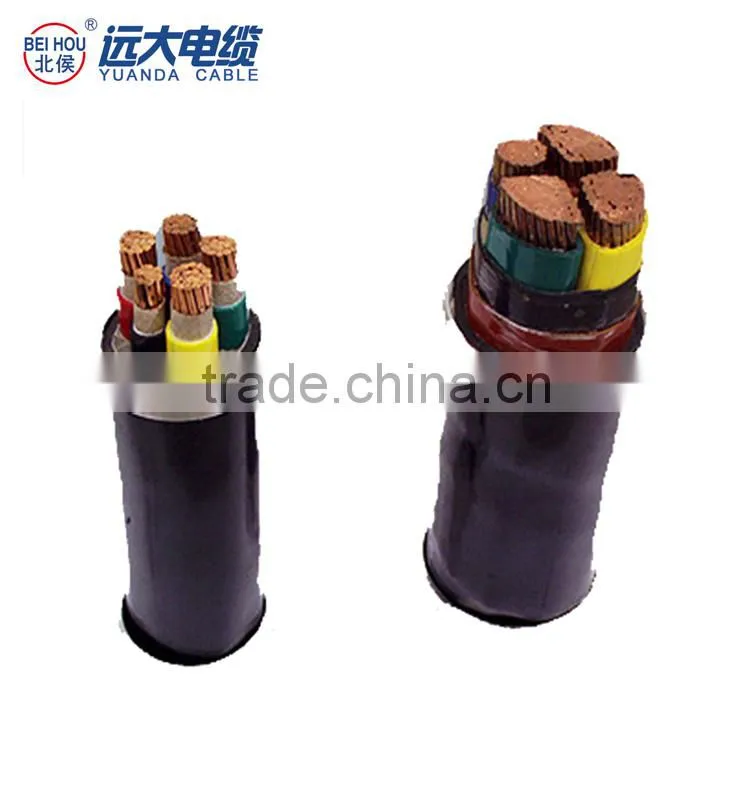

copper XLPE steel wires armoured cables 25mm 50mm 120mm 4 core armoured power cable
About us
1.Professional supplier
2.Reliable quality,best price
3.Strong capacity,fast delivery
4.ISO
Cores and sections
1, 2, 3, 3+1, 3+2, 4, 4+1, 5 and so on.
No. Of Core and Sectional Area(mm2) :
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
Construction:
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)
Sheath: Polyvinyl chloride (PVC)
Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 1000 1200
Operating Features:
1) The maximum conductor operating temperature: 90°C
The maximum temperature of the cable conductor During short circuit (lasting less than 5 seconds) shall not be above 250°C
The laying temperature should be no lower than 0°C for laying the cable.
2) Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Multi-Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
Model |
Name |
Application condition |
YJV YJLV |
Copper (Aluminum) conductor XLPE insulated PVC power cable |
Laying in channel, indoor and pipe or buried in loose soil but can’t bear external force |
YJV22 YJLV22 |
Copper (Aluminum) conductor XLPE insulated steel armored PVC power cable |
Laying in the ground, can bear mechanical external force, but could not bear larger external force |
Features
XLPE insulated power cable do not has excellent electric and mechanical properties,but also has powerful resistance against chemical corrosion, heat resistance and enviromental stress resistance . The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of A, B, C.
|
Nominal Cross Sectional Area Of Conductor (mm2) |
Insulation Thickness (mm) |
Inner Sheath Thickness (mm) |
Steel Tape Diameter (mm) |
Sheath Thickness (mm) |
Approx. Overall Diameter Of Cable (mm) |
Approx. Weight of Cable (kg/km) |
D.C resistance of Conductor (ohm/km) |
Testing Voltage A.C. |
Current Rating |
|||||
|
In air (A) |
Direct in Soil(A) |
|||||||||||||
Cu |
Al |
Cu |
Al |
Cu |
Al |
Cu |
Al |
|||||||
3x25 |
3.4 |
1.6 |
2x0.5 |
2.6 |
47 |
3010 |
2554 |
≤0.727 |
≤1.20 |
21 |
140 |
110 |
140 |
110 |
3x35 |
3.4 |
1.6 |
2x0.5 |
2.8 |
50 |
3498 |
2847 |
≤0.524 |
≤0.868 |
21 |
170 |
135 |
165 |
130 |
3x50 |
3.4 |
1.8 |
2x0.5 |
2.8 |
53 |
4135 |
3205 |
≤0.387 |
≤0.641 |
21 |
200 |
155 |
195 |
150 |
3x70 |
3.4 |
1.8 |
2x0.5 |
3.1 |
56 |
4958 |
3655 |
≤0.268 |
≤0.443 |
21 |
250 |
190 |
240 |
185 |
3x95 |
3.4 |
2.0 |
2x0.5 |
3.1 |
61 |
5974 |
4206 |
≤0.193 |
≤0.320 |
21 |
305 |
235 |
290 |
225 |
3x120 |
3.4 |
2.0 |
2x0.5 |
3.2 |
64 |
6969 |
4736 |
≤0.153 |
≤0.253 |
21 |
350 |
270 |
330 |
225 |
3x150 |
3.4 |
2.0 |
2x0.5 |
3.6 |
69 |
8161 |
5370 |
≤0.124 |
≤0.206 |
21 |
395 |
305 |
365 |
285 |
3x185 |
3.4 |
2.2 |
2x0.5 |
3.6 |
72 |
9417 |
5975 |
≤0.0991 |
≤0.164 |
21 |
450 |
350 |
415 |
320 |
3x240 |
3.4 |
2.2 |
2x0.5 |
3.6 |
78 |
11340 |
6874 |
≤0.0754 |
≤0.125 |
21 |
525 |
410 |
480 |
375 |
3x300 |
3.4 |
2.2 |
2x0.8 |
3.8 |
84 |
14247 |
8665 |
≤0.0601 |
≤0.100 |
21 |
595 |
470 |
540 |
425 |
3x400 |
3.4 |
2.2 |
2x0.8 |
3.9 |
90 |
17510 |
9948 |
≤0.0470 |
≤0.0778 |
21 |
705 |
555 |
625 |
485 |
If you need more technical data about XLPE insulated power cable, please do not hesitate to contact us.
1).Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.
Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
We always adhere to the principle of "quality first, customer satisfaction first". If you have any questions, please feel free to contact us through e-mail, phone, and trade message or other ways.
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Zhengzhou Yuanda Cable Co. Ltd. located in the middle of China, can deliver qualified cables and wires in very short lead time for each clients.
Yuanda cable products:
1. XLPE Power Cables
2. Building Wires & PVC Cables
3.Rubber &Welding Cables
4.Flame- Retardant/LSZH Cables
5.Aerial Bundled Cable (ABC)
6. Control Cables
7. Aerial Cables
8.CAT5E,CAT6 Network Cable
10.Rubber Cables
11.Plastic Insulated Cables
12. Telephone and TV lines
13. Sockets and Switches
14. Cables and Wires customized
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
