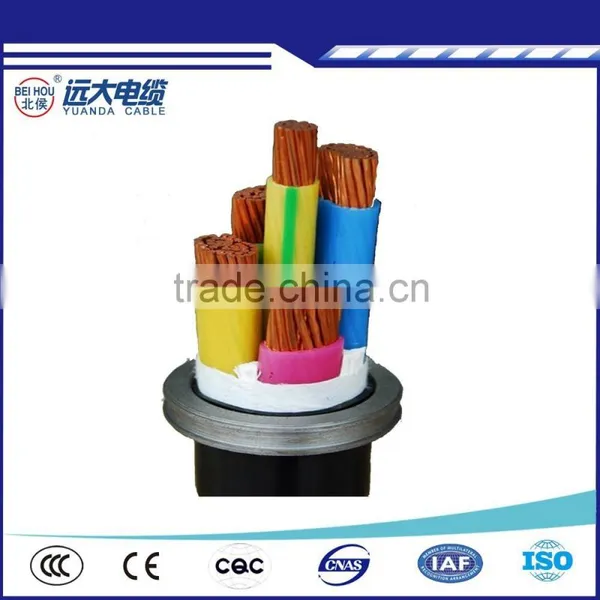

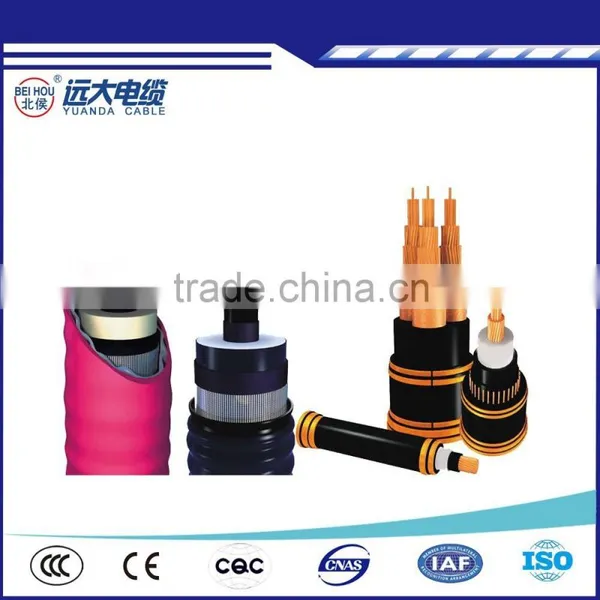

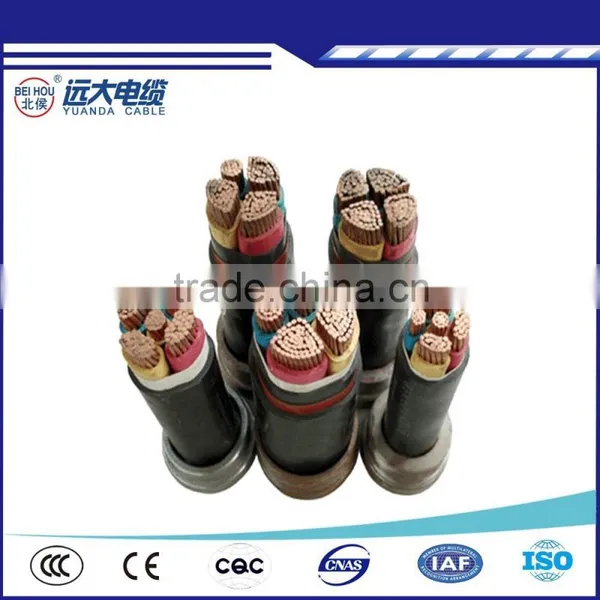

Help CenterExtruded XLPE Insulation Electric Cable With Rated Voltage From 0.6/1KV to 8.7/15KV
Related Products
-
XLPE/PVC/AWA CableUS$ 1 - 10MOQ: 1000 Meters -
Copper Conductor XLPE Insulated PVC Jacket Power Cable of Rated Voltage 0.6/1KVUS$ 1 - 10MOQ: 1000 Meters
-
XLPE Insulated With Copper Conductor Power Cable of Rated Voltage 0.6/1KVUS$ 1 - 10MOQ: 1000 Meters
-
Copper Conductor Material and Stranded Conductor Type XLPE Insulated From 26 up to 45 kV High Voltage Energy CablesUS$ 1 - 10MOQ: 1000 Meters
-
High Voltage Copper and Aluminum Conductor XLPE Insulated Armoured Electrical CableUS$ 1 - 10MOQ: 1000 Meters
Sketches of product construction
1,Conductor 4,Insulation screen 7,Separator(Inner Cover)
2,Conductor Screen 5,Metallic Screen 8,Armour
3,XLPE Insulation 6,Filler 9,Outer Sheath
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 90℃
Conductor Short circuit temperature
Not exceeding 250℃ . (Max. Duration 5 seconds)
Bending radius:
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable (mm)
Installation temperature:
The lowest temperature of installation is 0 ℃.
Laying conditions and basic parameters for calculating current ratings:
Method of laying Ambient temperature
In air 40℃
Direct burial 25℃
Soil thermal resistivity 1.0℃· m/W
Layout of single core cables: In parallel
(Spacing side by side: 1D D=overall diameter)
Scope of cables Table
Type |
No . of |
Rated voltage(KV) |
||||
0.6/1 |
1.8/3 |
3.6/6 |
6/6 6/10 |
8.7/10 |
||
Nominal area of conductor (mm2) | ||||||
YJV |
1,2,3, |
1.5-630 |
10-400 |
25-400 |
25-400 |
25-400 |
XLPE Insulated Power Cable
Type, description and main applications Table 2
Type |
Description |
Main application |
YJV |
Cu or AL conductor |
For laying indoor and outdoor, |
YJV22 YJLV22 |
Cu or AL conductor |
For laying underground, |
YJV32 YJLV32 |
Cu or AL conductor |
For laying under ground, |
