Application
The cables are designed for high building,subway, computer center, broadcasting and television center , offshore oil platform,ship,nuclear power station and other places where higher limit requirements of halogen gases and smoke density released by combustion of cables is requested.

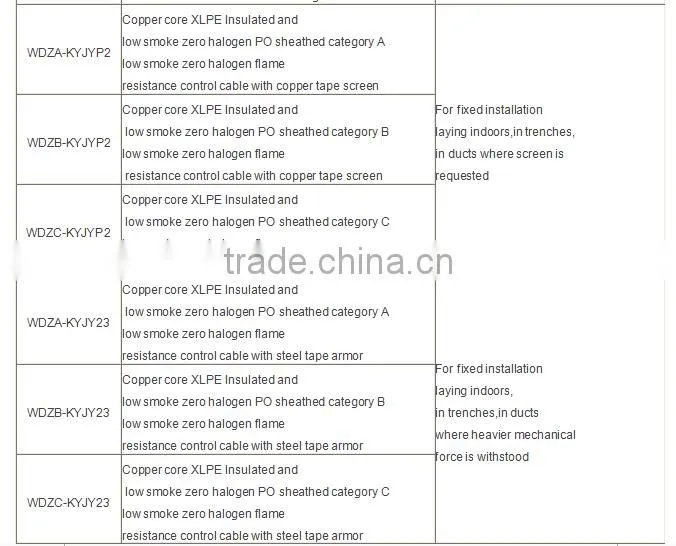

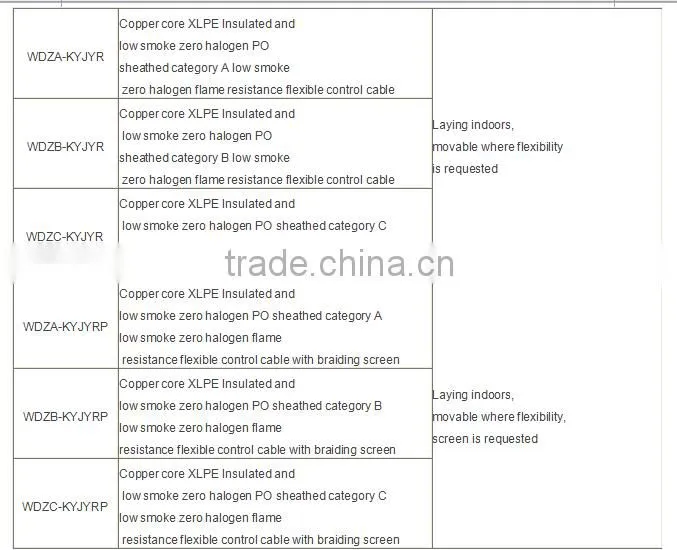

Type and description
Operating features
4.1 Rated voltage Uo/U is 450/750V.
4.2 Permissive continuous working temperature of conductor is 90℃.
4.3 The lowest installation temperature of cable is 0℃ .Min. Permissive bending radius is
For cables without armor,it should be not less than 6 times of overall diameter of cable.
For cables with armor or copper tape screen,it should be not less than 12 times of overall diameter of cable.
For flexible cables with screen,it should be not less than 6 times of overall diameter of cable.
Main technical requirements

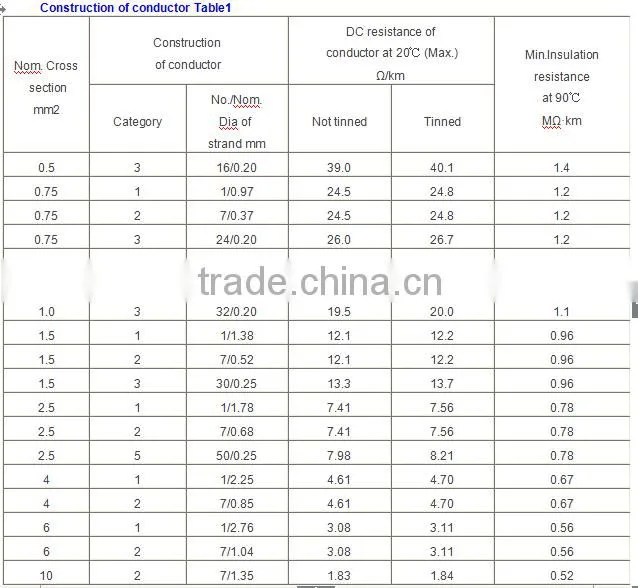

5.1 D.C.resistance of conductor at 20℃ is in accordance with table 1.
5.2 Insulation resistance of cable is in accordance with table 1.
Packaging&Shipping:

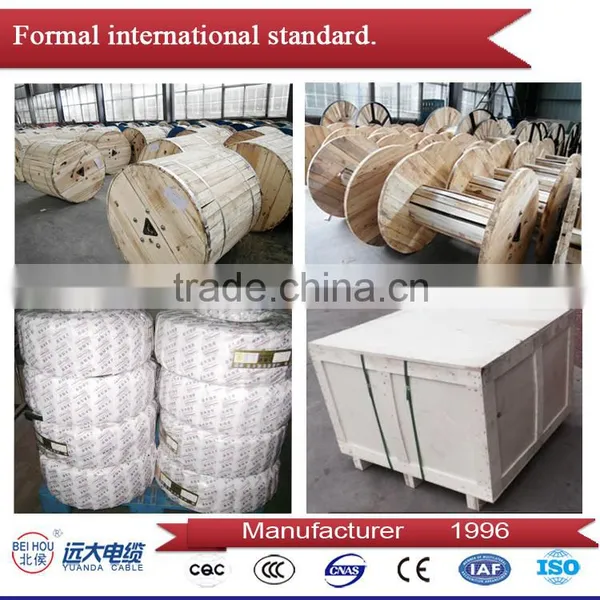

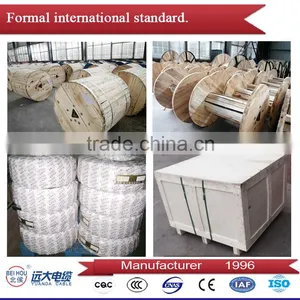

Packaging&Delivery:
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Company Profile:
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Factory Pictures:
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
FAQ
1.Are you a manufacturer or trading company?
We are a manufacturer.
2. What's your payment terms?
T/T ,L/C ,D/P ,D/A ,OA .
3. What's your delivery time?
Usually we will arrange the shipment in 7 -15 days.
4. How about the validity of the products?
Gunranteed 3 years.
5. What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , Health certificate and Origin certificate. If your markets have any special requirements, let us know.
6. What is loading port?
Usually is Shanghai,Qingdao or Tianjin.
