XLPE Insulated Electrical Cable For Rated Voltage 3.6/6kV~26/35Kv

XLPE Insulated Electrical Cable For Rated Voltage 3.6/6kV~26/35Kv

Specifications

1.Electric wire and cable above 0.6/1KV
2. PVC insulation.
3.1-5cores,0.75mm²-630mm².
4. IEC, BS, VDE, AS/NZS, UL, etc.

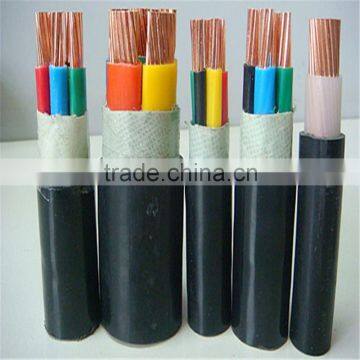

XLPE insulated 4-core copper cables are used in general purpose, such as building wire for power, lighting and control. Some wires are used for electrical appliances, suitable for use in conduct and fixed and installation protected.

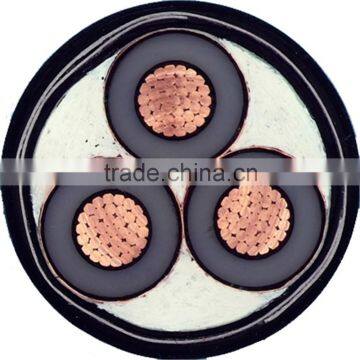

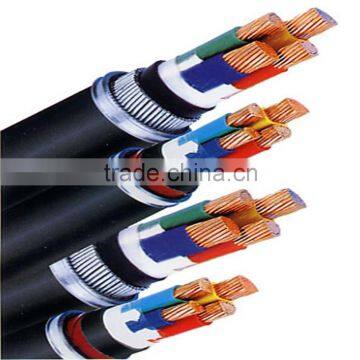

Sketches of product construction

1,Conductor                  4,Insulation screen      7,Separator(Inner Cover)

2,Conductor Screen     5,Metallic Screen         8,Armour
3,XLPE Insulation        6,Filler                          9,Outer Sheath

Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 90℃
Conductor Short circuit temperature
Not exceeding 250℃ . (Max. Duration 5 seconds)
Bending radius:
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable (mm)
Installation temperature:
The lowest temperature of installation is 0 ℃.
Laying conditions and basic parameters for calculating current ratings:
Method of laying             Ambient temperature
In air                            40℃
Direct burial                          25℃
Soil thermal resistivity 1.0℃· m/W
Layout of single core cables: In parallel
(Spacing side by side: 1D D=overall diameter)

Scope of cables Table

XLPE Insulated Power Cable
Type, description and main applications Table 2

300/300V or 450/750V  low voltage electric wire cable

1.Uo/U: 300/300V,450/750V,0.6/1KV

2.Standard: IEC60227,BS6500,VDE0281,GB/T5023,JB/T87

3.Max. working temperature: 70 °C,90 °C ,105 °C and 125 °C as per requirement

4. Conductor: Class 1/2 Plain annealed copper wires or strands

5.Insulation:PVC, XLPE or LSZH

6.Cores:1-5 cores

7.Conductor nominal section: 0.75mm²—630mm²
8.Sheath: PVC, XLPE or LSZH

9.Color: Brown, Grey, Black, Blue, Green, Yellow or as request.

10.Flame retardant, fire resistance or low smoke halogen free or as request.

11.100 meters per roll or as request.

12.Certificate: ISO9001/ISO14001/CCC.

13.OEM can be available.

14.BEIHOU cables are sold very well all over the world, enjoys good reputation due to the top quality, competitive price and best services.

Remark: The cable has the feature of flame retardant, fire resistance and other properties .

we can manufacture cables according to clients detail requirements. If you have any demands, please feel free to contact us at any time. Tel:0086-0371-55699718

Application

Electric cables are applied to electric appliances, instruments, telecom devices and construction with rated voltage up to and including 450/750V, and used to electric power transmission and distribution lines with AC rated voltage 0.6/1KV. They mainly cover 450/750V PVC insulated single core electric wire, 450/750V PVC insulated and sheathed single core electric wire, 450/750V PVC insulated and sheathed flat cable, 300/500V PVC insulated and sheathed flexible cable, 0.6/1KV PVC insulated and sheathed power cable, 0.6/1KV XLPE insulated and PVC sheathed power cable.

Main Manufacturing Procedure:

1.Copper wire drawing and annealing.

2.Copper wire stranding.

3.PVC insulation extruding.

4.Cores Twisting.

5.Outer sheath extruding and labeling.

6.Spooling.

Quality and service:

Our motto: “Customer Supreme, Quality First”, Zhengzhou Yuanda Cable wins customer trust as follows:

1.Quality control strictly follows ISO9001:2008 and ISO14001:2004, and all products we supplied are totally unused and use best raw materials by first-class techniques, and are carefully tested and qualified by all specified testing items.

2.Our company promises to offer best after-sale services to all customers. The service for cable fixation, installation and testing are available at customer’s request, if necessary, we can provide technicians to give detail instructions. Any problems on quality, we will repair or replace the defected products and the concerned expense or loss will be at our side.

3. Our company guarantees to deliver products in compliance with the bidding documentation.

4.Our company promises to offer cooperation and services according to the binding contract and requirements of supervision, testing for products.

Packaging & Shipping

1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.

2).Treated wooden/steel-wooden drums for big diameter cables.

3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.

Our services:

Shipping:

1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).

2.The big quantity will ship by sea.

Feedback:

We will begin to manufacture products and leave feedback once payment received from clients after we reach the agreement.

If you have any problems with your order, we are happy to find an amicable resolution with your side.

Zhengzhou Yuanda Cable Co., Ltd

Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters

Fixed Assets: USD 200 million

Number of Employees: more than 1,000 staffs

Annual production Capacity:100,000tons.

Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.

Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.

Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.

Yuanda Cable Products:

1. XLPE Power Cables Up to 220kV

2.Building Wires & PVC Cables (CE,IEC Certificate)

3.Rubber,Mining&Welding Cables (CE,IEC Certificate)

4.Solar Photovoltaic Cable (TUV Certificate)

5.Fire Resistant/LSZH Cables

6.Aerial Bundled Cable (ABC)

7.ACSR,AAC,AAAC Bare Conductor

8.CAT5E,CAT6 Network Cable

9.Control&Instrumentation Cables

10.Silicone Rubber Cables

11.Fluorine Plastic Insulated Cables

12.Customized Cables & Wires

1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.

3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.

5. Which payment terms do you accept?

A: The payment term varies with different price level and total value of every contract.

Common terms are as follows:

a.100% TT advance for small amount orders.

b. T/T 30% deposit, balance payment negotiable accordingly.

6. Have you ever supplied cables to our country?

A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.

7. What is your MOQ?

A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us  directly for detail information if you have any specific cable requirement.
