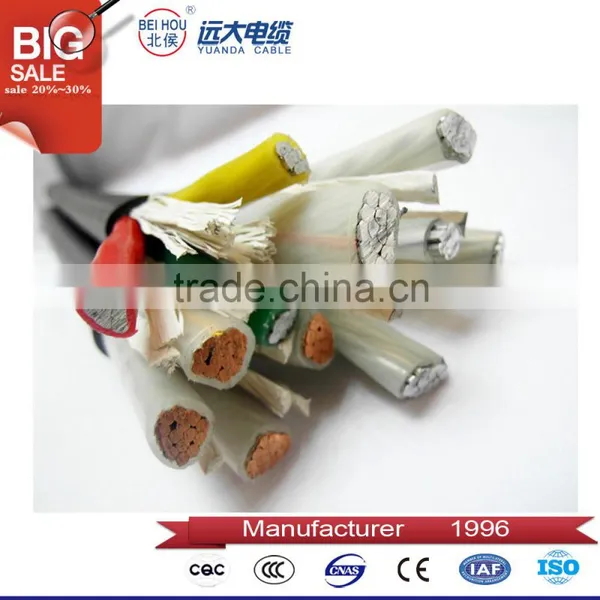

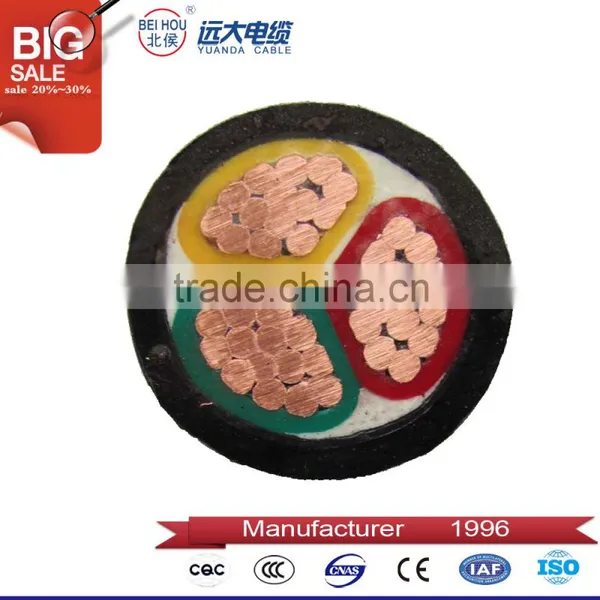

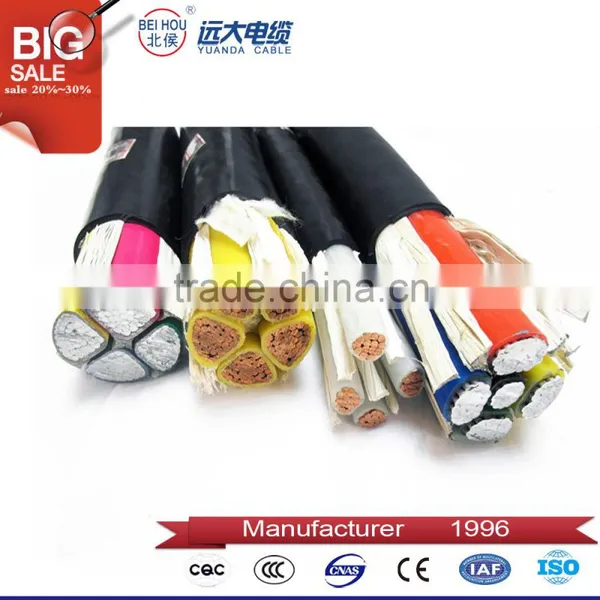

Help CenterCopper Conductor XLPE Insulated PVC Insulation 3x10mm2 Electric Cable
Related Products
-
Four Phase Cable 0.6/1kv 120mm PVC Cable/copper Electrical Power Cable WireUS$ 1 - 10MOQ: 1000 Meters -
1 to 5 Cores Factory Price PVC Insulated PVC Sheathed Power Cable Electrical Power CableUS$ 1 - 15MOQ: 500 Meters
-
4 Core Steel Wire Armoured Copper Conductor PVC Insulated Power Cable/Underground Power CableUS$ 1 - 15MOQ: 500 Meters
-
Low Smoke Halogen-free Electric Wire/low Smoke Power CableUS$ 2 - 15MOQ: 1000 Meters
-
4 Core Copper Conductor XLPE Insulated and Low Smoke Zero Halogen PO Sheathed Category Power CableUS$ 2 - 15MOQ: 1000 Meters
XLPE Insulated Electrical Cable For Rated Voltage 3.6/6KV~26/35KV
For XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermoplastic PE is transformed into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent electrical property are still retained.
The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which resistance is higher than that of PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Product standard
The product is manufactured according to the standard of GB/T12706-2002 “Extruded solid dielectric power cables for rated voltages from l KV (Um=1.2KV) to 35KV (Um=40.5KV)”or IEC, BS, DIN and ICEA upon request.
Applications
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.
Operating characteristics
Rated power-frequency voltage U0/U: 3.6/6KV~26/35KV.
1.Max. Permissible continuous operating temperature or conductor:90℃.
2.Max. short-circuit temperature of conductor shall not exceed 250℃. (5s maximum duration)
3.The ambient temperature under installation should not below 0℃.
4.The ending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a three-core cable should not less than 15 times of the cable diameter.
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of U0/U (Um) KV. Where:
U0—The rated power-frequency voltage between conductor and earth or metallic screen, for which the cable designed;
U—The rated power-frequency voltage between conductors, for which the cable designed;
Um—The maximum value of the “highest system voltage” for which the equipment may be used.
Type of cable
Type |
Designation |
Application |
YJV |
Copper conductor, XLPE insulated and PVC sheathed power cable. |
For laying indoor, in tunnedls or cable trench, unable to bear external mechanical forces. |
YJLV |
Aluminum conductor, XLPE insulated and PVC sheathed power cable. |
|
YJY |
Copper conductor, XLPE insulated and PE sheathed power cable. |
|
YJLY |
Aluminum conductor, XLPE insulated and PE sheathed power cable. |
|
YJV22 |
Copper conductor, XLPE insulated, steel tape armored and PVC sheathed Electrical cable |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force
|
YJLV22 |
Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed Electrical cable |
|
YJV23 |
Copper conductor, XLPE insulated, steel tape armored and PE sheathed electrical cable |
|
YJLV23 |
Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
|
YJV32 |
Copper conductor, XLPE insulated, steel wire armored and PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
|
YJLV32 |
Aluminum conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
|
YJV33 |
Copper conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
|
YJLV33 |
Aluminum conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
Packaging&Shipping:
Packaging&Delivery:
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Many Buyers Rely on our service
15 years of export experience
- Free samples ready in 2 days
- Your inquiry will be replied to within the hour
- Your label can be print on cable according to your requirements
- Cargoes photo before and after loading into container after shipment with e mail
- Professional documents and strong seawothy packaging
- According to your need specification produce the cable
Company Profile:
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Factory Pictures:
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
FAQ
1.Are you a manufacturer or trading company?
We are a manufacturer.
2. What's your payment terms?
T/T ,L/C ,D/P ,D/A ,OA .
3. What's your delivery time?
Usually we will arrange the shipment in 7 -15 days.
4. How about the validity of the products?
Gunranteed 3 years.
5. What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , Health certificate and Origin certificate. If your markets have any special requirements, let us know.
6. What is loading port?
Usually is Shanghai,Qingdao or Tianjin.
We products are 2% cheaper than the competitor
Send the inquire and get the quotation,Save time,Save money
