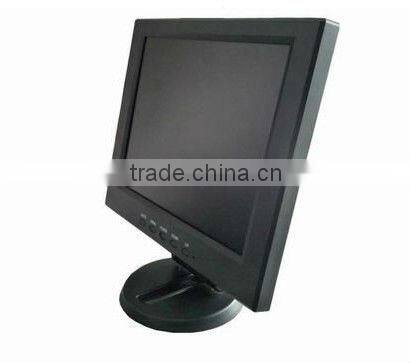

bnc 10 inch lcd monitors

Model NO.

JY-100ALCD

Panel size

10 inch TFT-LCD

Visual size

210*160mm

Standard Resolution

800*600

Number of Colors

16.2M

Brightness

LCD panel:300cd/m²

Response time

8ms

View angle

Horizontal:160°

Vertical:130°

Contrase ratio

400:1

Video input format

(analog) RGB

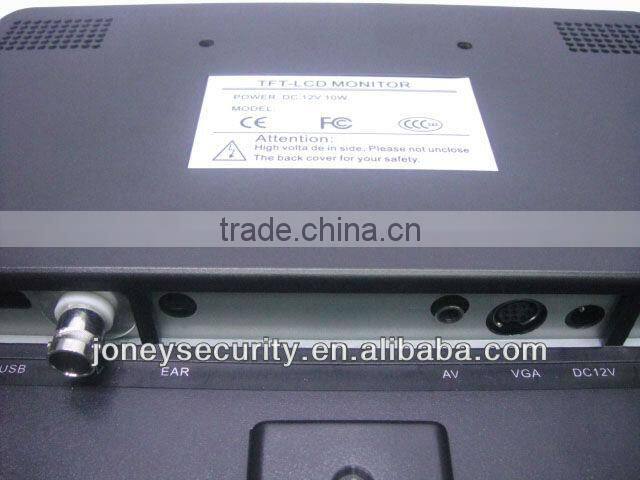

Connector

VGA (D-sub)

Frequency

30~80KHz/60~75Hz

Power supply

External Power Supply:100 to 240V AC

(DC 12V)

Operation Environment

Workable Temperature:-10 to 60°C

Storage temperature:-20 to 70°C

Operate relative humidity:20% to 80%;

storage relative humidity:10% to 90%

Net weight

2.5 Kgs/pcs

Gross weight

3.0 Kgs/pcs

Power consumption

Max 30W

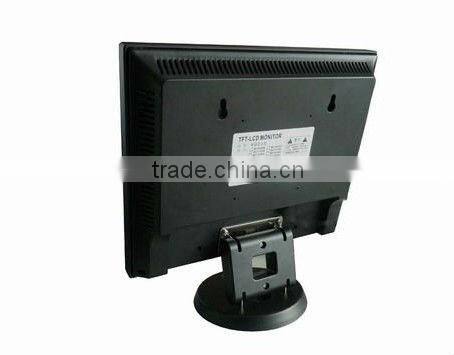

Setup (optional)

1) provide wall brackets for wall-mounting,

VESA 75mm&100mm

2) provide base to support the monitor

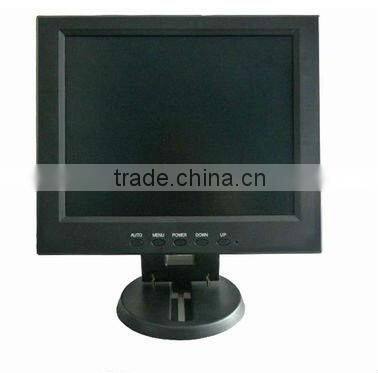

OSD  control

AUTO,+,POWER,-,MENU

brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset

Certificate

CE, ROHS

Warranty

1 year,provide spare parts

Monitor size

(not include base)

267*215*50mm

Each unit box size

333*135*295mm

Package size

6pcs in a carton,carton size:650*450*390mm
