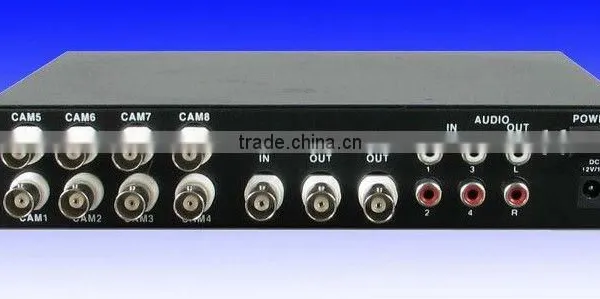

CCTV Video Quad Processor-4/8/16channel

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Brand Name:

Model Number:

QD-008

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name JY

Model Number QD-008

Specifications

8Ch Video Quad Processor
1.audio input&output
2.motion alarm
3.2,4,8 quads display option
4.IR remote control

8channels Video Quad Processor

Product Characteristic

High-resolution picture quality
NTSC/PAL Video Format
English OSD
2,4.8,PIP quads display optional
4channels audio input ,2channels audio output
Channel quality can be adjustable Independent.
Quad switching automatically
Two PIP function, one of the PIP (picture in picture) display position can be adjustable and the channel can be adjustable also.
Electronic zoom function, you can choose any area to enlarge
High-quality screen freeze function, support multi-screen display multiple channels simultaneously freeze screen function
Support alarm function after picture loss, support motion detection alarm
60 groups of event records (mobile surveillance and alarm screen missing records)
Can be edit the any channel by freely
The screen position can be adjustable and the alarm time can be setting.
Support IR remote control

Technical Parameter

Model	JY-QD008
Name	8 channels Color Quad Processor
Video format	NTSC/PAL
Resolution	PAL 720×576,NTSC 720×480
Screen refresh rate	PAL: 25 frames / second; NTSC system: 30 frames / sec
Video input	8 channels BNC 1.0Vp-p 75Ω
8 Quad total resources	PAL: 150 frames / second; NTSC system: 180 frames / sec
Audio Input	4 Channels Audio input(RCA)
Audio Output	42Channels Audio output(RCA)
Video adjustable	Brightness, contrast, saturation, hue, sharpness adjustment
Automatic switching time	0~99Sec
Event record	Support 60 Group Event record
Alarm Output	No
OSD	English
Power supply	DC12V 6W
Input voltage	5.0W(400mA)
Temperature range	-10°C~ +60°C
