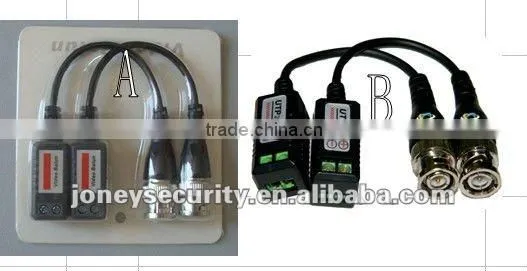

CCTV Accessories-1 Channel Passive Video Balun UTP Video Transmitter/Receiver

CCTV Accessories-1 Channel Passive Video Balun UTP Video Transmitter/Receiver thumbnail-1
CCTV Accessories-1 Channel Passive Video Balun UTP Video Transmitter/Receiver photo-1
US$ 0.7 - 1.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JY
Model Number:
baluns
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JY
Model Number baluns

Specifications

1 channel Passive video balun UTP Video transmitter/Receiver

Passive Balun Transceiver 1 channel UTP Video Balun

 Features:

  1. Quality color and B&W video signals over
  2. 1000 feet (330 m) of unshielded twisted pair wires
  3. NTSC, PAL , and SECAM video formats
  4. No power required
  5. 60 dB crosstalk and noise immunity
  6. Compact size and easy installation
  7. Compatible with all qualified UTP cameras
  8. Dimensions: 46mm×14mm×13mm (including BNC)
  9. Weight: 18g

Specification:
  1. Frequency response: DC to 8 MHz
  2. Attenuation: 0.5dB typ
  3. CMRR: 60 dB
  4. Impedance: BNC: 75 ohms , Terminal: 100 ohms
  5. Coax: 75 ohms
  6. Twisted Pair:100 ohms
  7. Operating: -10°C to +70°C
  8. Storage: -30°C to +70°C
  9. Humidity: 0 to 95%
  10. Wire Type: Unshielded Cat-5 or above twisted pair wire
  11. Unshielded Twisted Pair: 24-16 AWG
  12. Category Type: 5or better
  13. DC Loop Resistance: 52 ohms per 1,000 ft
  14. Differential Capacitance: 19pF/ft  max
  15. Material: ABS Plastic
