Specifications
1.3.5 inch LCD screen2.Digital multimeter/Optical power meter/PTZ Controller / Video signal generator / UTP cable tester/Audio
3.5 inch LCD CCTV Camera tester Digital multimeter Optical power meter
Feartures ip camera tester cctv tester ip camera tester
*3.5" TFT LCD (Supply 12V 1A Power to Camera)
*CCTV system installation and maintenance
*Dome camera and All in one camera testing
*The CCTV transmitting channel testing
*Digital multimeter/Optical power meter/PTZ Controller / Video signal generator / UTP cable tester/Audio tester
*Battery works 12 hours
Specification ip camera tester cctv tester ip camera tester
Model |
JY-T895 |
Audio input test |
test the pickup and other audio equipments on the front-end |
Battery |
Built-in 3.7V Lithium polymer battery ,3000mAh |
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
Color bar generation |
Output one channel PAL/NTSC colorbar video signal for testing monitor or video cable. |
Communication |
RS232, RS422 simplex and RS485 |
Data Monitor |
Captures and analyzes the command data from controlling device |
DC12V power output |
Output DC12V1A power for camera |
Dimension/Weight |
176mmx94mmx36mm/1.3kg |
Display |
3.5 inch digital TFT-LCD ,960 x 240 resolution |
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
Level test |
Video signals measured in IRE or mV |
Low Consumption |
Energy saving technology |
Multimeter |
Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. |
Optical power meter |
used for optic fiber CCTV monitor system, CATV system, optic fiber communication networks deployment and test |
Power Adapter |
DC5V, 2A |
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
Rechargeable |
After charging 3-4 hour, working time lasts 12 hours |
Signal mode |
NTSC/PAL (Auto adapt) |
UTP cable test |
Test UTP cable connection status and display in the screen. Read the number of the test box. |

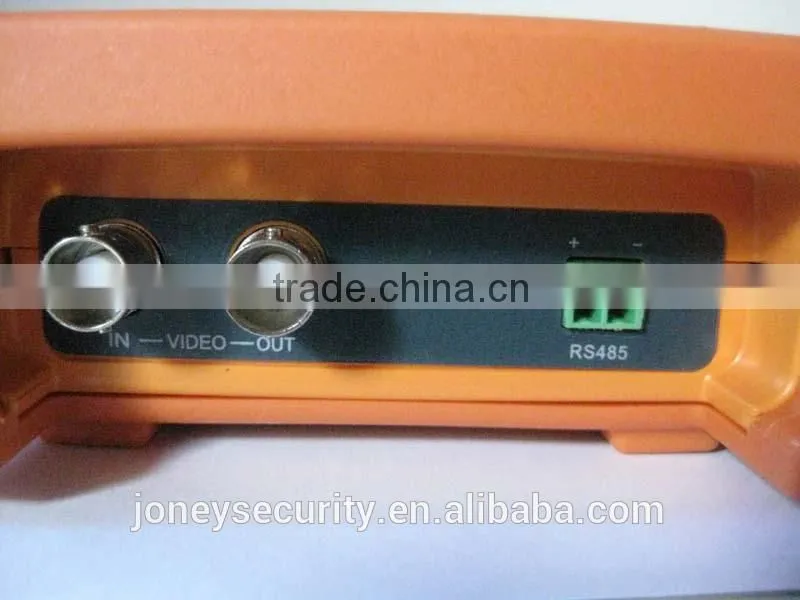

Video IN/OUT |
1 channel BNC Input & 1 channel Output |
Video Output Mode |
1.0 Vp-p |
Working Humidity |
30%-90% |
