PVC Double Pipe Machinery,PVC Double Pipe Plant, 20-50mm PVC Double Pipe Manufacturing Line/ Double Pipe Making Line/Double Pipe Machinery
PVC pipe extrusion line is manufactured by our company in combination with advanced technologies of western Europe.
Features of PVC pipe extrusion line:
1. The host is a SJSZ51/105or SJSZ65/132 conical twin-screw extruder with a double pipe but single control stainless steel spraying forming machine which can assist avoiding a series of troubles caused by adjustment of any one tube.
2. This automatic single-control double hauling machine and cutting machine are fully integrated with the double sizing techniques, which make the operation more flexible and bring more benefits of this single-control, double-pipe technique to you
3. Radius of these double-pipe extruder ranges betweenφ16-φ50, so even for a small radius pipe production, it can also achieve a high output.
4. Line speed:use SJSZ51 extruder 2-12m/min
use SJSZ65/132 extruder 2-16m/min
Configuration:
Hopper Loader |
1 set |
SJSZ51/105 or SJSZ65/132 main extruder |
1 set |
Double Vacuum forming tank |
1 set |
Ink Printer |
2 set |
Double Haul –off unit together with cutter |
1 set |
Stack |
1 set |
Moulds(16mm, 20mm,25mm,32mm,40mm,50mm) |
6 sets |

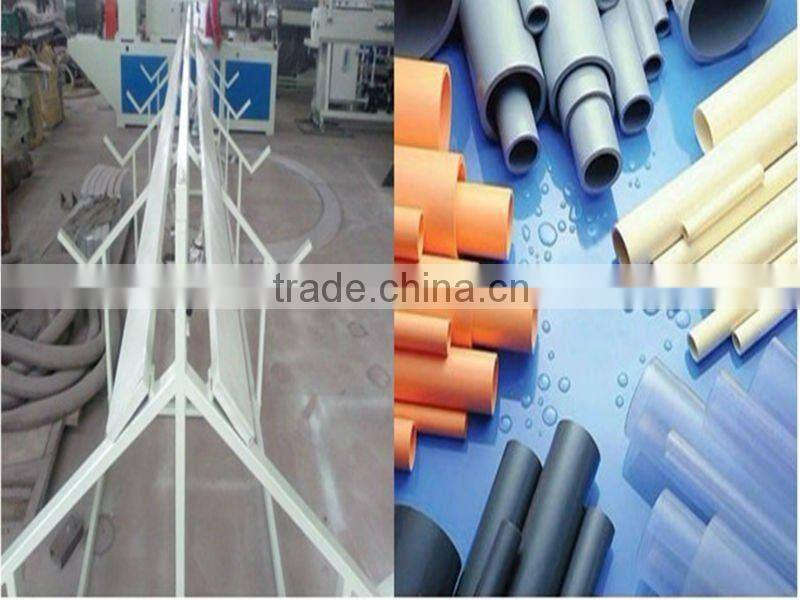

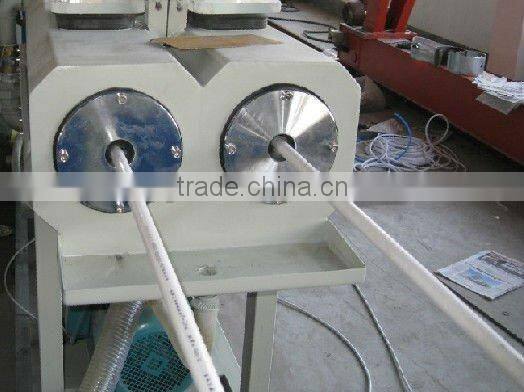

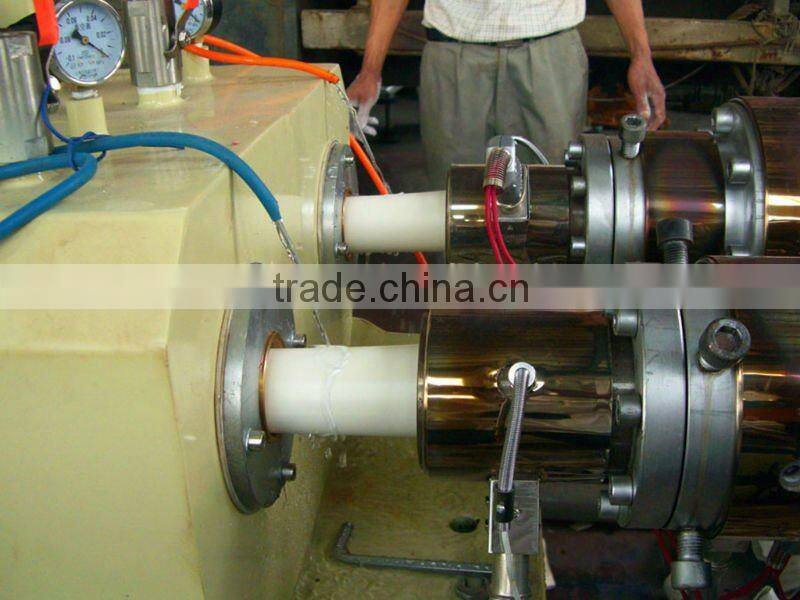

Double pipe machine photo show
