Production Description

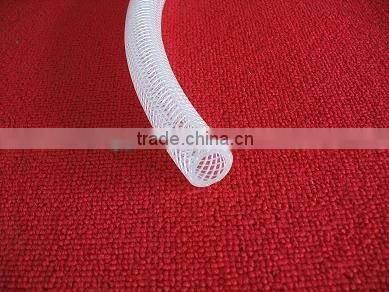

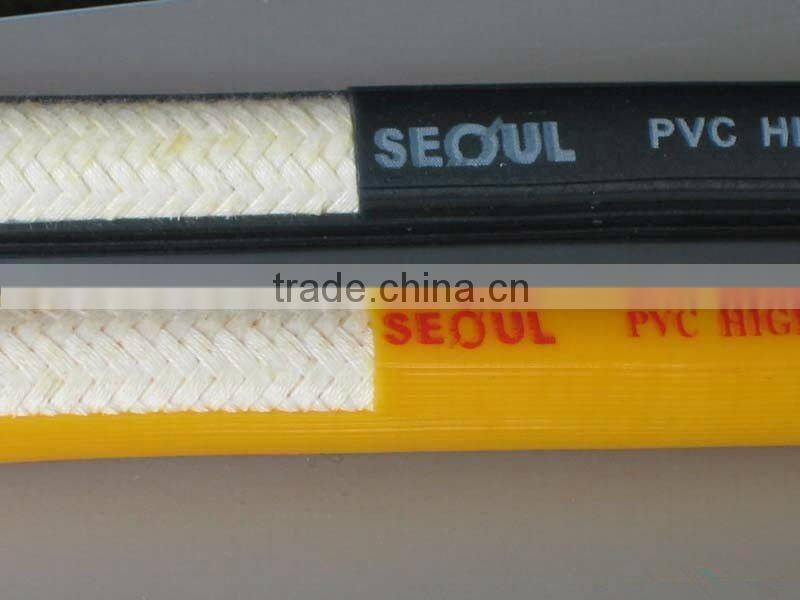

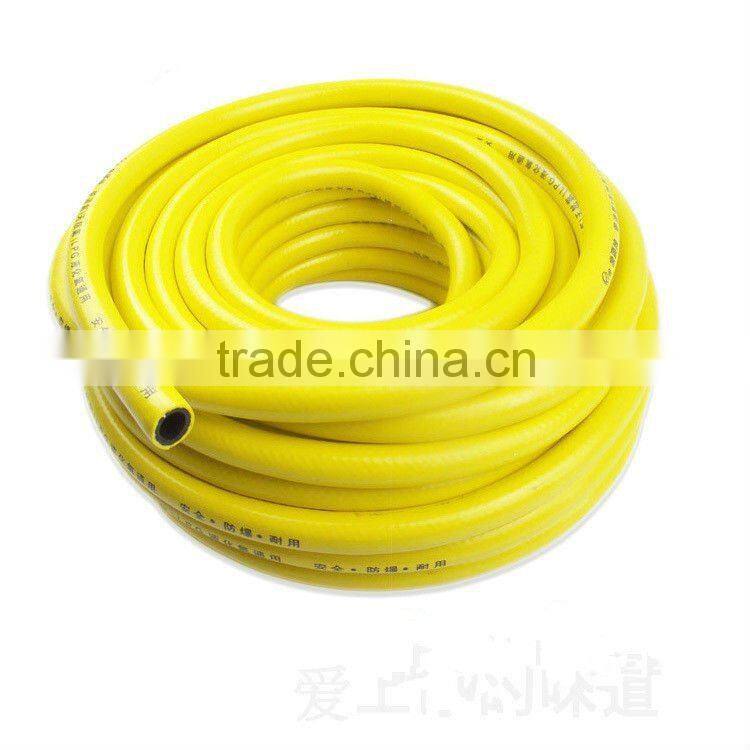

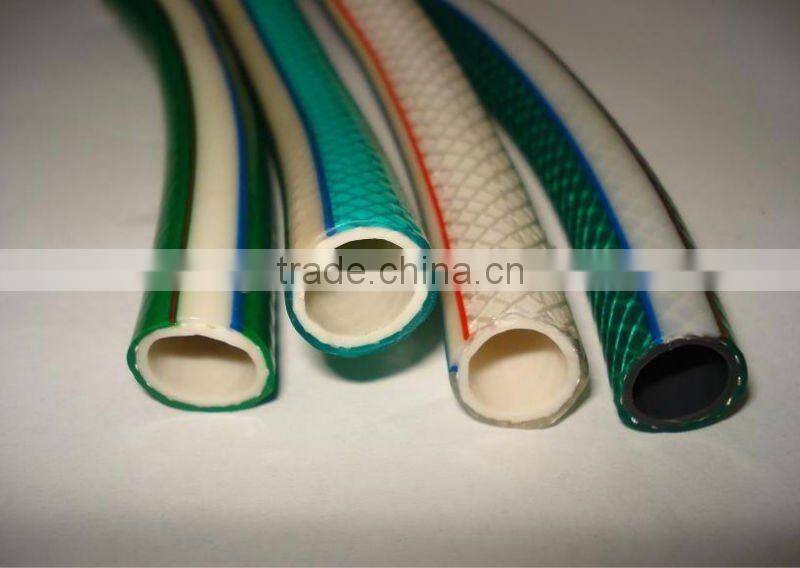

PVC fiber reinforced hose also named PVC network tube, commonly known as plastic snakeskin tube, transparent, portable, with high tensile strength, and good resistance to high pressure, hardening and erosion, beautiful looks, and nontoxicin foodstuffs and sanitation lines
main uses
It is really the best choice for conveying air ,water, gas, oil and some other liquid and gas material with its working temperature ranges from-5 to 65.
now also widely used in pouring the garden ,lawn.Suitable for conveying the pressure or corrosive gas, liquid .widely used in the machinery , coal mineral , petroleum .chemical industry ,agriculture irrigation ,construction, civil (solar water heater ,gas cylinder)etc.
Machine configuration
exturder |
2sets |
Cooling tank |
2sets |
Hauling machine |
2sets |
Winding machine |
1set |
mould |
1set |
Coiling pipe bender |
1set |
drier |
1set |
High speed kneading machine |
1set |
Technical parameters
Model |
YG-XW65 |
YG-XW45 |
Extruder |
XW65/28 |
XW45/28 |
Screw material |
38CrMoALA |
|
Screw rotate speed(r/min) |
0-70 |
|
Diameter Range(mm) |
Φ12-Φ50 |
Φ6-Φ14 |
Output (kg/h) |
40-75 |
40-90 |
Installed Power(KW) |
50 |
35 |
Hauling speed(m/min) |
0-18 |
|
Weight(kg) |
6000 |
|
Process flow:
High speed kneading machine (mixing materials)---mould---extruder 1(innermost layer PVC pipe)------cooling tank 1---hauling machine 1 ---winding machine (fiber line that is the second)---dryer---extruder 2(the most outer PVC pipe )----cooling tank 2---hauling machine 2---coiling pipe bender ----package.
promise:
Our Company has more than 10 years in the field of PVC machine .NO.1 machine quality ,
competitive price ,and excellent after sales service ,will make you covince
If you have any question .feel free to contact me
looking forward to cooperate with you in near future.
