Specifications
PE PVC cable wire corrugated pipe machine:1>Pipe diameter: 7.3-15.8mm; 18.6-32.4mm; 36.8-54.5mm
2>SJ-30/30,SJ-65/30
PE PVC cable wire corrugated pipe machine:
The single wall and double wall corrugated pipe production line is featured with compact structure, easy operation and maintenance. We can add steel wire inside the pipe when extruding, to make it easy when you use the corrugated pipe to protect electric wire or cable. You can used the steel wire to draw the cable in the corrugated pipe, no need to cut the pipe open. So it can protect the cable better.
The mould blocks are driven by chain. The whole production line is including:
1. Single screw extruder, model of extruder depends on the pipe diameter and output capacity request.

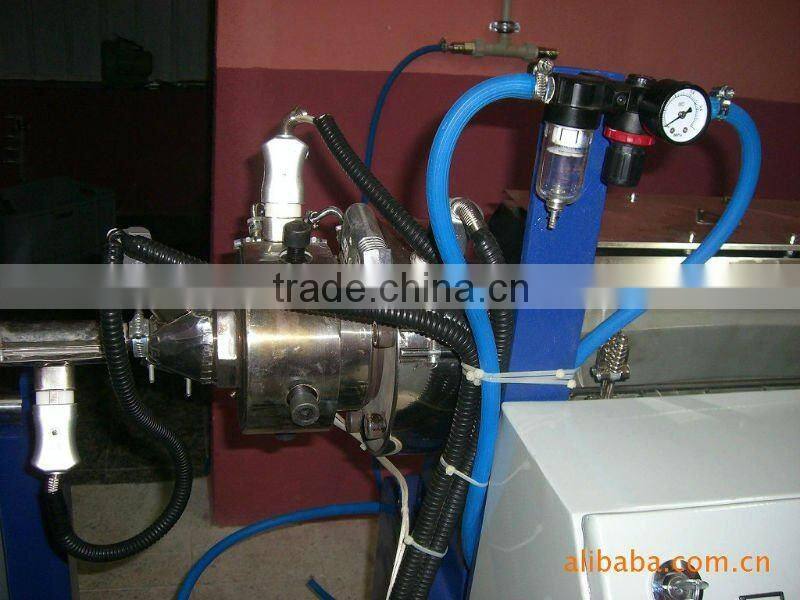

2. Die head.

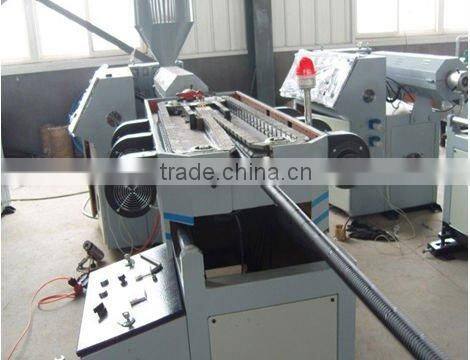

3. Forming machine. The corrugated pipe is formed by two groups of calibration mould block. The pipe is cooling by fan.

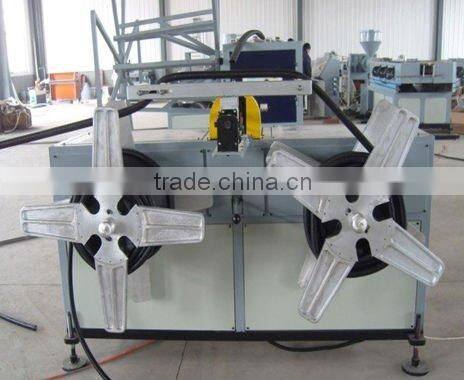

4. Winder. Two or One position winder.
Model |
KFYDPEG-90 |
KFYDPEG-65 |
KFYDPEG-45 |
KFYDPEG-30 |
Screw diameter (mm) |
Φ90 |
Φ65 |
Φ45 |
Φ30 |
L/D |
30/1 |
30/1 |
30/1 |
30/1 |
Output (kg/h) |
200 |
100 |
40 |
20 |
Total power (kw) |
120 |
80 |
50 |
20 |
Pipe dia. Range (mm) |
Φ110-Φ200 |
Φ16-Φ75 |
Φ8-Φ50 |
Φ2-Φ15 |
Haul off speed (m/min) |
10 |
10 |
15 |
15 |
Capacity annually (10km) |
150 |
150 |
150 |
150 |

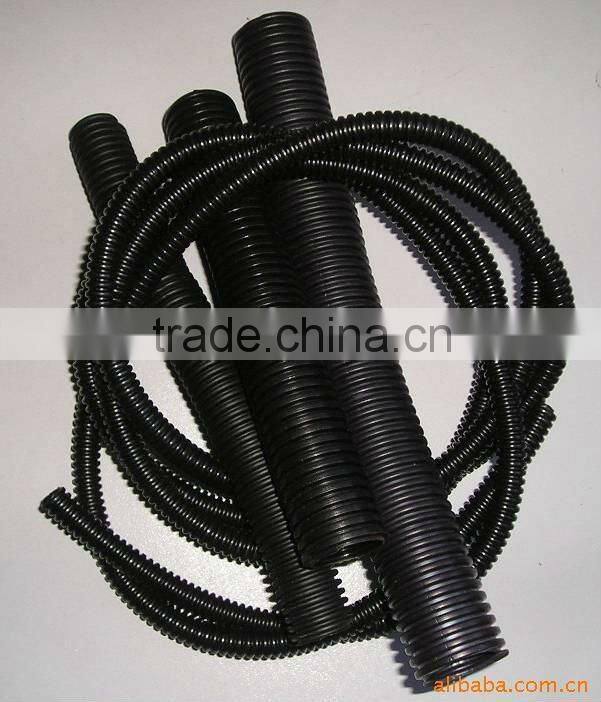

Pipe produced by this PA/PE/PP/PVC single wall corrugated pipe extrusion line is featured with high temperature resistance, anti-erosion, anti-abrasion and high strength. The pipe can be used as wire conduit of electrical appliance and automobile, oil pipe in automobile braking system, protection pipe, lamps and for high temperature gas/chemical liquid transferring.
For material PA, temperature range -40centidegree - 115centidegree, no halide: the pipe’s anti-oil, anti-acid. Inflammation grade is HB (UL94). Black pipe is ultraviolet resistant.
For material PP, temperature range -20C - 110C, the pipe’s anti-oil anti-acid, anti-base. Black pipe is ultraviolet resistant.
For material PE, temperature range -40C - 80C, the pipe’s anti-oil anti-acid, anti-base. Black pipe is ultraviolet resistant.
The company owns rich experience in this single wall and double wall corrugated pipe extrusion line. We have a lot of customers for you to visit the running machines. All our staff warmly welcome you to visit the work shop, too. We also develops the corrugated pipe wall holes machine
Sample and application
