Hydraulic Stone and Rock Splitter
US$ 3,700 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BESTLINK
Model Number:
BY36/38/40 BY42/45
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BESTLINK
Model Number
BY36/38/40 BY42/45
Condition
New
Hydraulic Splitter models and parameters BS36/38/40 BS42/45
Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.
BS36/38/40 uses Iron Cylinders, BS42/45 have both Iron andAluminium Alloy cylinders.
Aluminium Alloy cylinder: Lighter and stronger!!
Besides, we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it have the exact same shape,same parts and same performance as the original one.

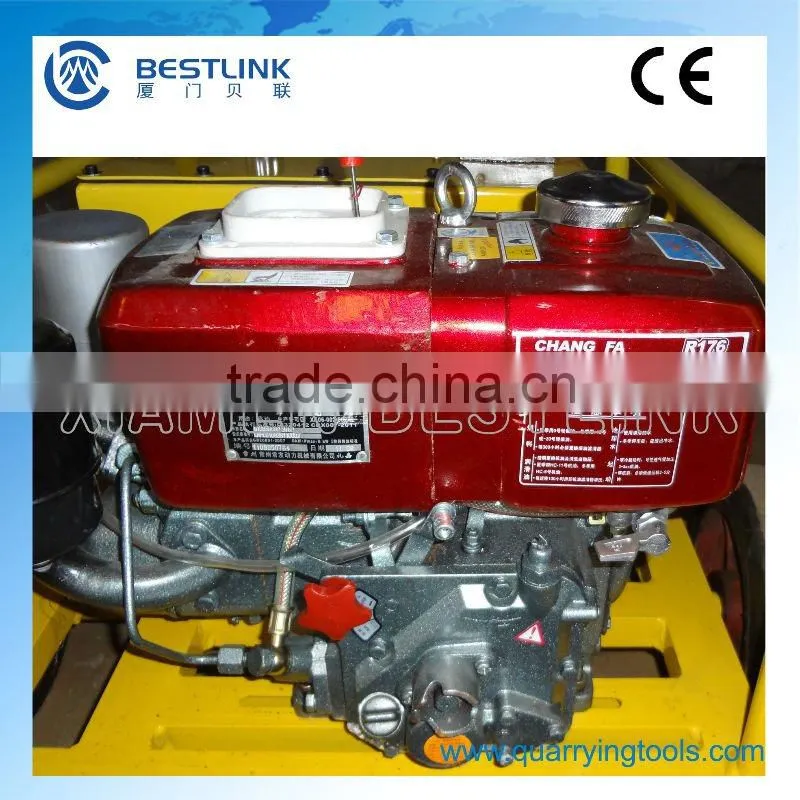

Technical data of Diesel engine
| Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine Power | Working pressure(MPa) | flux(L/m) | Towable of splitter quantity(pc) |
| Diesel engine | 1150*1180*940 | 260 | 40 | 5.15KW | 55-60 | 2-13 | 1-10 |
Technical data of Gasoline engine
| Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine power | Working pressure(MPa) | Flux(L/m) | Towable of splitter quantity(pc) |
| Gasoline model | 1200*1170*800 | 100 | 40 | 7.5HP | 55-60 | 2-13 | 1-10 |
Technical data of electric engine
| Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | Engine power | Working pressure(MPa) | Flux | Towable of splitter quantity(pc) |
| (kg) | (L/M) | ||||||
| Electric motor | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 | |
| 384*280*620 | 75 | 30 | 3KW(380V) | 55-60 | 2 | 1-3 | |
| 7.5KW(380V) | 55-60 | 13 | 1-10 |

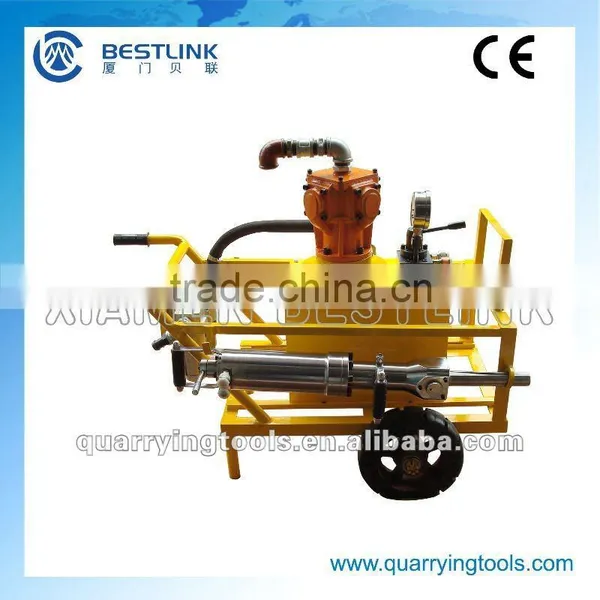

Technical data of pneumatic model
| Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | rotating speed(r.p.m) | Rated power(kw) | Oil flux(L/m) | Working pressure(MPa) | Towable of splitter quantity(pc) |
| Air motor | 384*280*620 | 70kg | 30 | 2000 | 4.10 | 2-13 | 55-60 | 1-10 |

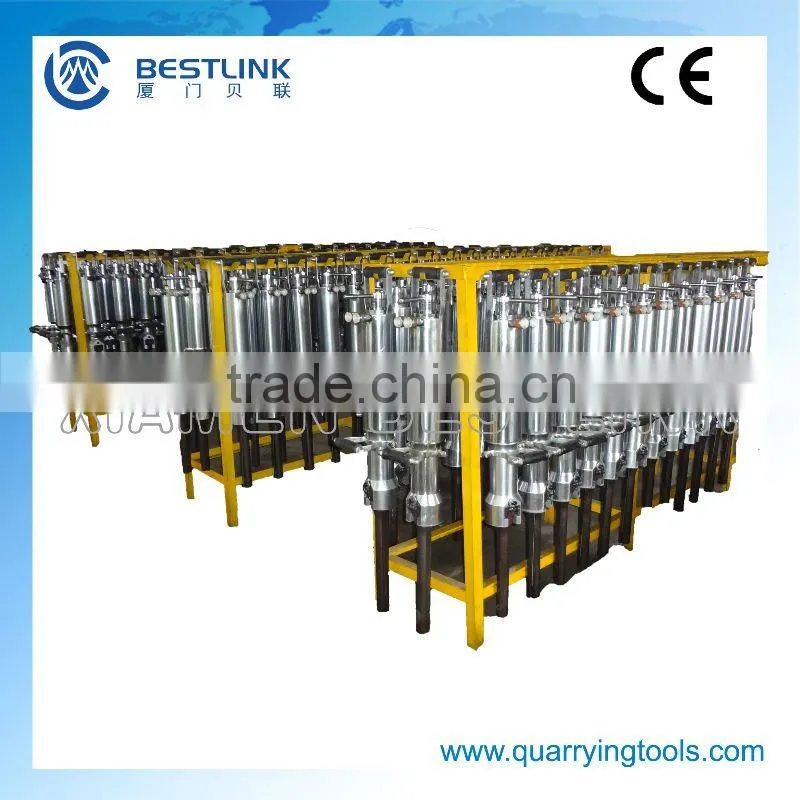

Hydraulic splitting cylinder
| Model | bore diameter required | Min. bore depth required | Splitting distance | Splitting time | Theoretic spliting power | Actual split power | Cylinder weight |
| BS36 | Φ36-38mm | ≥300mm | 10-40mm | 5-12s | 615T | 320T | 20kg |
| BS38 | Φ38-40mm | ≥400mm | 10-40mm | 5-12s | 615T | 380T | 22kg |
| BS40 | Φ40-42mm | ≥500mm | 10-40mm | 5-12s | 680T | 420T | 23kg |
| BS42 | Φ42-45mm | ≥600mm | 10-40mm | 5-12s | 780T | 480T | 32kg |
| BS45 | Φ45-48mm | ≥800mm | 10-40mm | 5-12s | 826T | 500T | 33kg |
Accessory
| Name | Model | Unit | weight(kg) |
| Lubricating grease | Special for hydraulic splitter | Tin | 2 |
| oil distributor | with 3 outlet | pc | 1 |
| Oil Pipe | standard configuration | set | 1 |
| Transportation frame | set | 42 |
Note:Please use the 46# or 68# antiwear hydraulic oil.
