Help Center2014 New High Speed 50ton Corrugated Paper Machine ,kraft Paper Making Machine for Box Package
Related Products
-
787 Small Type Kraft Paper and Corrugated Paper Making Machine and LineUS$ 50,000 - 55,000MOQ: 1 Piece -
1760mm Recycled Paper Making Machine With Making Kraft Paper,Corrugated Paper for SaleNegotiableMOQ: 1 Set
-
3200mm Double Cylinder Double Wire Kraft Paper Making MachineNegotiableMOQ: 1 Set
-
Waste Paper Recycling Kraft Paper Making Machine PriceUS$ 220,000 - 260,000MOQ: 1 Set
-
4800/500-380TPD Kraft Liner Paper Machine With High-strengthNegotiableMOQ: 1 Set
paper making machine,remaks:
It will be better you can give us following necessary information ,we can make exact quotation and design accordingly :
1. what kind of paper you want to make ?
(1) tissue paper ;
(2) kraft paper ;
(3) A4 paper ;
(4) newspaper;
(5) copy paper.
2. Production capacity : ton per day (24 hours ) ;
3. Max width of finished paper : mm ;
4.paper grammage or thickness : g/m2 ;
5.what kind of finished product you want ?
kraft paper machine, corrugated paper machine
1.brife introduction
This project include following section :
1.pulp making production line;
2.paper making production line;
3.paper processing machine ;
4.boiler section ;
Ⅱ.Technical parameters:
1.Paper type:Toilet tissue paper
2.Output rate: 13-35g/m2;
3.Paper width: 2400mm
4.Mesh width: 2800mm
5.Design speed: 180m/min
6.working speed: 80-130m/min
7.Production capacity: 10-12t/d
8.Gauge : 3400mm
9.Pressure way: pneumatic pressure
10.Pulp dealing: Downside hanging pulp
11.Drive way: AC variable frequency and
III.Main Structure of Equipment
1.Cylinder section:One φ1800mm×2800mm cylinder, Stainless-steel slices. One φ500mm×2900mm couch roller, rubber hardness Shaw:38±2°. Air operated pressure equipment, one cylinder former with pressure type. One reciprocating high-pressure water spray equipment.
2.Dry section:One φ3000mm×2800mm dryers,one φ700mm×2900mm carrier roller, rubber hardness:95±2°.Pneumatic pressure device,attached with compounded pneumatic blade ( a group of cylinder-cleaning and wrinkling blade). Pneumatic corrector, electric tensioner and automatic control equipment.
3.Reeling section: one φ1000mm×2800mm reeling machine, one φ240mm×2900mm compression roller, rubber hardness Shaw:95±2°. Two sets of adjustable reel frames and two sets of reel levers.
4.Driving and controlling section: Use AC frequency conversion, driving by step, all-digital closed loop controlling system.
finished our product

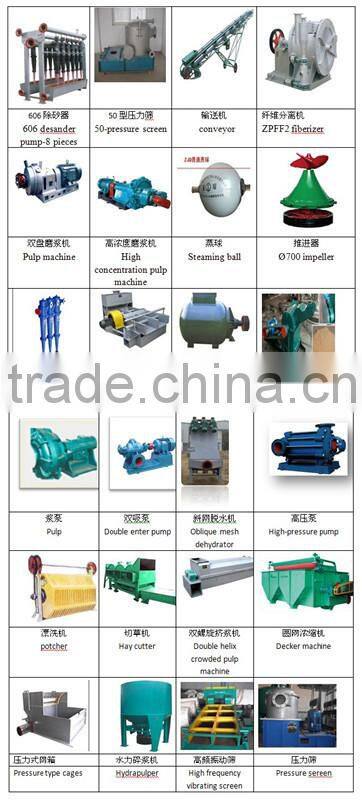

IV.Main machine list :
brief introduction
Henan Qinyang city Pingan Light Industrial Machinery Co. Ltd is a large- scale enterprise specialized in papermaking machinery field, covering the scientific research, design, manufacturing, installation and commissioning. In 2004, we passed the international quality authentication of ISO9001 system.
The main products of our company are multi-series cylinder mould paper machine, short fourdrinier paper machine, fourdrinier paper machine and multi-layer fourdrinier paper machine based on the paper width of 787mm, 1092mm, 1575mm, 1760mm, 1880mm, 2100mm, 2400mm, 2640mm, 2800mm, 3200mm, 3600mm, 3800mm, 4600mm; and we are also devoted to the manufacturing of pulp making equipment and paper converting equipment.
high quality of our products and our after-sales service bring us the terrific reputation and high praise from the clients at home and abroad!
Our Services
1. The seller will be responsible for the installation,debugging,and production, they need to ensure it can reach the economic plan goal within planning period and offer the spare parts in time.
2. The technical training of personnel concerned: the seller will be responsible for the training on the spot of operation technical backbone from buyer. The personnel of buyer will master the related operation and repair skills after being trained. They can adjust the technical craft and deal with the fault in time.
3. We promise , after receiving the notice of quality problem from buyer, we will reply within 12 hours for common problem, and will reply within 24 hours for the important problems and will appoint the specially-assigned person to settle the problem with customer. We will offer the spare parts with discount price and faster time.
4. We promise that we will offer the lifelong tracking service.
1.how long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry.If you are urgent to get the quotation,please tell us by email,then we can reply you as the first priority.
2.can you make paper making machine design for us?
yes,we have professional team with rich experience of paper making machine design .you only need to tell us your open land dimension,we will make your future paper making machine design.
3.how about your machine quality,we are worry about the quality
PINGAN is a mature brand in china,has manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS900 System in 2004.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.
4.your machine price is high,is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,because of communication time after sales,and also it need very long time to send new parts.our paper machines have
enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
5.how we visit your factory and what will be the procedure?
our company located in zhengzhou city,henan province,if you take plane,it will need about 2 hours from guangzhou city,1.5hours from shanghai city and 1 hour from beijing city.we will pick you up from airport as well as the train station.we will take you to see our machine running in our chinese clients' paper mill.welcome you and your team to visit us at any time!
