Outdoor 5050 Smd Advertisement Led Module(DC12V,0.72W LPD6803)

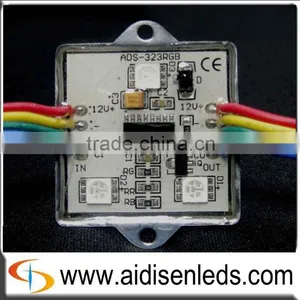

Outdoor 5050 Smd Advertisement Led Module(DC12V,0.72W LPD6803) thumbnail-1
Outdoor 5050 Smd Advertisement Led Module(DC12V,0.72W LPD6803) photo-1
US$ 0.8 - 1.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Model Number:
ADS-323RGB
Chip Material:
Other, Epistar
Emitting Color:
Other, RGB,
Contact Supplier Request Quote Chat Now
Shenzhen Aidisen Optoelectronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number ADS-323RGB
Chip Material Other, Epistar
Emitting Color Other, RGB,
Luminous Flux(lm) 20lm per led
Optical Attenuation(%) 0.1
Power Other, 0.96w
Power Dissipation 0.96
Color Rendering Index(Ra) 90
Operating Temperature(℃) -40, 60
Storage Temperature(℃) -50, 60
Place of Origin Guangdong, China
Brand Name ADS
Certification CE

Specifications

1, LPD6803 IC factory
2, DMX LED IC magic smart 5050 module light
2, RGB module lpd6803
2,Epistar chip 50.000 hours,CE/RoHS

LPD6803 ic rgb LED module



Advantages:



1,Direct from factory DMX&matrix module LED  light
2, RGB  lpd6803 LED 5050 module

2,Epistar chip with 50.000 hours
3,CE/RoHS

4, from factory with 3-5days delivery

5, OEM/ODM accept

6, LED 5050 module  light with DMX 512





 1,  ADS-IC423 is a combination of a plastic (thermostability,cold-resistant,resistant to UV) shell and PCB board,
also 4 spell line with blue,green,yellow,red ntain 4PCS 5050 SMD LED


2, This product can achieve effects of full-color running water,chasing and scanning. Depending on the different installation
methods may compose different dynamic effect of different color's character and design.


3, Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.Widely used in
LOGO, advertising billboard,exposed luminous characters, painted screen, can replace the traditional neon signs. The
distance between the lights can be choosed as customer's request.


4, This product could be linked up to20pcc. more than 20pcs is strickly prohibited. The diameter of the power cord should be
based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters), and the
voltage of transmission line.

Specification

Items LED Qty Color Wavelength
Scope(nm/K)		 LED PCB
dimension		 units
ADS-IC423 4 Red 619-635K 5050 RGB 34*34*1.6 20pcs/chain
Green 512-528K
Blue 463-475K



ADS-IC423 Full color led single light Parameter

Items Parameter Units
Vlotage DC12  V
Power 0.96  W
Temperature -40-60 °C
IP grage IP66
demension 35*35*5  mm
lifespan  50000  hours
View angle  120   °C



Technical Parameter of controller



 Items Parameter
 Input Voltage AC110V/220V(configurate according to end-user)
 Battery Plug GB, UK, U.S. regulations, etc.(configurate according to end-user)
 Power dissipation 2w
Control Protocol ICC,DMX512/1990
Stand by IC LPD6803,D705,D709,WS2801,DMX512/1990 Decoder/ Driver
Control points 1200 points 2048 points 512 address(channel)
Gray scale 32 level, 256 level
SD card Support FAT or FAT16 files system
Working Temperature –35°C—75°C
Play speed Default 20 frames / sec; DIP switch can switch between 1-40, 8-level speed adjustable
Indicator light power indicator light(Green,Power),Play speed light(Red,State)



 outdoor 5050 smd advertisement led module(DC12V,0.72W LPD6803)

LED Module Applications



1,channel letter

2,Advertisements sign

3,KTV,Disco

4, LOGO, advertising billboard,exposed luminous characters,

5, LED display screen, painted screen
