Specifications
1,direct from factory 5050 module light2, Epistar chip for LED
3, CE/RoHS
4,50.000 hours lifespan
5, sign/logo backlight

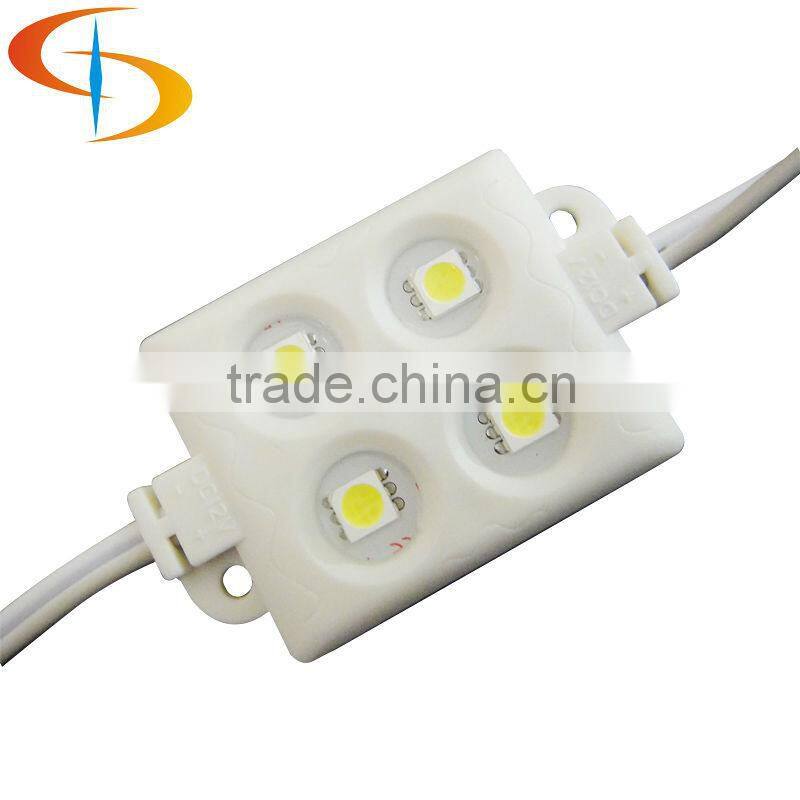

4pcs 5050 smd waterproof injection led module
DC12V 0.96W
injection module
1,direct from factory 5050 module light
2, Epistar chip for LED
3, CE/RoHS
4,50.000 hours lifespan
5, sign/logo backlight
Product Feature

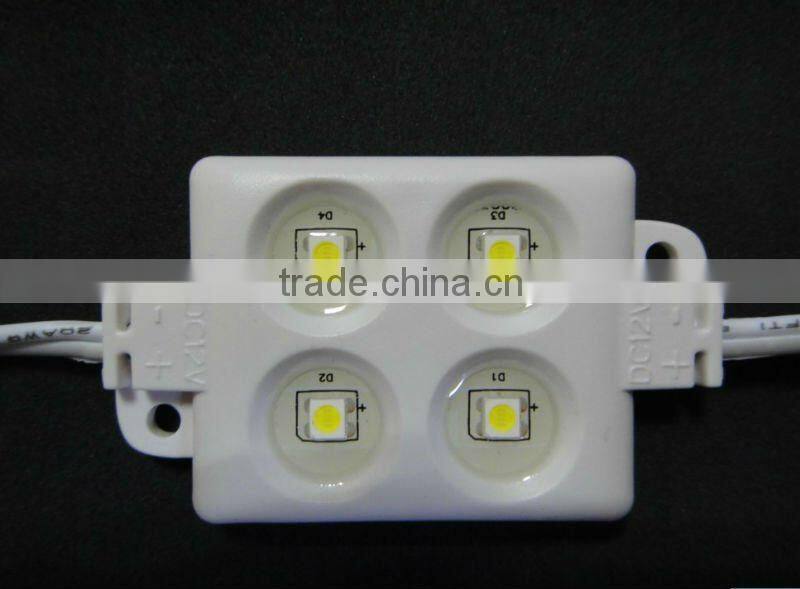

1, ADS-284 series module used plastic shell, PCB plate,grey&white wire(thermostability,cold-resistant,resistant to UV)
2, With 4pcs 5050 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines,
3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for 50,000hrs
4, Suitable for channel letters and light boxes backlighting,big logo etc.

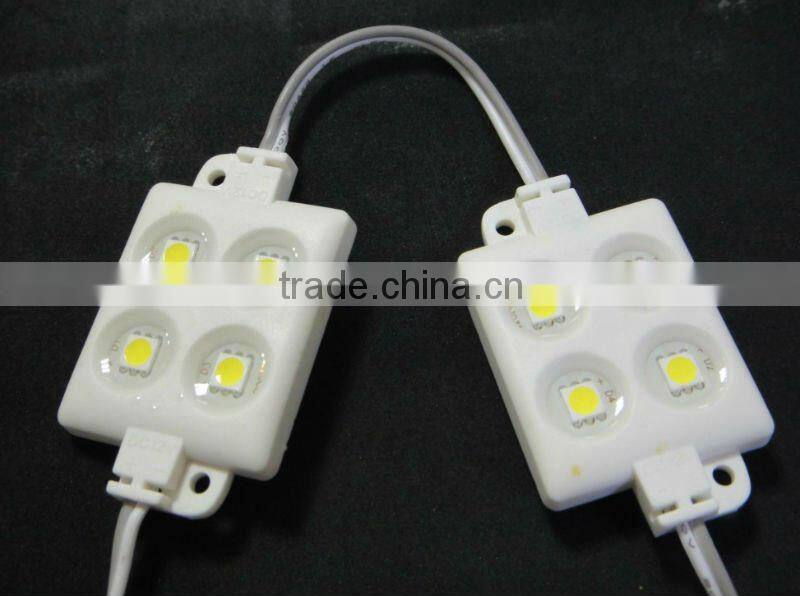

5, This module can be linked up to 20pcs at max, more than 20pcs is strictly prohibited,
6, The diameter of power cord should be based on the actual maximum current, the product power,
cable length(recommend no more than 6meters)and the voltage of transmission line.
Specification
| Items | Color | LED Qty | Lumen (LM) |
Wavelength Scope(nm/K) |
LEDs | PCB dimension |
unit |
| ADS-284RF-50 | Red | 4 smd | 26 | 619-635K | 5050 | 35.3*28.5*2 | 20PCS/chain |
| ADS-284GF-50 | Green | 48 | 512-528K | ||||
| ADS-284BF-50 | Blue | 16 | 463-475K | ||||
| ADS-284YF-50 | Yellow | 22 | 584-595K | ||||
| ADS-284WWF-50 | warm white | 68 | 3000-3500K | ||||
| ADS-284WF-50 | white | 68 | 6000-7000K | ||||
| ADS-284CWF-50 | cold white | 68 | 9000-15000K |
ADS-284 module parameter
| Items | Parameter | Unit |
| Voltage | DC12 | V |
| Power | 0.96 | W |
| Temperature | -40-60 | °C |
| IP Grade | IP66 | |
| demension | 53.8*33.8*5.6 | mm |
| View angle | 120 | |
| lifespan | 50000 | hours |
| LED Chip for LED | Epistar | °C |
Applications
1) Using for the word advertising signs, advertising light box,
2) LED luminous characters, bars, KTV interior decoration, Screen Printing

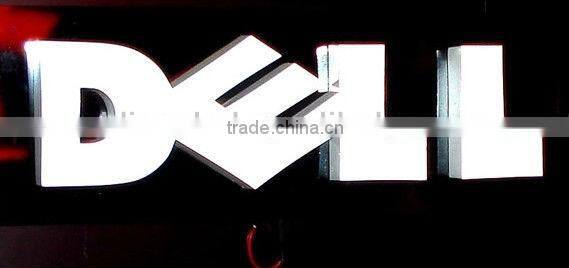

3) Logo sign channel letter
4) light box backlight
5) street light decoration and so on
