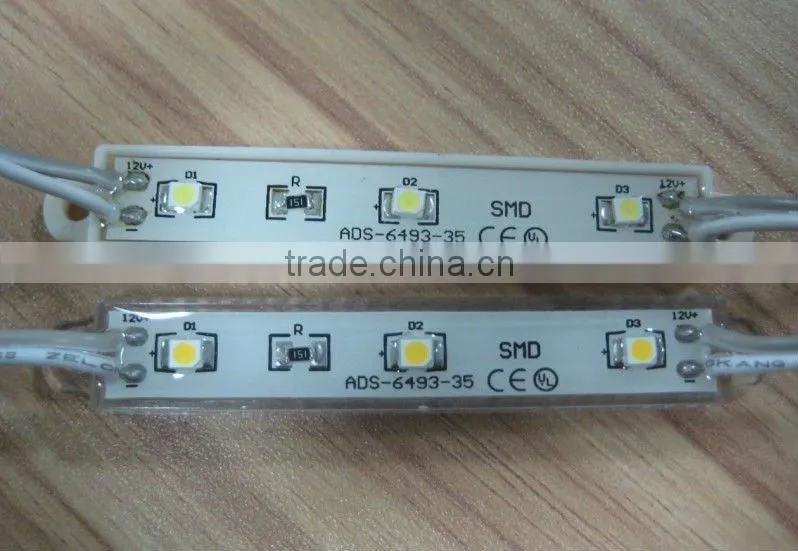

Help Center12v Transparent Clear Shell Led Module Waterproof DC12V for Channel Letter
Related Products
-
12V Waterproof Outdoor Led Sign Screen Led Module Light for Easy InstallationUS$ 0.4 - 0.7MOQ: 100 Pieces -
4pcs 5050 Smd LED Module for Slim Lightbox BacklightUS$ 0.55 - 0.75MOQ: 100 Pieces
-
CE&RoHS Waterproof Power Saving Dream Color RGB 5050 SMD Led Module LightUS$ 0.35 - 0.6MOQ: 100 Pieces
-
CE&RoHS Waterproof RGB 5050 SMD Led Module Light for Advertising SingUS$ 0.35 - 0.6MOQ: 100 Pieces
-
LPD16716/6803 RGB Led Module Light for LightboxUS$ 0.65 - 0.95MOQ: 100 Pieces
Specifications
1,Direct from factory LED 3528 Module light2,Epistar chip with 50.000 hours
3,CE/RoHS
4,Manufacturer with 3-5days delivery
Advantages
1,Direct from factory 3528 smd led module light
2,Epistar chip with 50.000 hours
3,CE/RoHS/SGS
4,Manufacturer with 3-5days delivery
5, OEM.ODM accept
6, Logo print also
7 high lumen
8, transparent clear shell led module light
ADS-6493 Series
Product Feature
1, ADS-6493 series module used plastic shell, PCB plate,grey&white wire(thermostability,cold-resistant,resistant to UV)
2, With 3pcs 3528 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines,
3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for50,000hrs
4, Suitable for channel letters backlighting and lightbox and so on
5, This module can be linked up to 20pcs at max, more than 20pcs is strictly prohibited,
6, The diameter of power cord should be based on the actual maximum current, the product power,
cable length(recommend no more than 6meters)and the voltage of transmission line.
Specification
| Items | Color | LED Qty | Lumen (LM) |
Wavelength Scope(nm/K) |
LEDs | PCB dimension |
unit |
| ADS-6493RF-35 | Red | 3 SMD | 6 | 619-635K | 3528 SMD | 63.5*9.3*3 | 20PCS/chain |
| ADS-6493GF-35 | Green | 15 | 512-528K | ||||
| ADS-6493BF-35 | Blue | 9 | 463-475K | ||||
| ADS-6493YF-35 | Yellow | 6 | 584-595K | ||||
| ADS-6493WWF-35 | warm white | 20 | 3000-3500K | ||||
| ADS-6493WF-35 | white | 20 | 6000-7000K | ||||
| ADS-6493CWF-35 | cold white | 20 | 9000-15000k |
ADS-6493-35 module parameter
| Items | Parameter | unit |
| Voltage | DC12 | V |
| Power | 0.3 | W |
| Temperature | -40-60 | °C |
| IP Grade | IP66 | |
| demension | 66*12*7 | mm |
| lifespan | 50000 | hours |
| View angle | 120 | °C |
LED Module Applications
1,channel letter backlighting
2,Advertisements sign backing
3,light box and bill boards backlight
4, indoo and outdoor ilumination
5, 3D letter sign backlit and decoration
