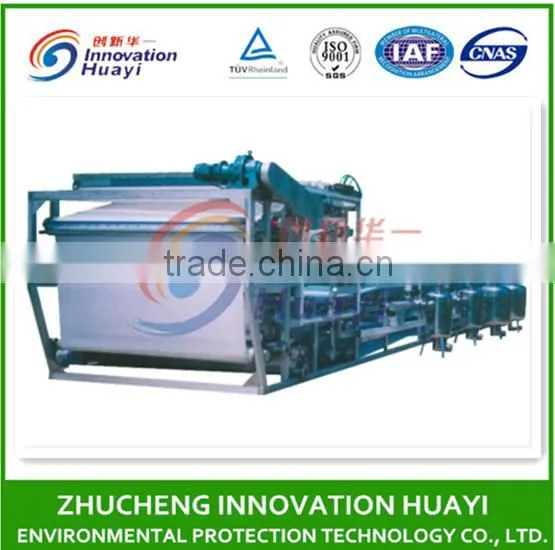

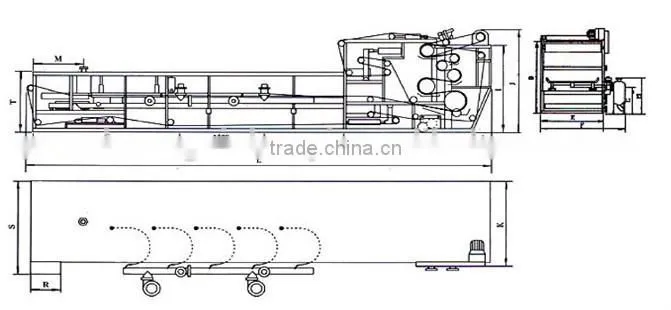

CDCY vacuum multi-roll press belt filter

Specifications

high level automation
fast filtering speed
Reduce the labor





CDCY vacuum blet filter press is the company developed its own patented a new type of filter press equipment. their cloth to the characteristics of the filter media, relying on vacuum suction combined with hogh pressure dehydration, compression an shear to maximize the filtration and separation equipment to remove the filter cake moisture through the roller and the cloth repeatedly. For industrial filtration, sludge and other stick thin amterial dehydration.



Features:

1. Modularized design is for easy installation and transportation.

2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency.

3. Fast filter speed: large particles will settle at the lower layer while small particles upper layer when material goes through sedimentation area. Reasonable structure of filter cake ensures low resistance of liquid for fast filter of thin layer.

4. Convenient filter technology: cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.

5. Fine decantation effect: even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.





Characteristic
vacuum pre-dehydration, and greatly improve the efficiency of dehydration. vacuum dehydration district can cleaning the materials. modular design, the models can be flexibly assembled



Technical parameter:





Model	Filter area (m2)	Filter length (mm)	Main motor power ( kw)	Vacuum consumption (m3/min)	Vacuum box power (kw)
CDCY-400	1.0	2500	3	2	1.1
CDCY-630	5.0	7900	3	15	30
	6.3	10000	3	15	30
CDCY-1300	7.3	5600	5.5	15	30
	9.1	7000	5.5	20	37
	10.9	8400	5.5	20	37
	14.6	11200	5.5	20	37
	18.2	14000	7.5	30	45
	20.0	15400	7.5	30	45
CDCY1800	20.0	11200	7.5	30	45
	25.0	14000	11	42	55
	30.0	16800	11	42	55
CDCY-2000	20.0	10000	11	42	55
	25.0	12500	11	42	55
	29.0	14000	11	42	55
	33.6	16800	11	66	55
	39.2	19600	15	66	75
CDCY-2500	25.0	10000	11	30	55
	30.0	12000	11	42	55
	35.0	14000	15	42	75
	42.0	16800	22	86	110
	49.0	19600	22	86	110
	56.0	22400	30	97	160
CDCY-3150	61.7	19600	30	100
	70.6	22400	30	123
	79.4	25200	30	141







  sea worthy packing and sea transportaion

  we can according the user requiement to product the machine

  ten years experiences
