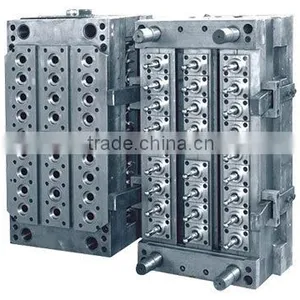

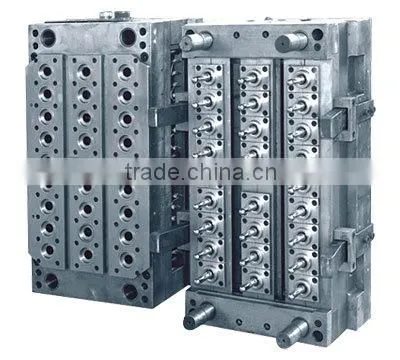

Injection Molding Machine 3980KN for PET Bottle Preform with 32-cavity injection mold

Specifications

Injection Molding Machine 3980KN for PET Bottle Preform with 32-cavity injection mold

Model:SAET-398PET



Features:

1.Advanced design in injection unit.
2.High flexibility to mach change various diameter screws.
3.Anti-wear bushes are replaced by copper bushes.
4.Adoption of vane pump which matches with proportional flow valve pressure valve, increases the control accuracy.
5.In our newly developed control system, high integrated fast respond electronic components are used to ensured the reliable &durable of system.



SPECIFICATION:

SPECIFICATION		SAET-398PET
INJECTION UNIT
Screw Diameter	mm	80
Screw L/D Ratio	L/D	25
Shot Size (Theoretical)	cm3	1689
Injection Weight(PET)	g	1788
Injection Rate	g/s	446
Plasticizing Capacity	g/s	70
Injection Pressure	Mpa	152
Screw Speed	rpm	0~165
CLAMPING UNIT
Clamp Tonnage	kN	3980
Toggle Stroke	mm	700
Space Between Tie Bars	mm	720x720
Max. Mold Height	mm	800
Min. Mold Height	mm	280
Ejector Stroke	mm	160
Ejector Tonnage	kN	110
Ejector Number	Piece	13
OTHERS
Max. Pump Pressure	Mpa	16
Pump Motor Power	kW	37
Heater Power	kW	24.80
Machine Dimension(LxWxH)	m	7.3x1.9x2.5
Machine Weight	t	15.7
Hopper Capacity	L	50
Oil Tank Capacity	L	750
