Specifications
Laser Cutting Machine Factory 5030 Autofocus1.500*300mm work area
2.Motorized lift platform
3.LCD screen USB port
4.CEFDA
Laser Cutting Machine Factory 5030 Autofocus
Applications---Non-metal materials
Wood,Bamboo,Marble, Acrylic, MDF, Plexiglass, Leather, Rubber, Clothes,Paper,Plastic, Other non-metal materials.

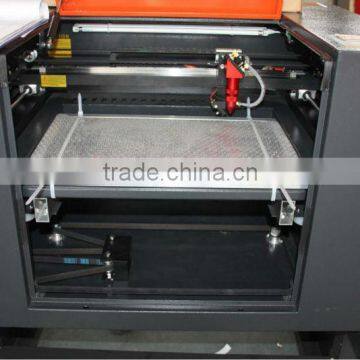

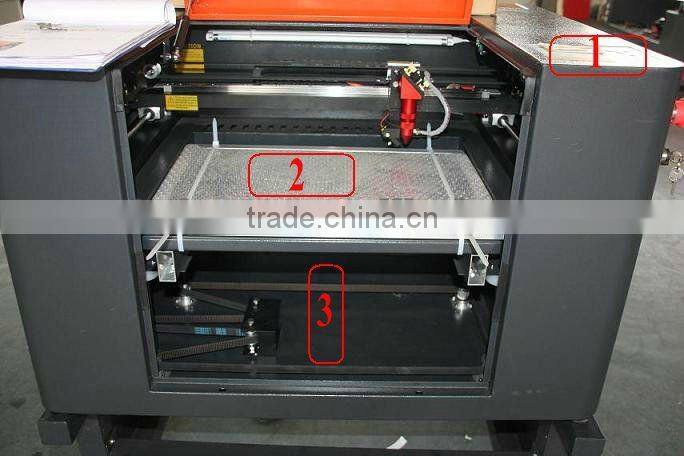

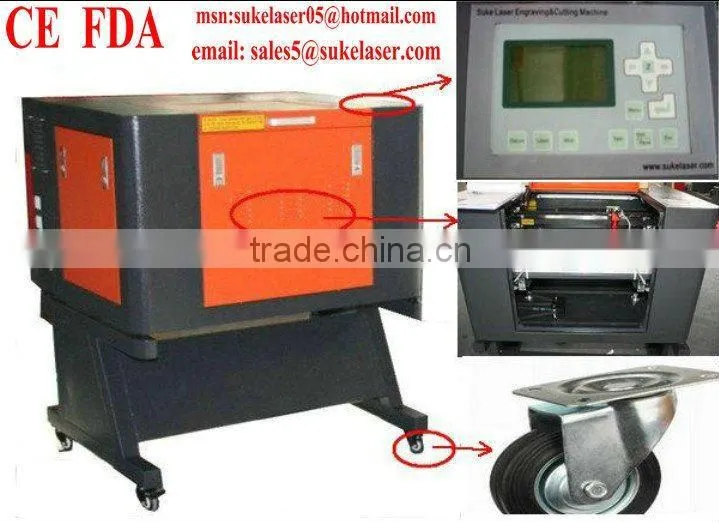

Structure of laser engraving machine /laser cutting machine SK5030 :
Main Description
1. 500*300mm working size
2. 40w CO2 laser tube with water protection
3. Laser tube with1500hours service time

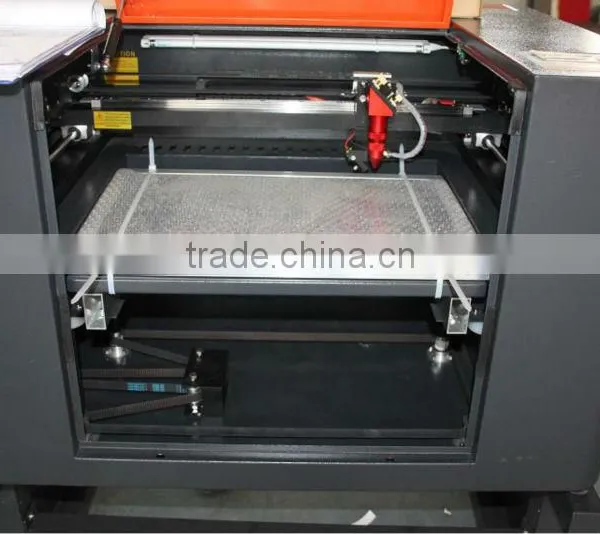

4. Motorized up & down platform, max 18cm
6. USB port, LCD panel, Offline operation.
7. Detailed English manual and video
8. CE FDA certificate
Optional parts
1) Autofocus

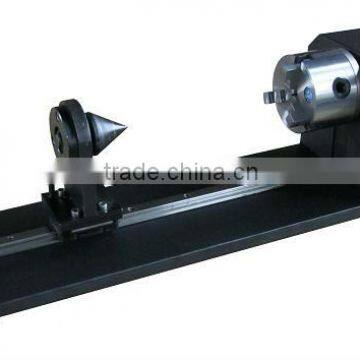

2) Rotary axis
3) Red dot pointer
4) CW3000 chiller
Technical parameter
Model |
SK5030-II |
Working area |
500mm*300mm(19.7*11.8 inch) |
Laser tube power |
40w ,60w (Can be optioned ) |
Laser tube type |
Sealed CO2 laser tube ( Water cooling 10.6um) |
Working life of tube |
1500 hours |
Engraving speed |
0 - 60000mm/min |
Cutting speed |
0 - 30000mm/min |
Min. shaping character |
Chinese 2mm*2mm,English 1mm*1mm |
Resetting positioning accuracy |
0.01mm |
Up and down platform |
Motorized up and down platform, Max 10cm |
Max power |
Less than 1kw |
Machine control |
DSP controlling |
Power supply |
AC 110 - 220V , 50 - 60Hz |
Supported graphic |
BMP, HPGL, PLT, DST, DXP, and AI |
Driving system |
Stepper motor |
Assistant equipment |
Exhaust-fans, water pump air pump. USB port |
Software supported |
Corel Draw, Auto CAD , Photo shop |
Software |
Laser cut software, USB port, LCD screen |
Software surrounding |
Windows98/2000/XP/VISTA/2007 |
Operating temperature |
0°C~45°C |
Operating humidity |
5%~95% |
English manual |
Tell you how to run the laser machine and also the problems and solutions |

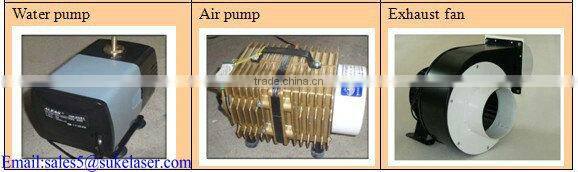

Standard assistant parts
Sample display
Package box
Warranty terms
1. 3 months for laser tuber, lens and mirror
2. 6 months for equipments outfit, such as water pump, fan, air pump,ect
3. 1 year for the whole machine
After-sale service
1.Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be repied to you within 24 hours!
3. By video, online video, solution manual in English, Email, Instant messenger, Telphone.
4. Our distibuter or user in your local place will help you when neccessary!
5. We supply lifelong after-sale service under our professional’s guide for free!
Certificate CE FDA

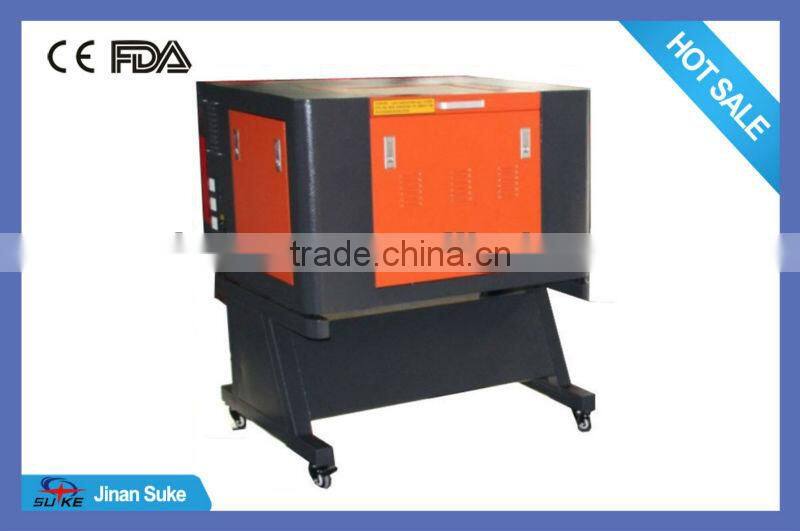

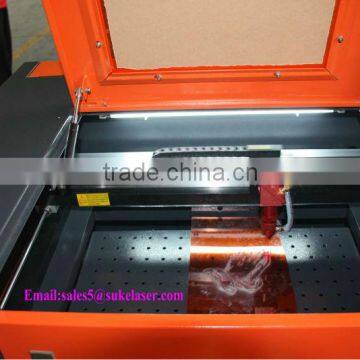

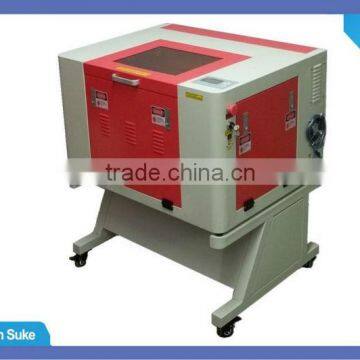

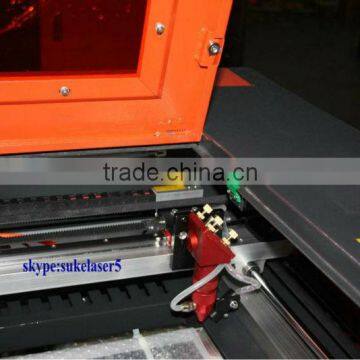

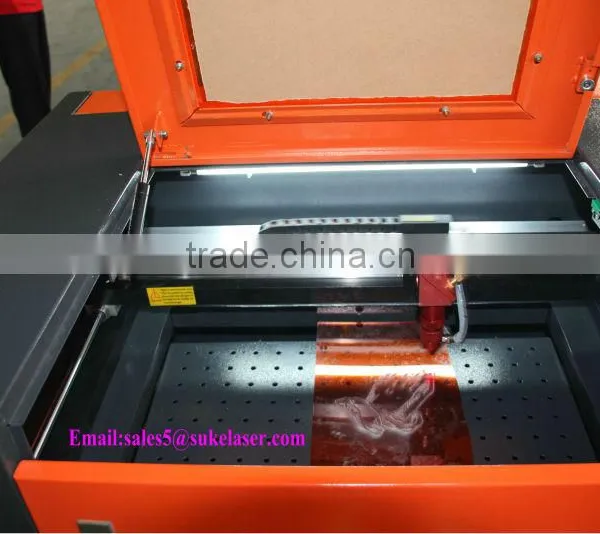

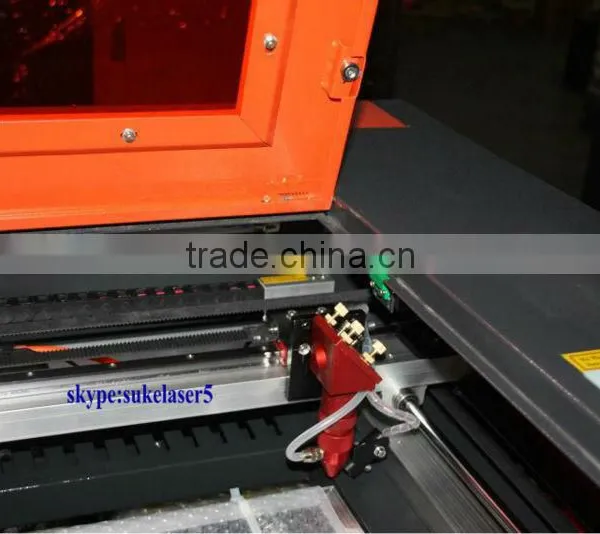

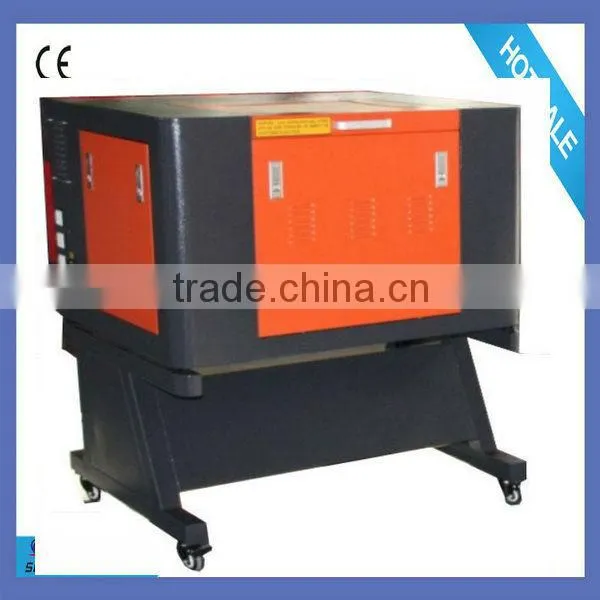

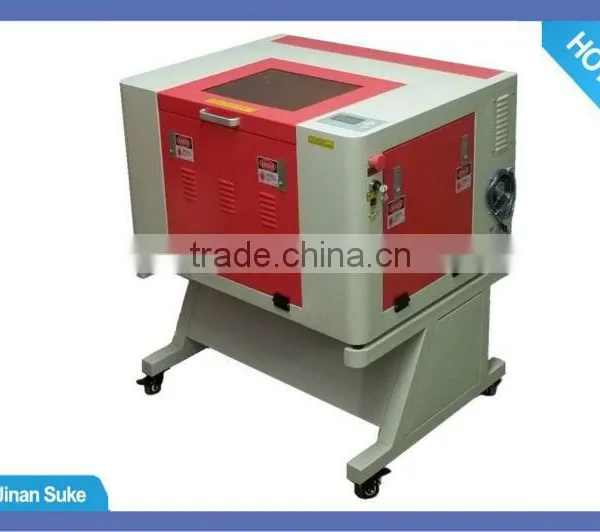

Machine photo
If you are interested, please don't heasitate to contact us!
