Help CenterWood Acrylic Leather Rubber Laser Engraver Cutting Machine
Related Products
Specifications

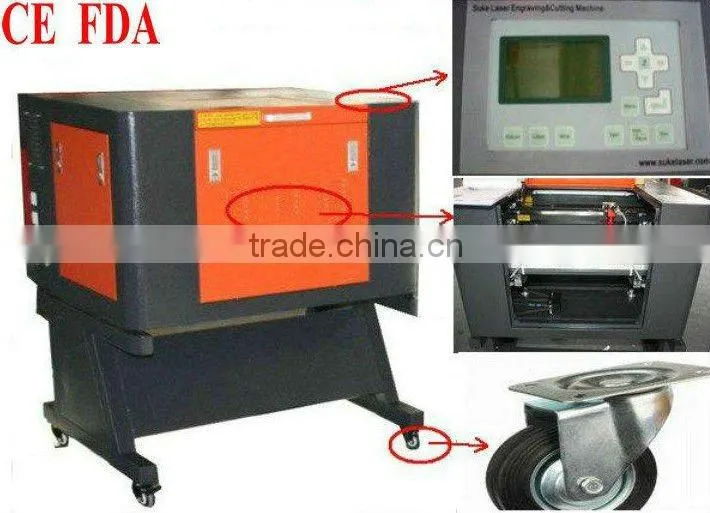

Wood Acrylic Leather Rubber Laser Engraver Cutting Machine1. CE and FDA certificate
2. smaller machine with bracket
Wood Acrylic Leather Rubber Laser Engraver Cutting Machine
Application:
1) Advertising industry: organic glass cutting, signage engraving, double-color board engraving, crystal cup carving, etc.
2) Gifts industry: carving beautiful words and patterns on wood, bamboo, marble, double-color boards, density board, crystal, leather, etc. materials.
3) Packaging & printing industry: carving and cutting rubber plate, double layer plate, plastic plate.
4) Leather & clothing processing industry: Can be used to series of crafts processing of complex graphics and characters, like engraving, cutting, stenciling, embroidery cutting, etc. on genuine leather, synthetic leather, artificial leather, cloth.
5) Other industries: used for model making, decoration, product package engraving and so on.
Features:
1, The new Humanity design makes the machine body more compact and saves working space.
2, Improved structure enable the machine working more stable and better accuracy, and lower noise.
3, Intelligence satisfied switch on door openning and closing, when you open the door, the machine stop beaming and travelling, you can resume working manually or by closing the top door.
4, Intelligence thermostat and water flowing switch to protect the laser tube, when the temperature goes above a certain point (can be fixed), the machine will pause and resume till the temperature get normal, when there is no water flowing, the switch will close and machine stop working. this enable the laser tube using lifespan to be extended.
Technical parameters:
Model |
SK500 |
Working area |
500*300mm |
Laser tube type |
Sealed CO2 laser tube, water-cooling, 10.6um |
Laser tube power |
40W/60W/80W/100w(can be optional) |
Laser tube life |
1500 hours |
Engraving speed |
60000mm/min (software setting) |
Cutting speed |
30000mm/min (software setting) |
Positioning precision |
0.01mm |
Repositioning precision |
0.01mm |
Working voltage |
AC110-220V 50-60HZ |
Min shaping character |
Chinese 2mm*2mm,English 1mm*1mm |
Supported graphics |
BMP,HPGL,PLT,DST,DXP and AI |
Software supported |
CorelDraw,AutoCAD,Photoshop |
Control system |
DSP |
Driving mode |
stepper |
Resolution ratio |
≤4000 dpi |
360° slope engrave |
Yes |
Cooling system |
Water-cooling and protection system |
Operating temperature |
0-45 |
Operating humidity |
5-95% |
Gross weight |
250kgs |
Package size |
152*97*130cm |
