Specifications
machine de decoupe laser caoutchouc1.LCD panel
2.CO2 laser tube
3.laser cut 5.3 software
4.CE&FDA certificate

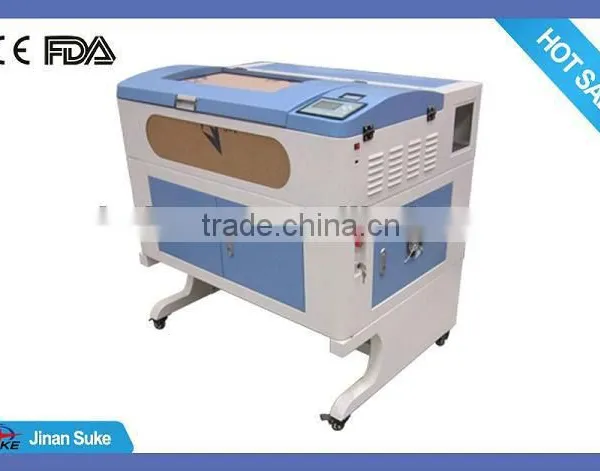

machine de decoupe laser caoutchouc
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc
Applicable Materials:
Nonmetal materials such as double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc..
Features:
1.Adopt DSP control system, USB interface and can support AutoCAD, Coreldraw, CAD, CAM and other graphical software.
2.Adopt double orbit and four pieces of specialized laser lens, high precision, and the cutting surface is smoother than normal.
3.LCD display users can randomly access to store documents, human convenient.
4.Select sealed CO2 laser tube, the beam of light is of high quality and the life is long.
5.Equipped with the protected water-cooling system and it makes the continuous operation ability stable
Technical parameter:
Model |
Laser engraving machine SK9060 |
Working area |
900*600mm |
Laser tube type |
Sealed CO2 laser tube, water-cooling, 10.6um |
Laser tube power |
60W/80W/100W or bigger (can be optional) |
Laser tube life |
1500 hours |
Engraving speed |
50-18000mm/min (software setting) |
Cutting speed |
50-3000mm/min (software setting) |
Positioning precision |
0.01mm |
Repositioning precision |
0.01mm |
Working voltage |
AC110-220V 50-60HZ |
Min shaping character |
Chinese 2mm*2mm,English 1mm*1mm |
Supported graphics |
BMP,HPGL,PLT,DST,DXP and AI |
Software supported |
CorelDraw,AutoCAD,Photoshop |
Control system |
DSP |
Driving mode |
stepper |
Resolution ratio |
≤4000 dpi |
360° slope engrave |
Yes |
Cooling system |
Water-cooling and protection system |
Operating temperature |
0-45 |
Operating humidity |
5-95% |
Gross weight |
300kg |
Package size |
177*101*106 cm |
Sample Photos:
Spare parts:
lens and air pump
water pump and rotary attatchment
Warranty terms :
1. 1 year for the whole machine
2. 3 months for laser tube,lens and mirror
3. 6 months for equipments outfit, such as water pump, fan, air pump,etc
4. Detailed manual and video to guide the users how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material.
5. Other parts like electric power is broken, we can give you a new one.But for the control card, we need you send the broken one to us and we reback you a new one.
6. If you meet the problems, we can solve it with pictures, videos etc.
7. Lifelong and fast technical guide and solution within 24 hours by email and web,msn or skype
8. We can solve all the problem that you will meet, for we are manufacturer of the laser machine and we are familiar with the laser machine!
For further information,please feel free to contact me!
