Home > Products > Special Laser Machines > Maquina de Grabado de Madera

Maquina de Grabado de Madera

Name: Maquina de Grabado de Madera
Brand: suke
Availability: InStock

FOB Price

US$ 2,500 - 3,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Place of Origin	Shandong, China	Brand Name	suke
Model Number	sk1610	Voltage	110-220v
Certification	CE FDA	Warranty	1 YEAR
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

maquina de grabado de madera
1.CO2 laser tube
2.high speed and precision
3.wide application
4.CE FDA certificat

maquina de grabado de madera

Features:

1) 40w/60w/80w laser tube for your choice. Able to engrave and cut most non-metal materials.

2) Water cooling system (water pump / water chiller), cools and protects the laser tube.

3) Air pump, protects the material being engraved/cut from fire and helps to get better effect.

4) Exhaust fan and pipes, remove dust and smoke to protect optical parts and the user.

5) Aluminum blade table, holds hard sheet materials. Optional tables: honeycomb table, up/down lifting table.

6) Leetro USB controller system. Machine is able to work without connecting to a computer.

7)Imported lens and mirrors, brings high engraving and cutting precision.

8) Linear rails from Taiwan, more stable and precise.

9) English Lasercut 5.3 software.

10) Options: red dot, up/down lifting table, honeycomb table, rotary, etc.

Technical parameter:

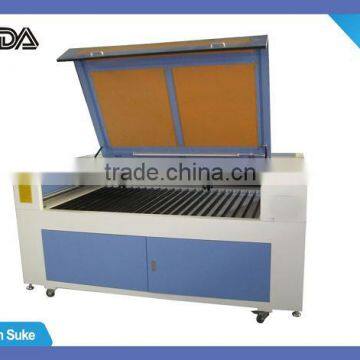

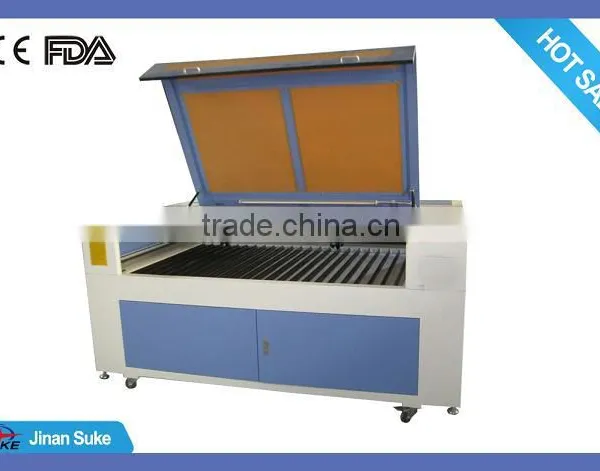

Model	Laser engraving machine SK1610
Working area	1600*1000mm
Laser tube power	60w,80w,100w,130w,150w(can be optional)
laser style	Sealed CO2 laser tube, water-cooling, 10.6um
Working life of tube	1500hours
Max Engraving speed	0 - 60,000mm/min
Cutting speed	0- 30,000mm/min
Location precison	≤0.01mm
Resetting positioning accuracy	0.01mm
Resolution ratio	≤4000 dpi
Laser tuber cooling	Water cooling
Power supply	AC 110 - 220V , 50 - 60Hz
Min. shaping character	Chinese 2mm2mm,English 1mm1mm
Supported graphic	BMP, HPGL, PLT, DST, DXP, and AI
Driving system	Stepper motor
360° slope engrave	Yes
Cooling system	Water-cooling and protection system
Operating system	Windows98/7/2000/XP/VISTA/2007

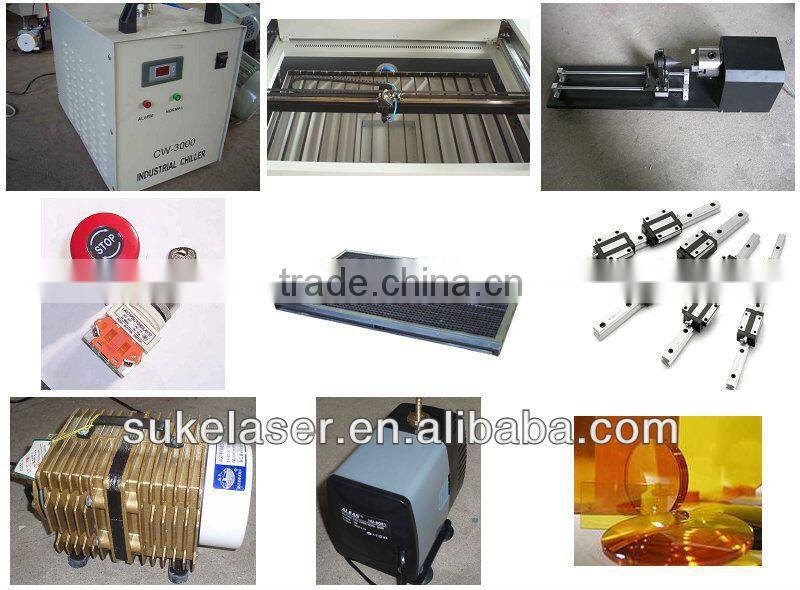

Standard accessories	(01)laser engraving cutting software --laser cut 5.3(English version) (02)User manual of machine(English version) (03) User manual of software (04)USB cable (05)communication cable (06) air exhaust fan (07)air pump (08)3 reflecting mirrors (has been installed in the machine) (9)one focus lens(has been installed in the machine ) (10)one laser tube(has been installed in the machine) (11) tool box that you need to repair or maintenance (12) USB port LED panel(has been installed in the machine)
Optional parts	(1) extra laser tube (2) motorized up and down platform (3) rotary attachment (4) red dot printer (5) industrial chiller cw5000 (6) auto focus (7) 3 layer filter (8) CCD camera (9) double laser head (10) auto feeding system
Software supported	CorelDraw, AutoCAD , Photo shop
Operating temperature	0°C~45°C
Operating humidity	5%~95%
Gross power	≤1500w
Computer interface	USB port and Standard printer port
English manual	Tell you how to run the laser machine and also the problems and solutions

Spare parts:

Warranty terms:

1. 1 year for the whole machine

2. 3 months for laser tuber,lens and mirror

3. 6 months for equipments outfit, such as water pump, fan, air pump,ect

We also have other size machines.

If you have any question,please feel free to contact with me,I'll reply asap,your enquiry is much appreciated! skype:sukelaser3
