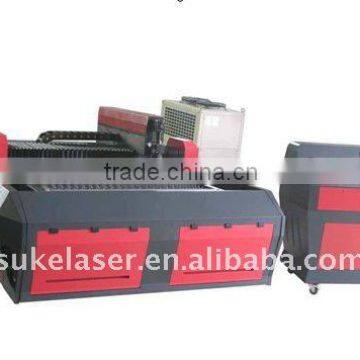

YAG Metal Laser Cutting Machine(CE)

Specifications

YAG metal laser cutting machine(CE)

Features:

1. The product adopts YAG solid-state laser optical system. The optical mode is scientific and good. Anyway, the cut kerfs are very small and precision.

2. It adopts dual rails positioning system and ball screw driven system. The machine has the advantages of fast speed, high precision, moving smoothly, dynamic performance and long life.

3. X-axis and Y-axis are both equipped with limited switches that used to prevent the crash caused by the over travel. Anyway, there are polyurethane anti-collision blocks on the machine in case of the failure of the limited switches. The limited switches and the blocks guaranteed the operating security.

4 With the automatic programming system, the graphic files can be changed into job program directly. It has the features such as compact structure,easy operation, stable optical path and unique functions and so on.

Technical parameters:

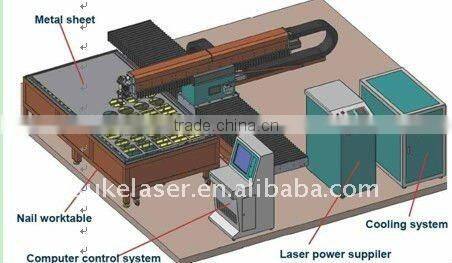

Samples of machine:(center technical )

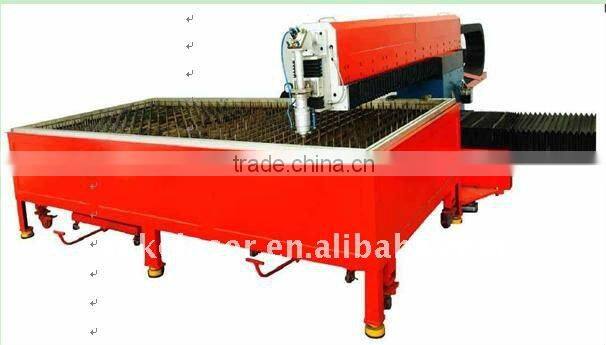

1.   Laser optical system is stable moving follow the cantilever body, after thousands of vibration experiments, laser optical system is stable and unchanged

2.  Moving the wortable for more cutting functions

3.   The cutting head moves follow the machine, so it is pour machine guid and with high stable for avoiding interference.

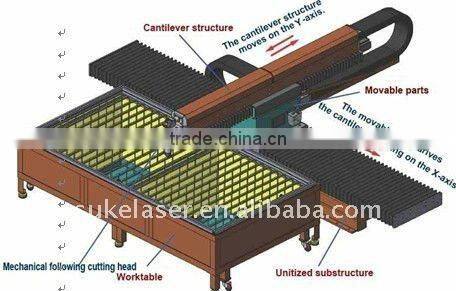

1.  The body of the laser cutter is high-strength aluminum alloy plate, which are light weight, high precision and resistance to deformation.

2.  The laser parts including mechanical following cutting head and optical system. The optical system adopts German technology, which integrates the mechanical following optical path and laser optical path as an integral and independent part.  The key technology of the cantilever moving solid laser cutting machine is the stable of the optical system.. But we have solved it successfully.

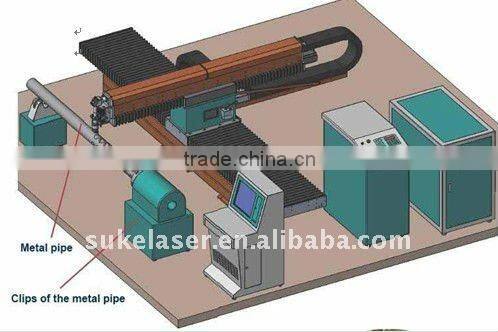

It is applied to cut stainless steel;, carbon steel ,alloy steel,spring steel, aluminum.silver,cooper,titanium and some metal plate and pipe.

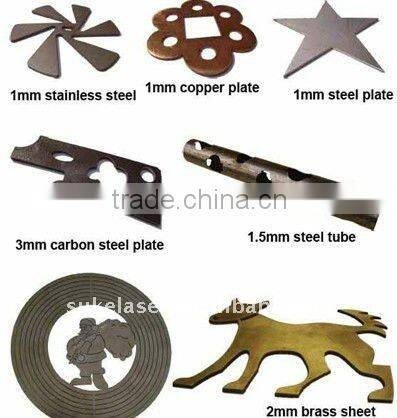

Samples:

The machine widely used in sheet-metal structure,high-low viltage electrical cabinet production, hardware,knife-volume, production of advertising signs,metal,crafts, decoration aviation, mechanical parts,electrical meter, saw blades spring -chip and other industries.

Please contact with me directly if any interested or needs.Thanks!
