XYD-130 crawler mounted water well drilling rig Introduction:
XYD-130 crawler mounted water well drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes and other drilling operations.
XYD-130 type: track-mounted rig, trailer mounted rig
Drill Rigs Features:
1.easy operation
2.lightweight to move
3.reasonable price
4.good service
Technological Data of XYD-130 crawler mounted water well drilling rig:
Unity machine parameter
Drilling depth 130m
End hole caliber 75mm
Max open hole caliber 260mm
Drilling rod caliber 50mm
Drilling angle 90°~65 °
Spindle
Spindle speed 142,285,570 r/min
Spindle stroke 450mm
Winch
Max lifting capacity with single rope 960kg
Lifting speed with single rope 0.41, 0.82, 1.64m/s
Wire rope caliber 13mm
Wire rope cubic measure 27m
Mud pump
Type horizontal single cylinder double acting
Displacement 95/77L/min
Work pressure 0.7Mpa
Water inlet caliber 30mm
Water to exit caliber 25mm

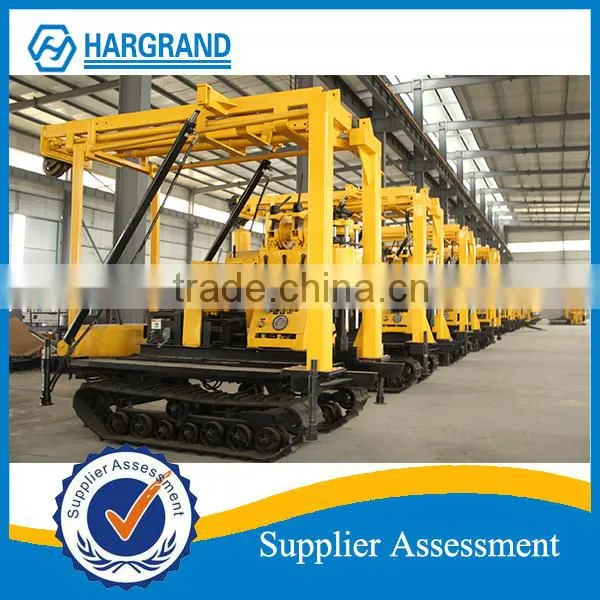

Drill rigs Factory:
XYD-130 crawler mounted water well drill rig ware house:
XYD-130 crawler mounted water well drill rig customer:
Quality Drill rigs Manufacturer In China -FAQ
Payment terms:100% by TT ,
Delivery time:10 days after deposit
Supply ability:1000 pcs per month.
If you want to get more information,please contact me.
Name:Eric Qin
Skype id: hargrand163
