Portable water well drilling machine, rotary drilling rigs for 200m

XYX-2 core drilling rig Introduction:

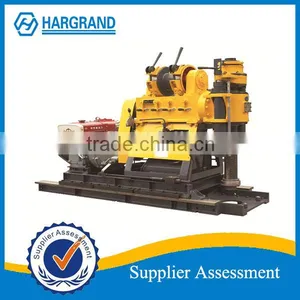

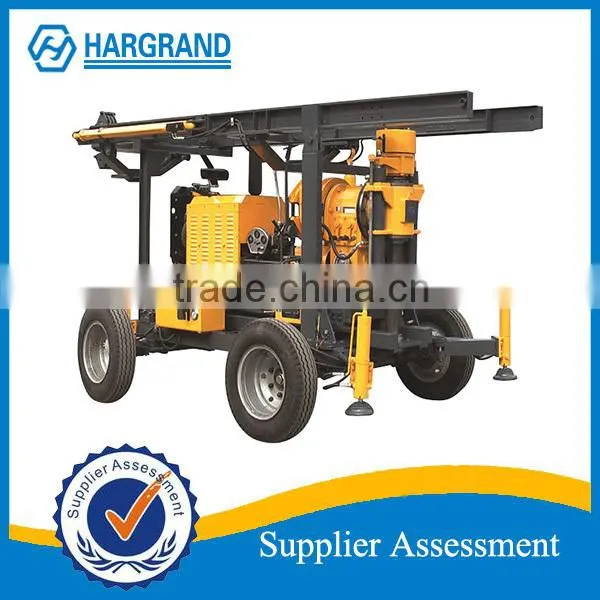

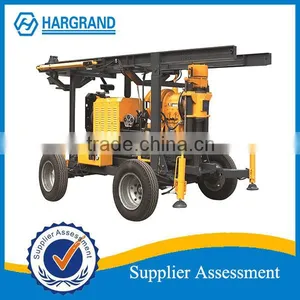

XYX-2 is equipped drag and drop function drilling rig, which can be powered by diesel engine or electric motor. Drilling rig is mounted four wheels trailer and easy to move.

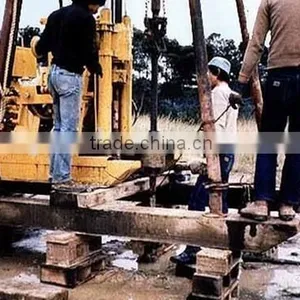

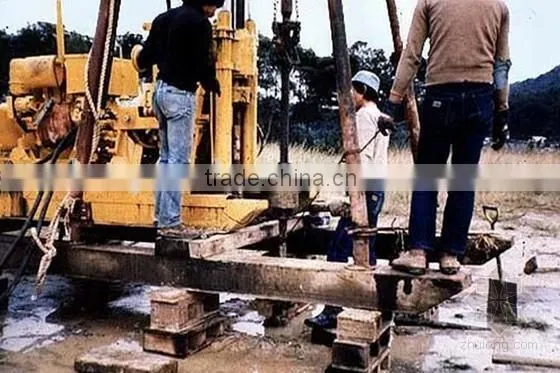

It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be uses in exploring drilling and base or pile hole drilling.

Main Features:

(1) compact size and light in weight of mechanical transmission, major diameter of vertical shaft, long distance of support span and good rigidity, hexagonal Kelly ensure the torque transfer.

Technological Data of   XYX-2 core drilling rig :

1.Fundamental parameters

Drilling depth                                                               76mm                              300m

                                                                                    219mm                            150m

                                                                                    500mm                            50m

Rod diameter                                                              50, 60mm

Drilling angle                                                               90°

Overall dimension (L x W x H )                                   5000*2200*2300mm

Rig weight                                                                   diesel engine                      4020Kg

2.Rotation & Spindle speed

Co-rotation                                                                 70, 146, 179, 267, 370, 450, 677,1145 r/min

Reverse rotation                                                        62, 157 r/min

Spindle stroke                                                            550mm

Spindle pulling force                                                   68kn

Spindle feeding force                                                 46kn

Maximum output torque                                             2550nm

3.Hoist

Lifting speed                                                              0.64, 1.33, 2.44 m/s

Lifting capacity                                                           25, 15, 7.5 kn

Cable diameter                                                          15mm

Drum diameter                                                          200mm

Brake diameter                                                          350mm

Brake band width                                                      74mm

4. Frame moving device

Frame moving stroke                                                420mm

Distance away from hole                                          300mm

5.Hydraulic oil pump

Type                                                                          CB-25

Rated flow                                                                 40L/min

Rated pressure                                                          8MPA

6.Power unit

Diesel engine                                                             N485Q

Rated power                                                              24.6kw

Rated speed                                                              1800r/min

Electric motor                                                             Y180L-4

Rated power                                                               22kw

Rated speed                                                               1450 r/min

Drill rigs Factory:

  XYX-2 core drilling rig ware house:

   XYX-2 core drilling rig Customer:

Quality Drill rigs Manufacturer In China  -FAQ

Payment terms:100% by TT ,

Delivery time:10 days after deposit

If you want to get more information,please contact me.

Name:Eric Qin

Skype id:hargrand163
