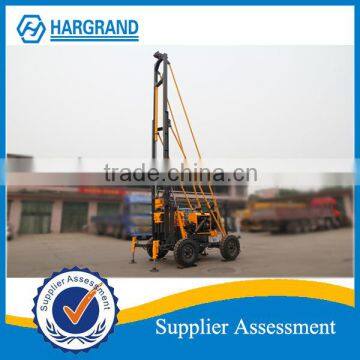

HZ-130YY Small Water Well Drilling Machine for 100m

HZ-130YY Small Water Well Drilling Machine for 100m thumbnail-1
HZ-130YY Small Water Well Drilling Machine for 100m thumbnail-2
HZ-130YY Small Water Well Drilling Machine for 100m thumbnail-3
HZ-130YY Small Water Well Drilling Machine for 100m thumbnail-4
HZ-130YY Small Water Well Drilling Machine for 100m thumbnail-5
HZ-130YY Small Water Well Drilling Machine for 100m photo-1
HZ-130YY Small Water Well Drilling Machine for 100m photo-2
HZ-130YY Small Water Well Drilling Machine for 100m photo-3
HZ-130YY Small Water Well Drilling Machine for 100m photo-4
HZ-130YY Small Water Well Drilling Machine for 100m photo-5
US$ 5,200 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Sanhe Hargrand Drilling Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Beijing, China
Brand Name HARGRAND
Model Number HZ-130YY
Usage Other, geotechnical investigation and surveying
Voltage 220v
Power(W) 12.1kw
Dimension(L*W*H) 1640*1030*1440mm
Weight 510~560kg
Certification ISO-9001
Warranty 6months
After-sales Service Provided Engineers available to service machinery overseas

HZ-130YY water well  drilling rig  Introduction:

HZ-130YY water well drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes and other drilling operations.

HZ-130YY type:    track-mounted rig,    trailer mounted rig



Drill Rigs Features:

rotary drilling rig
1.easy operation
2.lightweight to move
3.reasonable price
4.good service

Technological Data of  HZ-130YY water well drilling rig:



Unity machine parameter



Drilling depth                                                                        130m



Maximum open hole caliber                                                  260mm



End hole caliber                                                                    75mm



Drill rod caliber                                                                     50mm



Drilling angle                                                                        90~75



Drill weight (No include power)                                       510~560kg



Spindle



spindle speed                                                                                           142,285,570r/min



Spindle stroke                                                                                                 450mm



Hoist



Max.single line hoisting capacity                                                               960kg



Single line lifting speed                                                                     0 .41,0.82,1.64m/s



Tightrope caliber                                                                                        27m



Mud pump



Type                                                                                        Horizontal single urn twin-action



Displacement                                                                                           95/77L/min



Diesle engine                                                                                      S1105model 18HP



Electric motor                                                                              Y160M—4 11kw 1440r/min



Maximum pressure                                                                                   1.2Mpa



Work pressure                                                                                           0.7Mpa



Water inlet caliber                                                                                     30mm



Water to exit caliber                                                                                  25mm



Triangle conveyer belt                                                                               B157mm



Drill rigs Factory:





HZ-130YY water well drill rig  ware house:

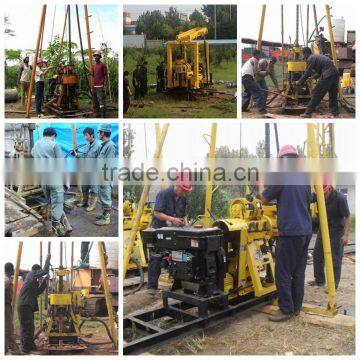

  HZ-130YY water well drill rig  customer:



Quality Drill rigs Manufacturer In China  -FAQ



Payment terms:100% by TT ,



Delivery time:10 days after deposit



Supply ability:1000 pcs per month.







If you want to get more information,please contact me.



Name:Eric Qin



Skype id: hargrand163
