MEDIAN Tunnel Multifunction Rig

MEDIAN Tunnel Multifunction Rig thumbnail-1

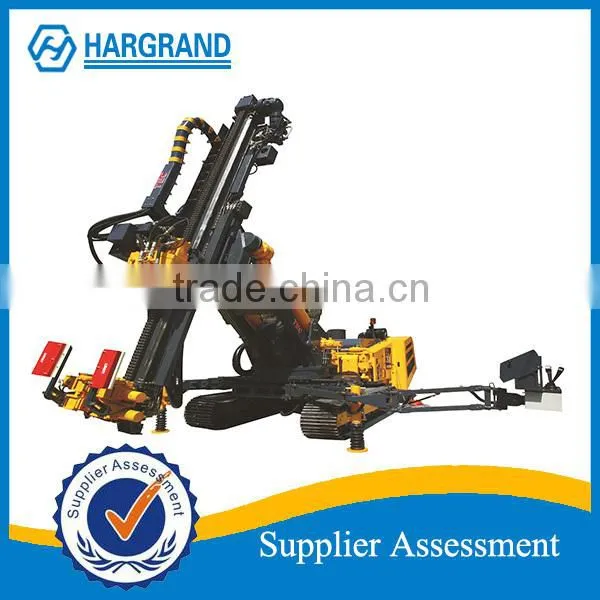

MEDIAN Tunnel Multifunction Rig photo-1
US$ 5,200 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Sanhe Hargrand Drilling Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Beijing, China
Brand Name HARGRAND
Usage Other, geotechnical investigation and surveying
Voltage 220v
Power(W) 12.1kw
Dimension(L*W*H) 6400*2400*3450mm
Weight 16000kg
Certification ISO-9001
Warranty 6months
After-sales Service Provided Engineers available to service machinery overseas

MEDIAN Tunnel Multifunction Rig  Introduction:

MEDIAN is a multipurpose tunnel drilling rig. It is Corporate with France TEC and manufactured a new, full hydraulic and automatic intelligent machine. MEDIAN can be used for tunnel, underground and wide range projects.





Features:



(1) Compact size, suitable for wide range projects



(2) Drilling rod: Level 360 degree, vertical 120 degree / -20 degree, 2650mm adjust range for any angles



(3) Drilling feeding stroke 3600mm, high efficiently



(4) Equipped cramp holder and breaker, full automatic, easy to operate



(5) Easy to locate drilling position, full angle drilling



(6) Hydraulic crawler drive, mobility, wired-remote control, safe and convenient



Technological Data of  MEDIAN Tunnel Multifunction Rig



1. Rig parameters



Drilling depth                                                               50-150m



Drilling diameter                                                          250-110 mm



Drilling angle                                                               full range



2. Overall dimension



Horizon                                                                   6400*2400*3450mm



Vertical                                                                               6300*2400*8100mm



Drilling rig weight                                                               16000kg



Rotation unit (TP1700)                           Rotation speed(r/min)                               torque (nm)



Low speed                                                          0-176                                                 3600



High speed                                                         0-600                                                  900



Low speed                                                          0-87                                                   7200



High speed                                                         0-302                                                 1790



Rotation unit feeding stroke                                               3600nm



3. Feeding system



Rotation lifting force                                                              70kn



Rotation feeding force                                                           60kn



Rotation lifting speed                                                     17-45(m/min)



Rotation feeding speed                                                  17-45(m/min)



4.  Cramp holder



Frame moving stroke                                                420mm



Distance away from hole                                          300mm



5.Hydraulic oil pump



Clamp range                                                            45-255(mm)



Break torque                                                            19000nm



6. Traction



Body Width                                                              2400 mm



Clawer’s width                                                         500 mm



Theory speed                                                          1.7km/h



Rated traction force                                                16 knm



Slope                                                                    35 degree



Max lean angle                                                     20 degree



7. Power



Single         diesel engine             109kw/2150 r/min             Deutz AG 1013C         air cooling



Double       diesel engine              47kw/2300 r/min               Deutz AG 2011           air cooling



                  Electricity motor          90kw/3000 r/min





Drill rigs Factory:





   MEDIAN Tunnel Multifunction Rig ware house:









   MEDIAN Tunnel Multifunction Rig Customer:



Quality Drill rigs Manufacturer In China  -FAQ



Payment terms:100% by TT ,



Delivery time:10 days after deposit



Supply ability:1000 pcs per month.







If you want to get more information,please contact me.
