Leading supplier of Full hydraulic portable core drill rig:
XDQ-1200 hydraulic portable core drill rig
1.Powerful
2.High efficiency
3.Centrailized operation,easy and safety
4.ISO 9001:2008

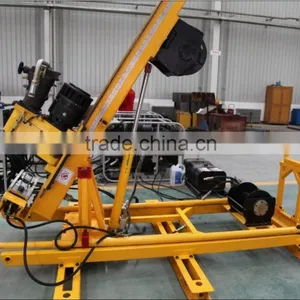

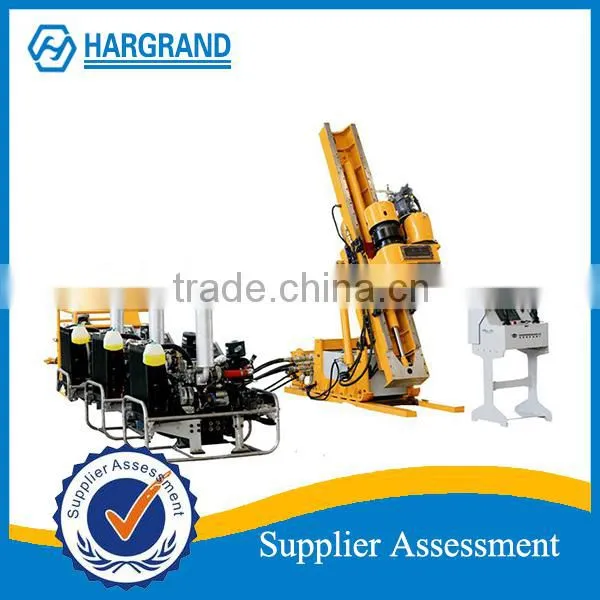

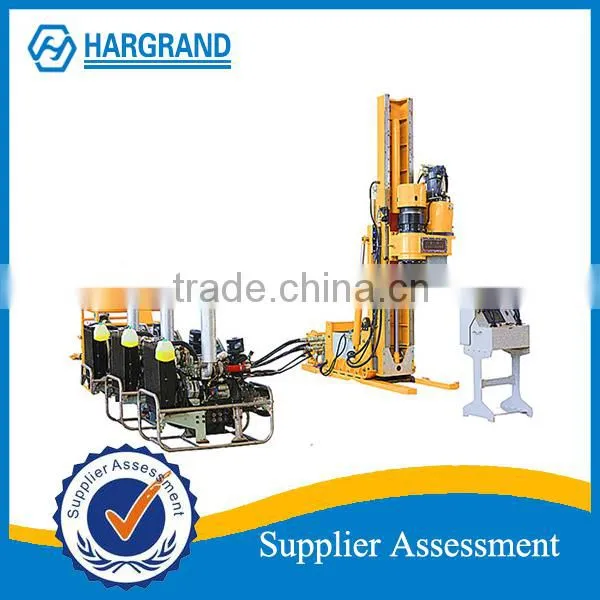

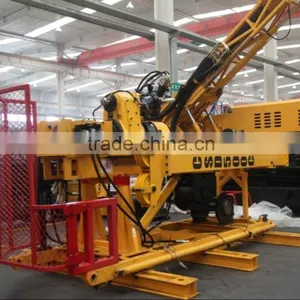

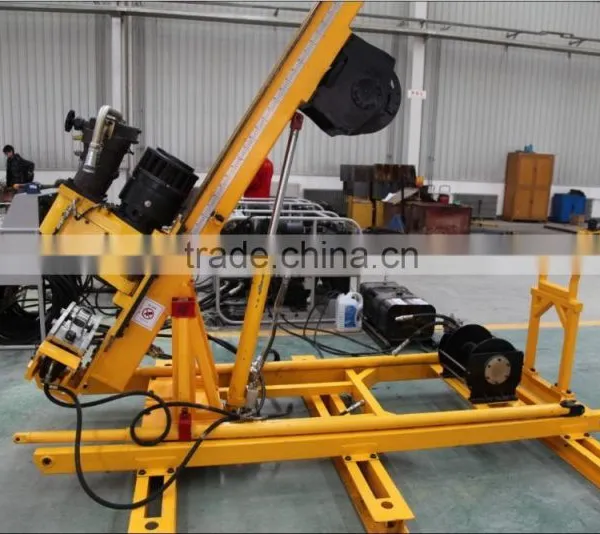

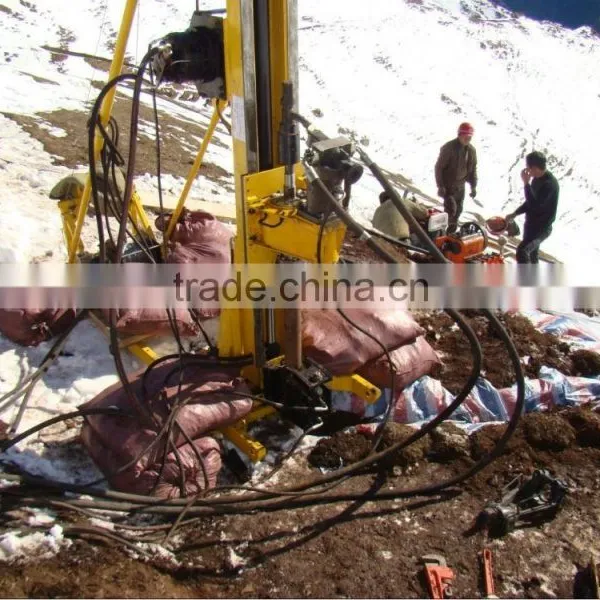

XDQ-1200 Full hydraulic portable core drill rig
Features of XDQ-1200 Full hydraulic portable core drill rig
XDQ-1200 Full hydraulic portable core drill rig for mountain foothills of solid surface Coring operation and design,suitable for diamond rope core and so on the many kinds of drilling process,applicable to the geological,metallurgical,coal,oil,natural gas,groundwater,etc.The whole machine adopts modular design,disassembly,easy installation and relocation,save time and effort.
Full hydraulic portable core drill rig Features:
-Modular design, a single module is not more than 300 kg
-R & D constant pressure control system while drilling, automatically setting constant drilling to improve drilling efficiency, quality assurance down the hole;
-rig hydraulic system main components are imported brands, domestic brands in general component selection, the system is stable, reliable, long life;
-uses electro-hydraulic power head gear shifting mode, continuously variable transmission can be realized in a certain range, and a 4-speed gearbox;
-using direct-acting hydraulic system load feedback to fine-tune the variable power with load changes, high efficiency, and low energy consumption (the system has been successfully applied in various series on my factory rig);
-power head torque, rotating speed, lifting speed, hydraulic systems and diesel engines with monitoring digital devices.
Full hydraulic portable core drill rigTechnical data:
| 1.drilling capacity: | BQ dia. : 55.6mm depth: 1200m | ||
| NQ dia.: 71mm depth: 900m | |||
| HQ dia.: 89mm depth: 600m | |||
| 2.mast/feed system: | Feed stroke: 1.7m | ||
| Feed speed: fast to low, CVT | |||
| thrust: 60kN | |||
| pull: 120kN | |||
| drilling angle: 0-90 degree | |||
| 3.auxiliary winch: | Hollowing Line pull: 12KN | ||
| Full drum pull: 4.5KN | |||
| speed(last layer): 100m/min | |||
| speed(full drum): 270m/min | |||
| rope capacity: 1200m/φ5mm | |||
| 4.power: | brand: Perkins | ||
| model: 403D-15T | |||
| output:30KW | |||
| rotating speed:2600rpm | |||
| After cooled turbo diesel engine | |||
| 5.hydraulic system: | Main pump flow/pressure: 111L/min,28Mpa | ||
| Auxiliary pump flow/pressure: 58L/min, 16Mpa | |||
| 6.drill head: | spindle: φ94mm | ||
| Gear | Rotating speed(rpm) | Max torque(N.m) | |
| 1 | 0-325 | 4300 | |
| 2 | 0-875 | 1600 | |
| 7.hydraulic chuck: | type: spring closed hydraulic opened | ||
| force: 392kN | |||
| 8.overall dimensions: | a. transporting: 3300*1000*1700mm(Approximately) | ||
| b. working: 2600*1000*6400mm(Approximately) | |||
| 9.weight: | 2800Kg(Approximately) | ||
| 10.Rig removable module weight:2495kg | 1.drill head: | ||
| a. Spindle gear box: 300Kg | |||
| b. gearbox: 180 Kg | |||
| 2. Column: | |||
| a. main column: 130Kg | |||
| b. Side column: 80 Kg | |||
| 3. Power head carriage: 55Kg | |||
| 4. Lower bracket: 70Kg | |||
| 5. Holder: 100 Kg | |||
| 6. Base: 70Kg | |||
| 7. Frame: 100Kg | |||
| 8. Rope hoist: 300Kg | |||
| 9. Power unit: 270Kg*3 | |||
| 10. Hydraulic Tank: 200 Kg | |||

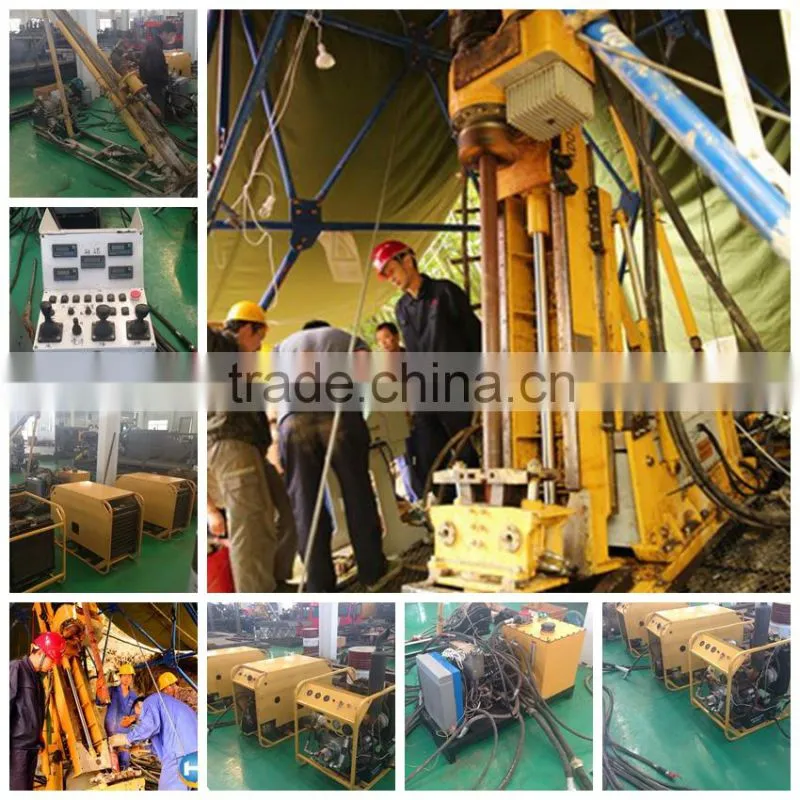

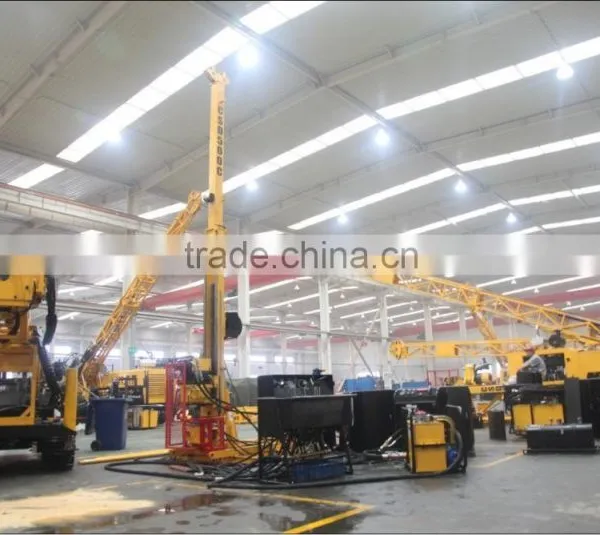

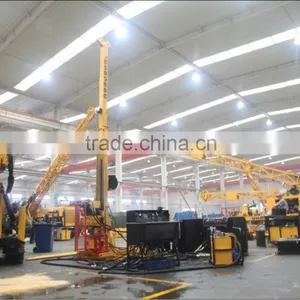

core drill rig factory:
Quality drill rigs Manufacturer In China -FAQ
Payment terms:100% by TT ,
Delivery time:10 days after deposit
Supply ability:1000 pcs per month.
If you want to get more information,please contact me.
Name:Eric Qin
Skype id:hargrand163
