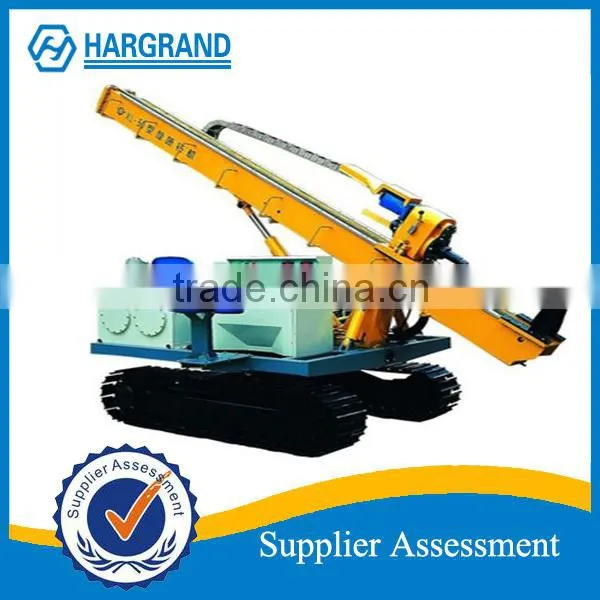

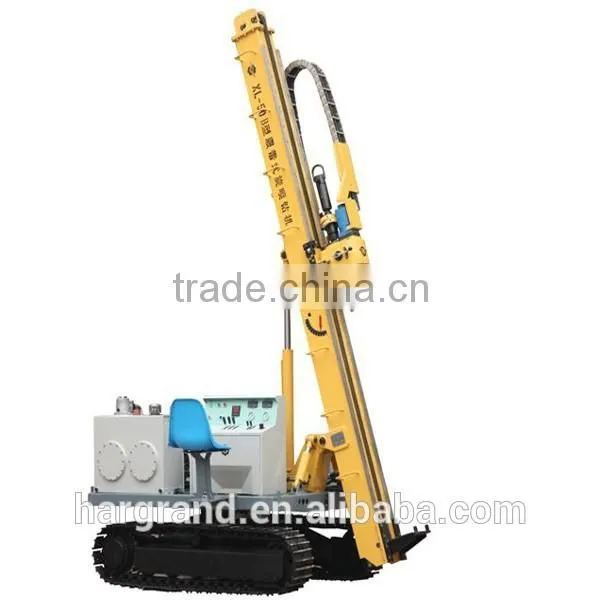

XL-50/50B Track Type Rotating-Jet Drilling Rig (50m)

Name: XL-50/50B Track Type Rotating-Jet Drilling Rig (50m)
Brand: HARGRAND
SKU: 128036653

US$ 35,000 - 45,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Sanhe Hargrand Drilling Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Hebei, China

Brand Name HARGRAND

Model Number XL-50/50B

Usage Ore

Voltage 380

Power(W) 22kw

Dimension(L*W*H) 4600x1800x1780

Weight 2500kg

Certification ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

XL-50/50B Track Type Rotating-Jet Drilling Rig

1.Powerful

2.High efficiency

3.Centrailized operation,easy and safety

4.ISO 9001:2008

Track Type Rotating-Jet drilling rig for slope protection

Features of Track Type Rotating-Jet drilling rig for slope protection

Powerful
Top-drive head driven by hydraulic, stepless speed regulation, high efficiency and low labor intensity
Variable hydraulic system with load feedback, low energy consumoment
First use special valve fixed position by friction, satiable for jet grouting technic
Top-drive head has wide range of rotary speed, meet varying layer and drilling technology
With track chassis, easy and speedy to move
With rotary support
Longer stroke of top-drive head, reduce auxiliary operation time
Compact structure, centralized operation, easy and safety
With display unit for verticality of derrick, rotaring of top-drive head and lift speed

Model		XL-50/50B Track Type Rotating-Jet Drilling Rig
Drillng Depth(m)		50m
Rod Dia(mm)		φ42mm,φ50mm
Drilling angle range		(left and right)±3°;(slope forward)10°;(slope back)90°
Max Torque(N.m)		2000N.m
Moving Speed		1.5km/h 1km/h
Climbing capacity		20°
Rotation speed of top-drive head (r/min)		(high)0~240r/min (low)0~80r/min
Stroke of top-drive head(mm)		3500mm
Rated thrust force of top-drive head(kN)		12 KN
Rated pull force of top-drive head(KN)		30 KN
Fast Lifting abd dtgryst soeed if top-drive head(jetting,m/min)		0.06~0.9/1.8m/min
Lifting and droping speed of top-drive head(m/min)		0~22/0~28m/min
Main Pump Pressure(MPa)		20MPa
Auxiliary pump Pressure(MPa)		20MPa
Power Unit		22kw
Weight(kg)		2500kg
Overall dimensions (LWH,mm)	Working	260018004600
	Moving	460018001780
