Wood cnc router machine with atc1.6kw spindle
2.Janpan YASKAWA servo
3.Taiwan Syntec System
Wood cnc router machine with atc
Product Overview
SK ATC CNC Router series are at the service of High-end customers with high demand in automation, for its application suitable to 24 hours mass production. All the configuration are in high-end configuration for best performance and best quality and efficiency.
Technical Parameter
Model | SK-M25-I | SK-M25-II |
Working area (X,Y,Z mm) | 1300x2500x200 | |
Machine structure | Square tube structure lathe bed and vacuum table | |
Tool Magazine | Line type, 6pcs | Carrousel type, 6pcs |
Working holding | By vacuum | |
Overall Dimensions (mm) | 3300*2250*2000 | |
Precision (mm) | 0.07 | |
Positioning accuracy(mm) | 0.02 | |
Repeatability(mm) | 0.02 | |
Idling Speed(mm/min) | 30,000 | |
Working Speed (mm/min) | 20,000 | |
Spindle | 6kw water cooling (0~24000rpm) | |
Available Tools (mm) | Diameter 3.175-12.7mm | |
Drive system | Japanese YASKAWA Servo System | |
Working Voltage | AC380V±30V,50HZ | |
Command code | G code (*.NC,mmg,*.u00,etc)*.eng | |
Control System | Taiwan Syntec System | |
Compatible Software | Compatible with any softare generating G code file in Windows 98/XP/7 | |
Product Feature
1.Heavy-duty thick-walled square tube lathe in good rigidity, is capable of lar ge workload, maintaining solid shape and non-deformed.
2. High-end CNC control system from Taiwan, automated intelligent control on function , such as work area protection, processing cross-border protection, auto working speed. Off-line operation of multiple levels of 3d processing is capable.
3. Advanced documents pre-processing functions ensures speed and accuracy of operation.
4. Control panels of 7’ LCD, multi-partition keyboard provide convenience and independence for user.
5.Automatic tool changer saves time for manual tool changing to improve efficiency.
6.Servo system from Japan is the core of drive system, with a large torque and complete security system.
Sample Display

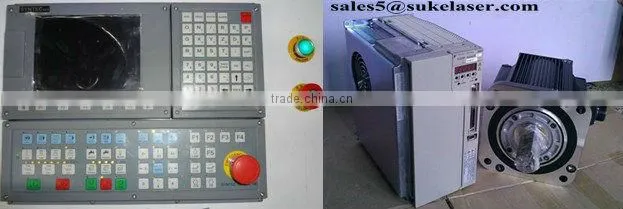

Spare part

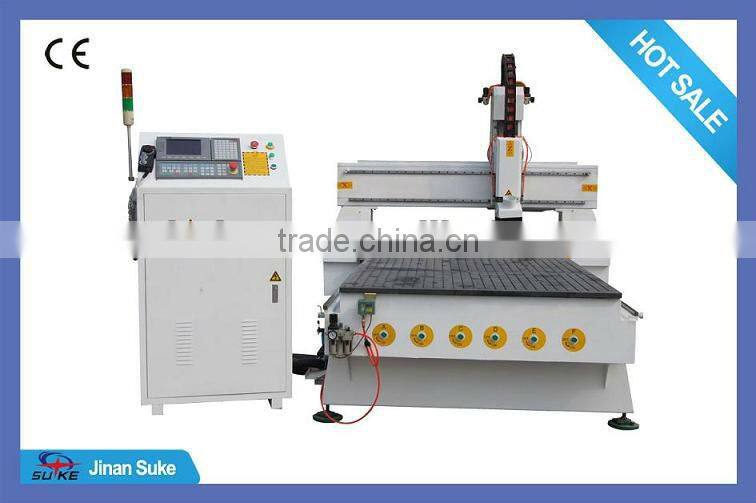

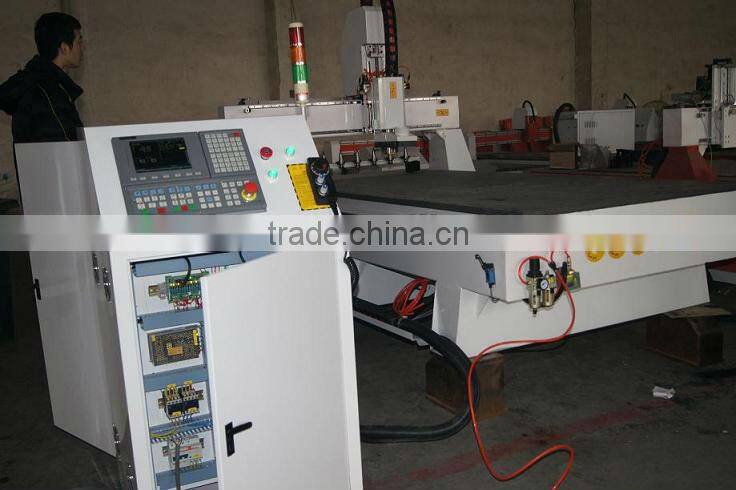

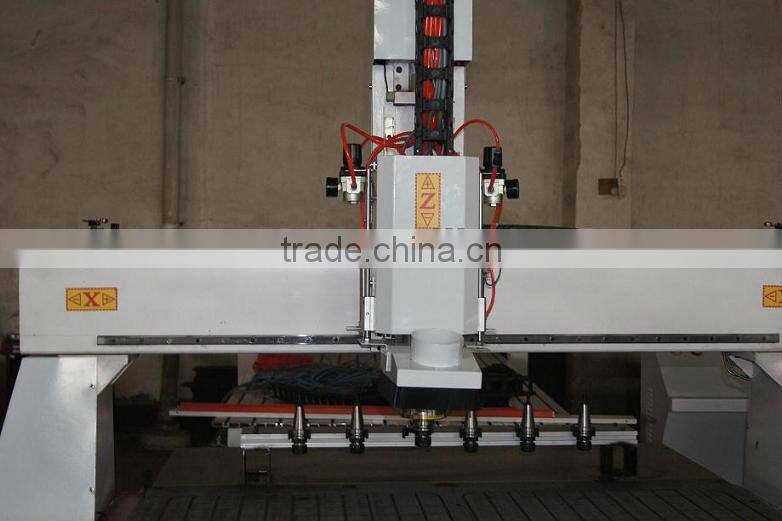

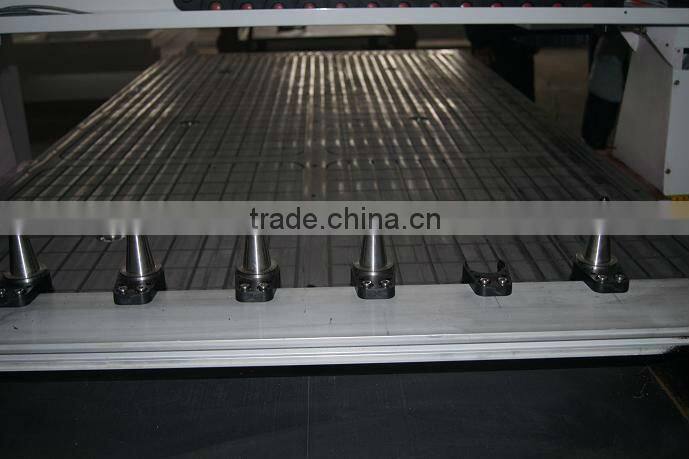

Machine photos
Scope of application:
Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
Furniture Decoration Industry: a large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors curving.
Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
Electronic Industry: Circuit board, insulation materials, LED display screen.
